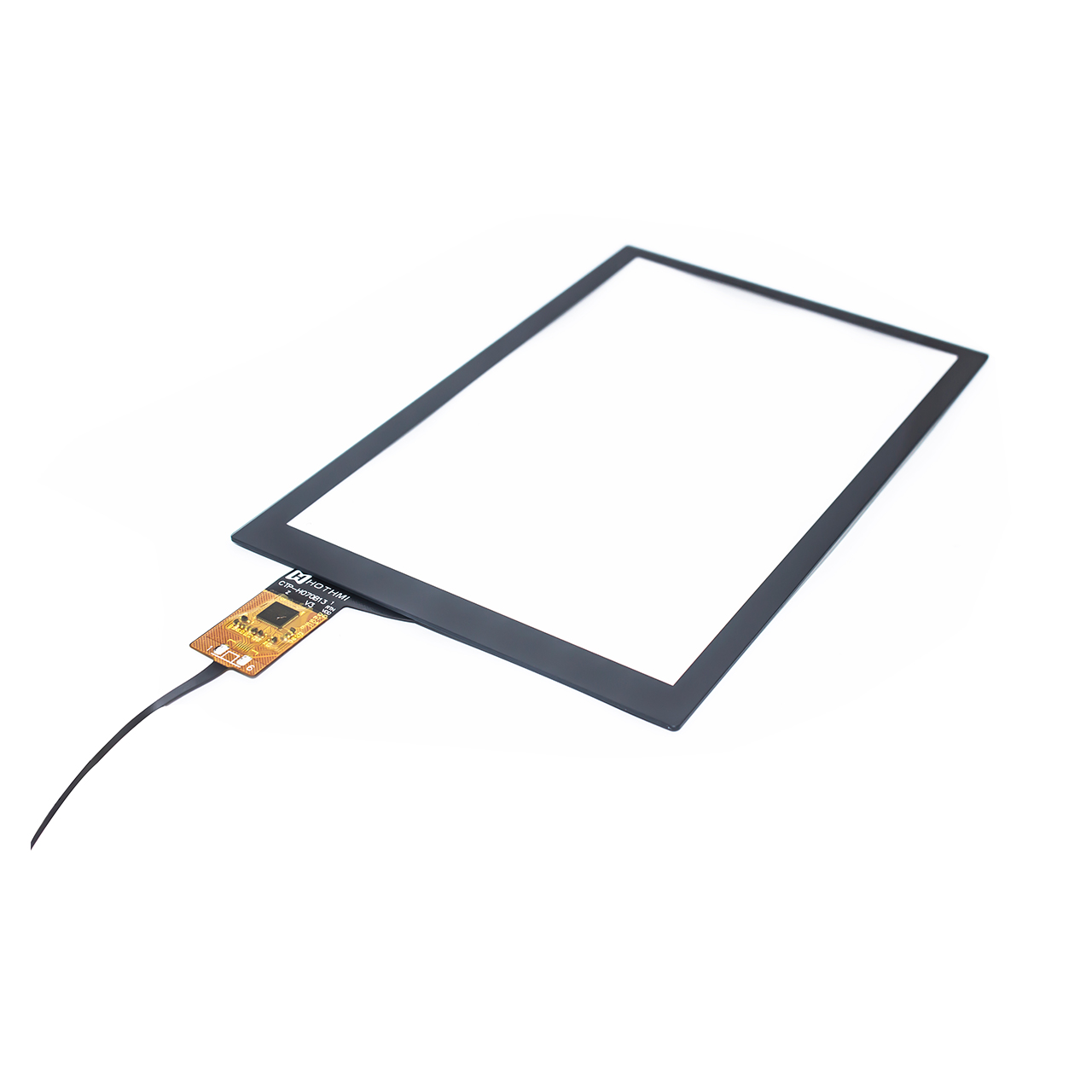

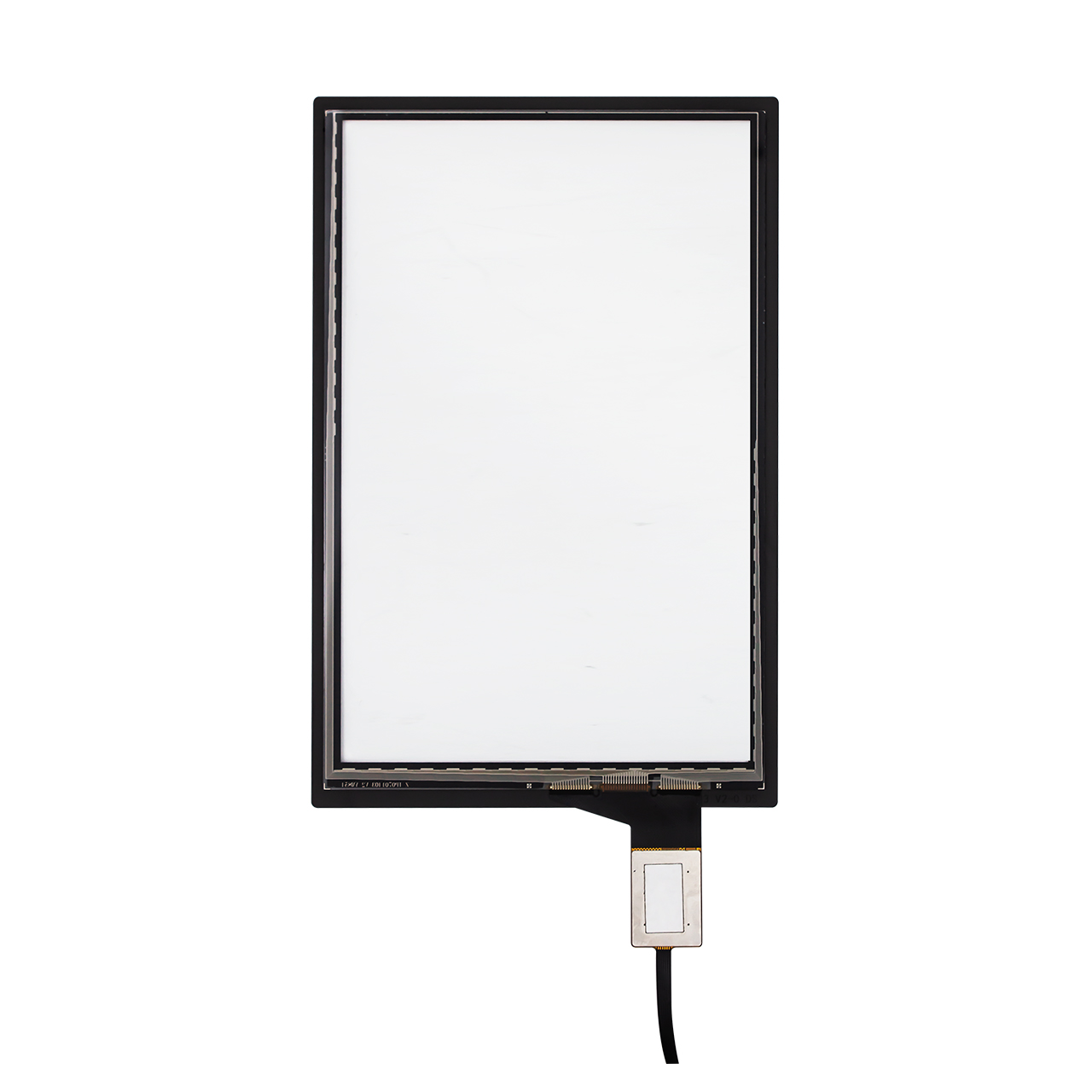

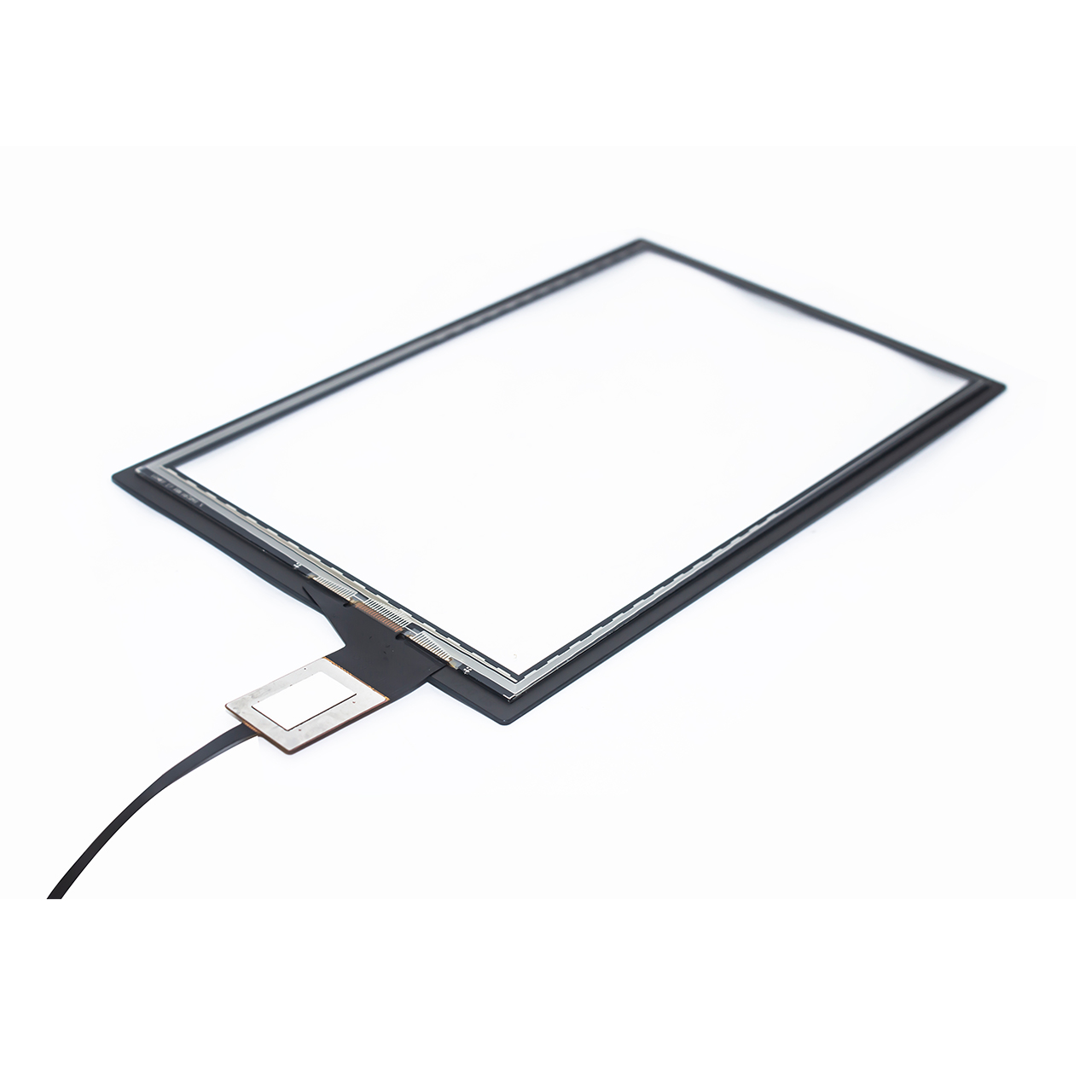

  • CTP-H070B13 | 7-inch Capacitive Touch Panel- I2C Interface-GT9271

    Discover the superior adaptability and performance of our 7-inch capacitive touch panel, engineered to meet the demands of modern interactive devices. This high-quality 7-inch capacitive touch panel is designed with a focus on seamless installation, robust construction, and reliable operation, making it an ideal solution for industrial, commercial, and embedded applications.

    A standout feature of this 7-inch capacitive touch panel is its fully customizable ultra-long FFC flex cable. This tailored cable length provides exceptional flexibility during integration, allowing easy routing within various device architectures. It significantly simplifies both initial installation and subsequent maintenance, ensuring the 7-inch capacitive touch panel can be effortlessly fitted or removed without complicated disassembly, reducing downtime and service costs.


    Built with a Glass + Glass (G+G) structure, this 7-inch capacitive touch panel delivers outstanding durability and optical performance. The dual-layer glass construction offers superior surface hardness and excellent resistance to scratches, impacts, and daily wear. It also ensures high light transmittance for vibrant display clarity, making the 7-inch capacitive touch panel both tough and visually crisp in continuous use.

    Driven by the advanced GT9271 control chip, this 7-inch capacitive touch panel supports precise and fluid 5-point multi-touch interaction. The chip enhances touch accuracy, improves signal stability, and offers low power consumption—key advantages that ensure the 7-inch capacitive touch panel performs reliably across different environments and usage scenarios.


    The inclusion of a standard 6-pin FFC connector further emphasizes user convenience. This plug-and-play interface allows quick, secure connections, facilitating easy installation or replacement of the 7-inch capacitive touch panel without specialized tools.

    In summary, whether for control systems, portable devices, kiosks, or smart equipment, this versatile 7-inch capacitive touch panel combines rugged design, intelligent electronics, and installation-friendly features to provide a dependable and efficient touch solution.

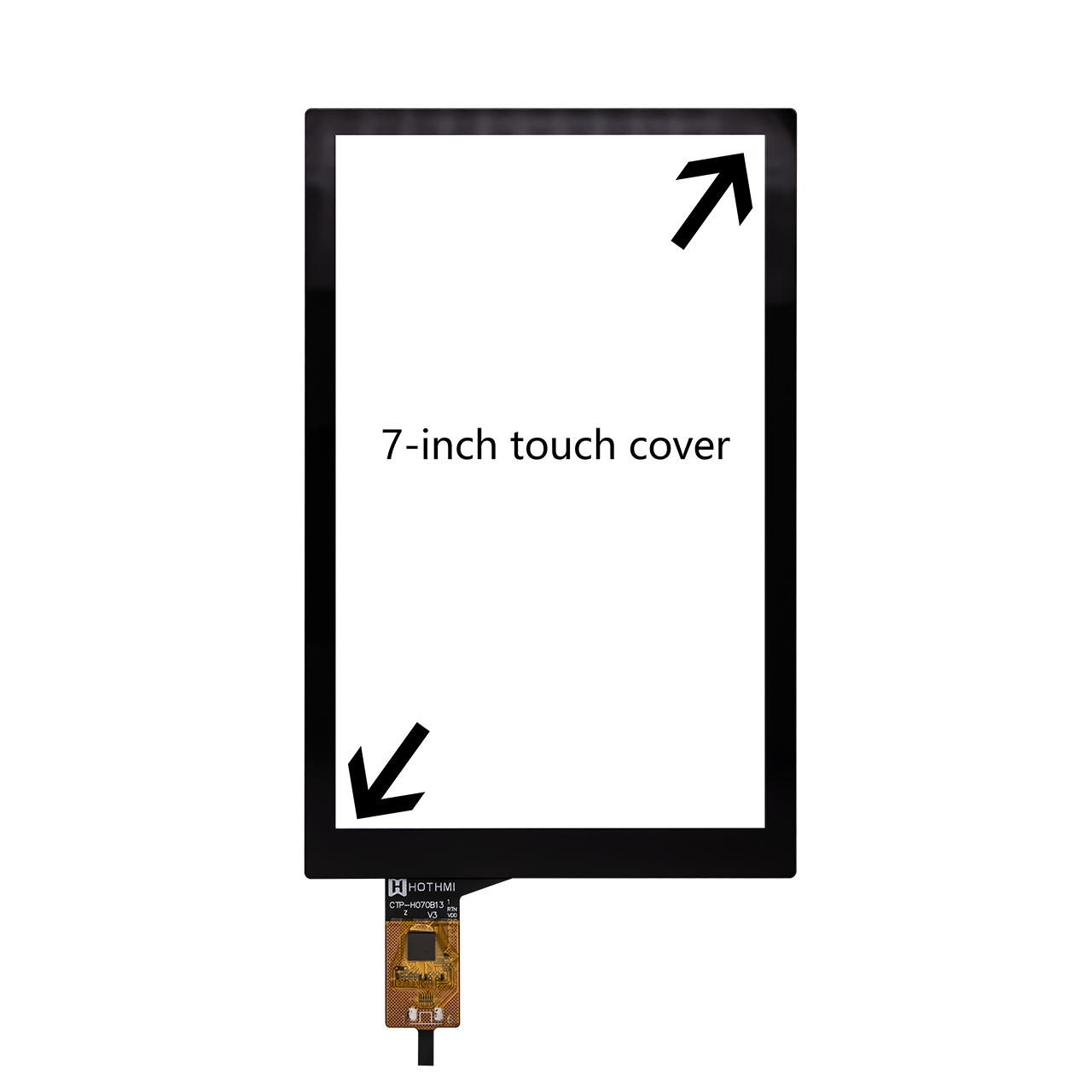

  • Customized material: Customized touch cover of various materials: such as tempered glass (up to 7H), acrylic material, etc.

    Customized special-shaped contour: Support special-shaped cutting/opening/edging (2.5D, 3D)/transmittance.

    Cover color and logo silk screen customization: Supports silk screen printing in different colors (usually black or white); supports silk screen printing of logos in multiple colors.

    Customized cover thickness:  0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0(mm)etc.

    Customized different transmittance: High light transmission efficiency, which directly affects the visual effect of the touch screen.

    Opening service:  Through holes with a diameter of ≤10mm can be opened.

    Cover surface treatment:  Optional touch screen surface treatment methods are available: AG anti-glare/AR anti-reflection/AF anti-fingerprint.

  • ITEM

    Parameter description

    Unit

    CTP model

    CTP-H070B13


    Viewing window size (mm)

    94.8x151.32

    Mm

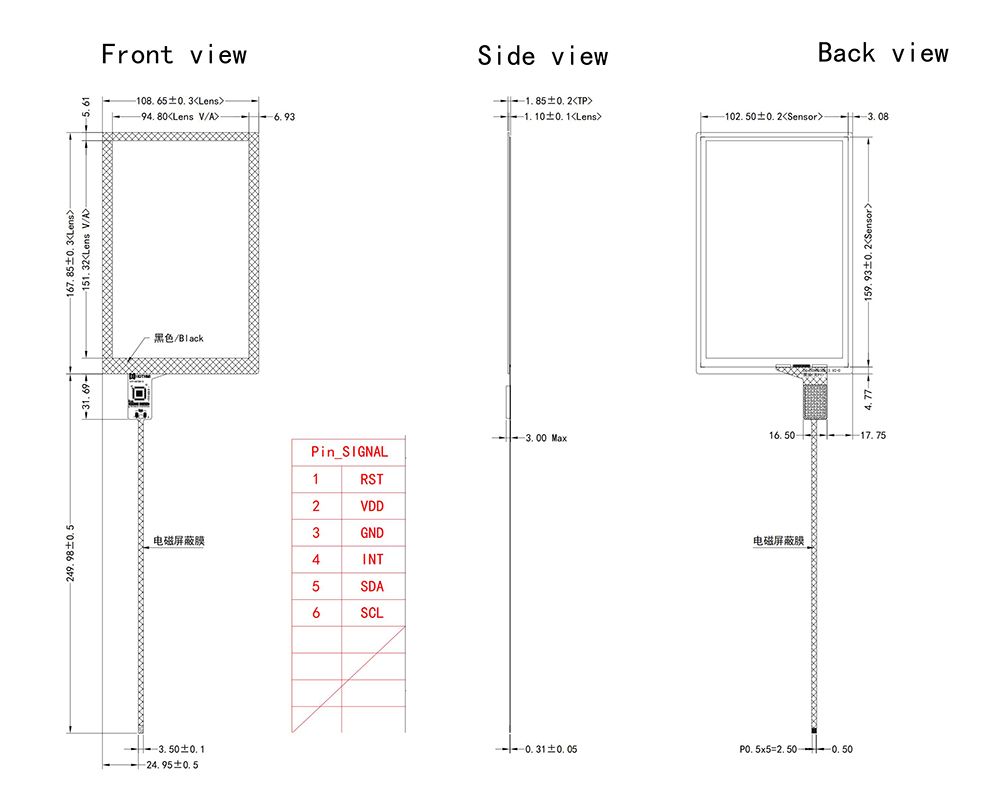

    Appearance size (mm)

    108.65 x 167.85 x 1.85

          mm

    Driver chip

    GT9271


    Structure

    G+G


    Interface

    I2C


    Cover shape

    aTouch


    Connection method

    6 PIN FPC plug


    Surface hardness

     H6


    Transmittance

    ≥83%


    Operating voltage

    +3.3V

    V

    Operating temperature

    -20℃ ~ 70℃
