7-inch tft lcd module LVDS Interface With Touch Panel

7-inch tft lcd module LVDS Interface With Touch Panel

▶ Model: HTM-H070B26 -LVDS-A01C

▶ Type: 7-inch TFT LCD Module
▶ Display Pixels: 1024x600

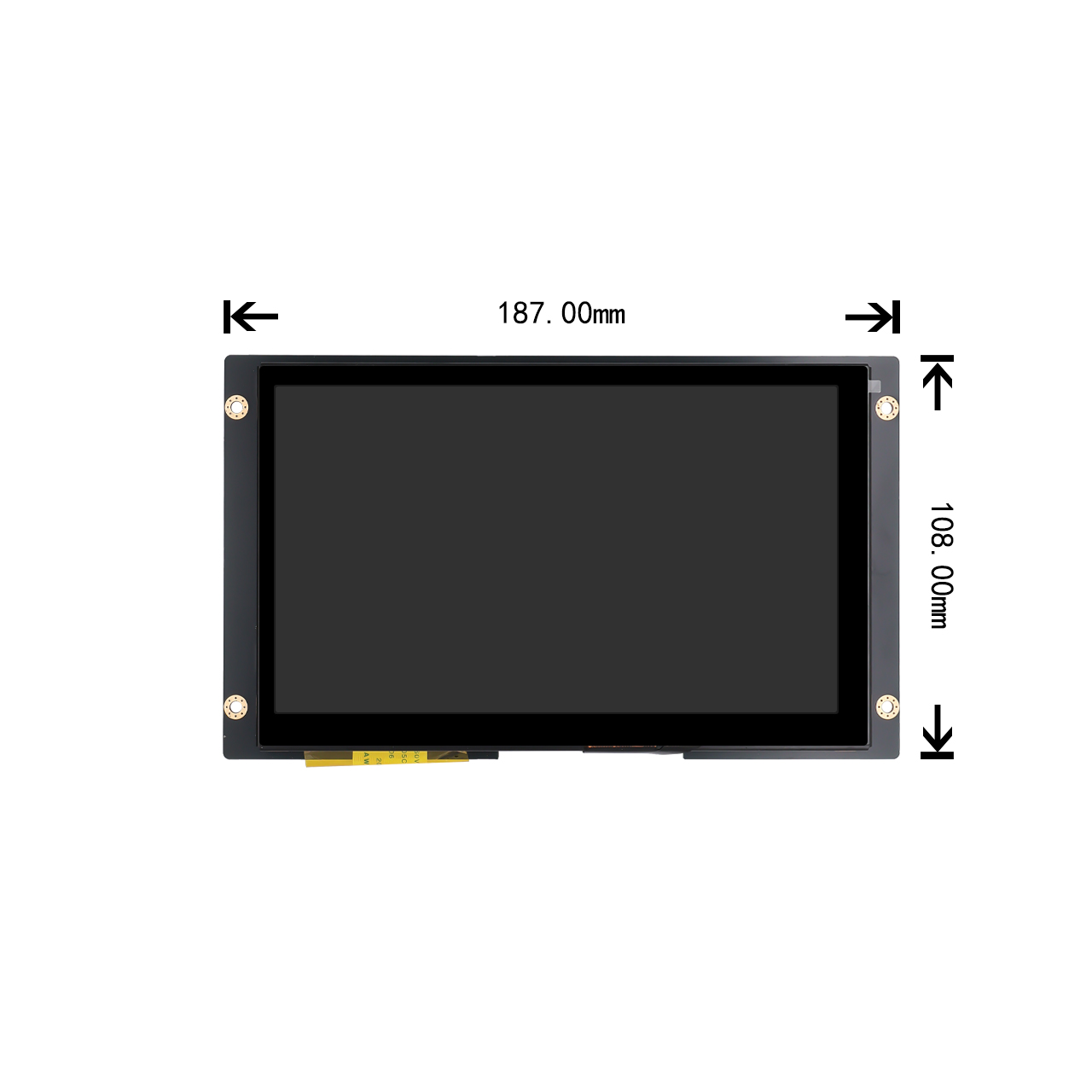

▶ Dimensions: 187.0x108.0x12.6 mm
▶ AA Dimensions (mm): 154.214x85.92 mm
▶ Display Inches: 7.0 mm
▶ Application: Central Control System
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 800 cd/m²
▶ Pinout: FPC-30 pin
▶ Interface: LVDS
▶ Special Notes: ESD Protection 8KV
▶ Operating Temperature: -20~70℃
▶ Power Supply Voltage: 3.3V
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

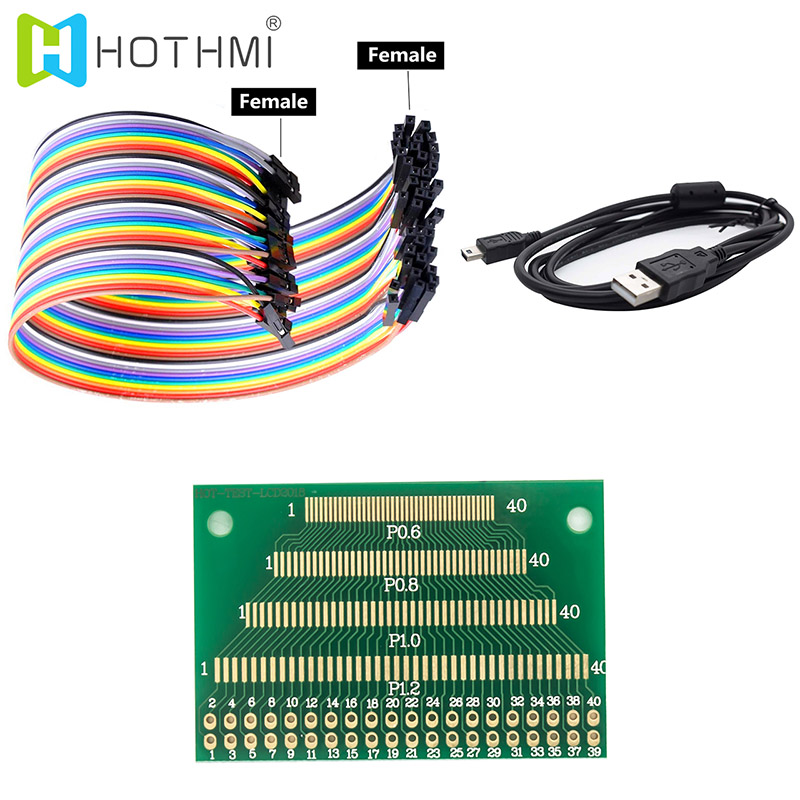

TFT universal accessories
ESP32-P4 Motherboard For RGB LCD Display

Product Description
Customized Services
Attributes

HTM-H070B26 -LVDS-A01C 7-inch tft lcd module LVDS Interface With Touch Panel
This advanced 7-inch TFT LCD Module is engineered to deliver exceptional visual performance, featuring an outstanding ultra-high brightness of over 800 cd/m². This remarkable luminance ensures that the display remains sharp and fully readable even under direct sunlight, making it an ideal solution for outdoor industrial equipment, kiosks, and automotive applications. As a robust 7-inch TFT LCD Module, it guarantees vivid imagery and superior clarity in the most demanding lighting environments.
Integrated with a precise capacitive touch panel, this 7-inch TFT LCD Module offers a responsive and intuitive user interface. The touch functionality supports multi-touch gestures, providing a smooth and interactive experience similar to modern consumer electronics. This combination of high-brightness display and sensitive touch technology makes this 7-inch TFT LCD Module a versatile choice for interactive systems.
Designed for seamless integration, this 7-inch TFT LCD Module utilizes an LVDS interface, ensuring high-speed data transmission and excellent signal integrity. Whether deployed in marine navigation, medical devices, or outdoor digital signage, this 7-inch TFT LCD Module delivers consistent, reliable performance. Its durable construction and optical bonding options (if applicable) further enhance sunlight readability and impact resistance. Choose this premier 7-inch TFT LCD Module for your next project where clarity, durability, and interactivity are paramount.

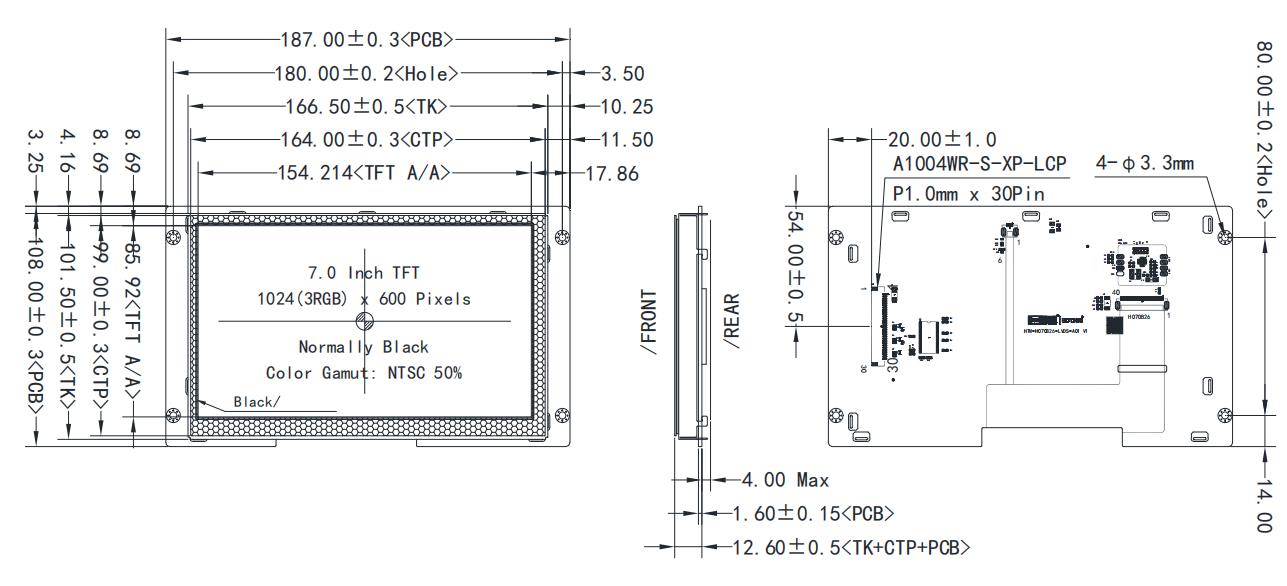

Specification of the 7-inch tft lcd module

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H070B26-LVDS-A01C	March 03, 2026	1.64MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H070B26 -LVDS-A01C
Diagonal size	7.0”	Inch
Resolution	1024x600	Dot
Dimensions	187.0x108.0x12.6	mm
Active area (AA)	154.214x85.92	mm
LCD type	7” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	3：2
Backlight type	LED white
TFT driver IC	——
Brightness	800cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
