5-inch Touchscreen With IIC USB Interface ILI2511

5-inch Touchscreen With IIC USB Interface ILI2511

The 5-inch touchscreen is a high-performance capacitive touch panel engineered for seamless integration with TFT LCD displays. Designed for applications requiring reliable and responsive user interaction, this 5-inch touchscreen leverages advanced materials and a sophisticated control IC to deliver an exceptional experience.

At the heart of this 5-inch touchscreen is the advanced ILI2511 control chip. This chip is specifically chosen for its superior touch processing capabilities, enabling true multi-touch functionality with high accuracy and fast response times. It ensures that every gesture, swipe, and tap is registered smoothly, making the 5-inch touchscreen ideal for modern user interfaces. The ILI2511 also excels in noise immunity, guaranteeing stable performance even in electrically noisy environments, which is a critical advantage for industrial and consumer devices alike.

Built with a robust Glass+Glass (G+G) manufacturing process, this 5-inch touchscreen offers excellent durability. The surface hardness, rated at 6H, provides outstanding resistance to scratches and abrasions, ensuring the 5-inch touchscreen maintains optical clarity and functionality over time. Furthermore, the 5-inch touchscreen features a high light transmittance, which preserves the vibrancy and brightness of the underlying TFT display.

For design flexibility, the cover of this 5-inch touchscreen can be fully customized to match specific product aesthetics. The 5-inch touchscreen supports both IIC and USB interfaces, with a standard 6-pin FPC connector for easy and reliable integration into a wide variety of systems. Whether for a handheld device, an industrial control panel, or an IoT interface, this 5-inch touchscreen combines the precision of the ILI2511 chip with rugged construction to provide a premium touch solution.

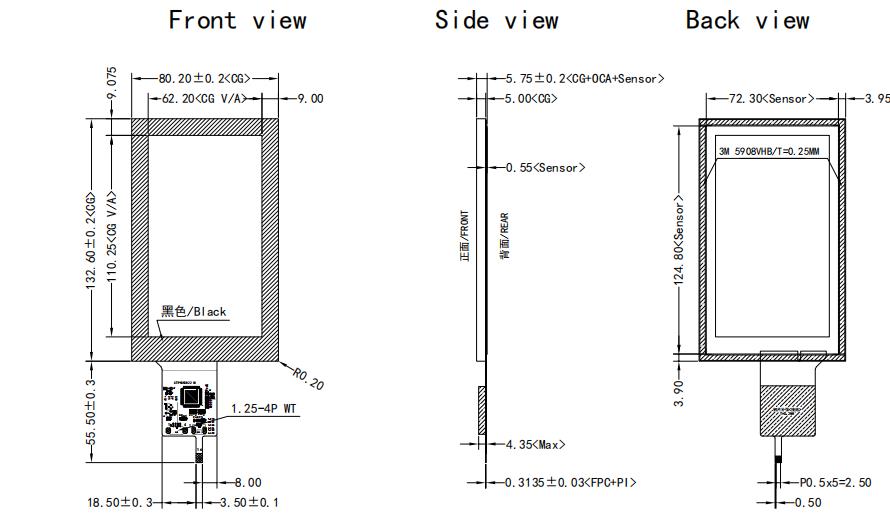

Specification of the 5-inch Touchscreen

Core advantages

• IK08 Explosion-Proof Certification

Certified to international standard IEC 62262 IK08 level, it can withstand 5 Joules of impact energy**, equivalent to the impact force of a 0.5kg steel ball dropped from a height of 0.3 meters. Provides reliable protection in high-risk impact environments such as industrial handheld devices, outdoor inspection instruments, and public facilities, effectively reducing the risk of equipment failure due to screen breakage.

• Thickened Tempered Glass + G+G Structure

The thickened glass cover uses a physical tempering process, with a surface hardness ≥6H, making it scratch-resistant and wear-resistant. The G+G (Glass-Glass) full-lamination structure effectively reduces light reflection, improving display clarity and touch sensitivity. The thickened design effectively resists accidental impacts and malicious damage, suitable for anti-vandal scenarios.

• High Light Transmittance and Smooth Touch Control

Light transmittance >85%, ensuring a clear and bright display. The smooth glass surface allows for smooth and fluid finger operation and sensitive touch response. The thickened glass, professionally tuned for touch chips and optimized with layered design, ensures both strength and touch performance, supporting multi-touch with 5 points or more to meet complex interaction needs.

• Customizable Surface Treatments: Supports surface treatments such as AG (Anti-Glare), AR (Anti-Reflection), and AF (Anti-Fingerprint). AG treatment is recommended for outdoor use, effectively suppressing strong light reflection and improving readability in sunlight. Customization options include screen-printed logos, black light-blocking borders, and UI icons.

Application Scenarios

• Industrial Handheld Devices: Industrial PDAs, Inspection Terminals, Data Acquisition Devices

• Medical Equipment: Medical PDAs, Monitors, Diagnostic Equipment Touchscreens

• Outdoor Terminals: Outdoor Inspection Instruments, Environmental Monitoring Equipment, Charging Pile Displays

• Public Facilities: Smart Access Control, Self-Service Inquiry Terminals, Ticketing Machines

• Smart Home: Smart Control Panels, Building Intercom Equipment

Customization Services

We offer one-stop customization services from design to mass production:

• Size Customization (covering 5.0 inches and other sizes)

• Glass Thickness Customization

• Surface Treatment Customization (AG Anti-glare / AR Anti-reflective / AF Anti-fingerprint)

• Screen Printing Customization (Logo, Border, UI Icons

• FPC Cable Customization (Interface Type, Pin Definition)

Contact us now for a customized solution for the CTPH050B22 IK08 explosion-proof touch cover!
