4.3-inch Capacitive Touchscreen TFT LCD 480x800 RGB Interface

▶ Model: TFT-H043B32WVIST3C45

▶ Type: 4.3-inch capacitive TFT standard display
▶ Display Pixels: 480x800
▶ Display Inches: 4.3 inches

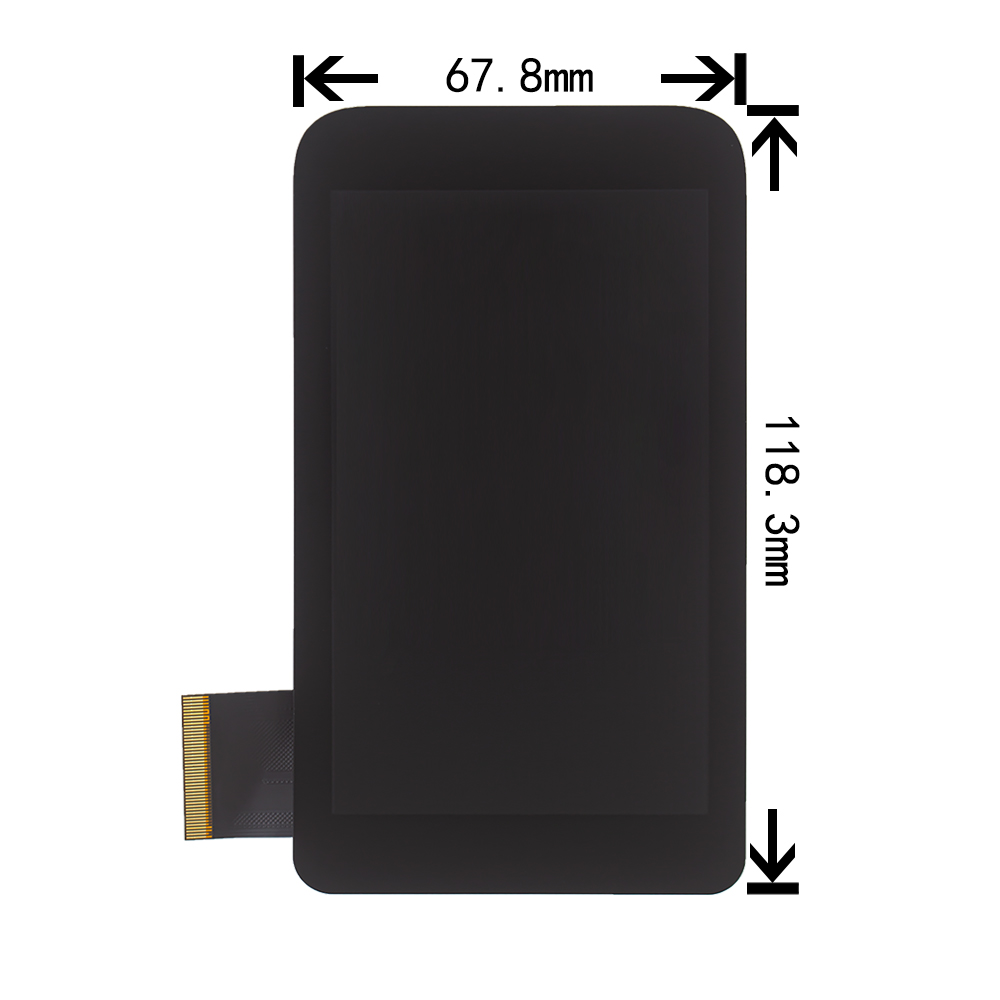

▶ Dimensions: 67.8x118.3x4.2 mm
▶ AA Dimensions (mm): 56.16x93.6 mm
▶ Applications: Instrumentation, Portable Electronic Devices
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 350 cd/m²
▶ Pinout: FPC-45 pin
▶ Interface: RGB
▶ Special Notes: ESD Protection 8KV
▶ Operating Temperature: -20~70℃
▶ Power Supply Voltage: 3.3V
▶ Driver Chip: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

TFT-H043B32WVIST3C45 | 4.3-inch Capacitive Touchscreen TFT LCD 480x800 RGB Interface
This product features a high-performance Capacitive Touchscreen TFT display designed for precision applications such as instrumentation and portable electronic devices. The Capacitive Touchscreen TFT panel is built with a custom glass cover that not only enhances durability but also ensures excellent optical clarity and responsive touch interaction. Each unit is carefully crafted with rounded corners, providing a smooth and aesthetically pleasing design that integrates seamlessly into various device enclosures.
The custom-fit touch cover is engineered to align perfectly with the equipment, creating a flush, unified appearance that emphasizes seamless integration and a modern look. This tailored approach allows the Capacitive Touchscreen TFT to merge smoothly into the end product, delivering a cohesive and high-end visual experience without gaps or misalignment. Users benefit from a sleek, continuous surface that enhances both usability and design consistency.
With an IPS wide-viewing angle and reliable performance across different operating conditions, this Capacitive Touchscreen TFT offers outstanding visual quality and touch accuracy. The customized glass touch panel reinforces structural integrity while supporting sensitive and precise input. Ideal for applications where both appearance and functionality matter, this display solution ensures a harmonious blend of elegant form and reliable performance, making it a versatile choice for advanced electronic systems.

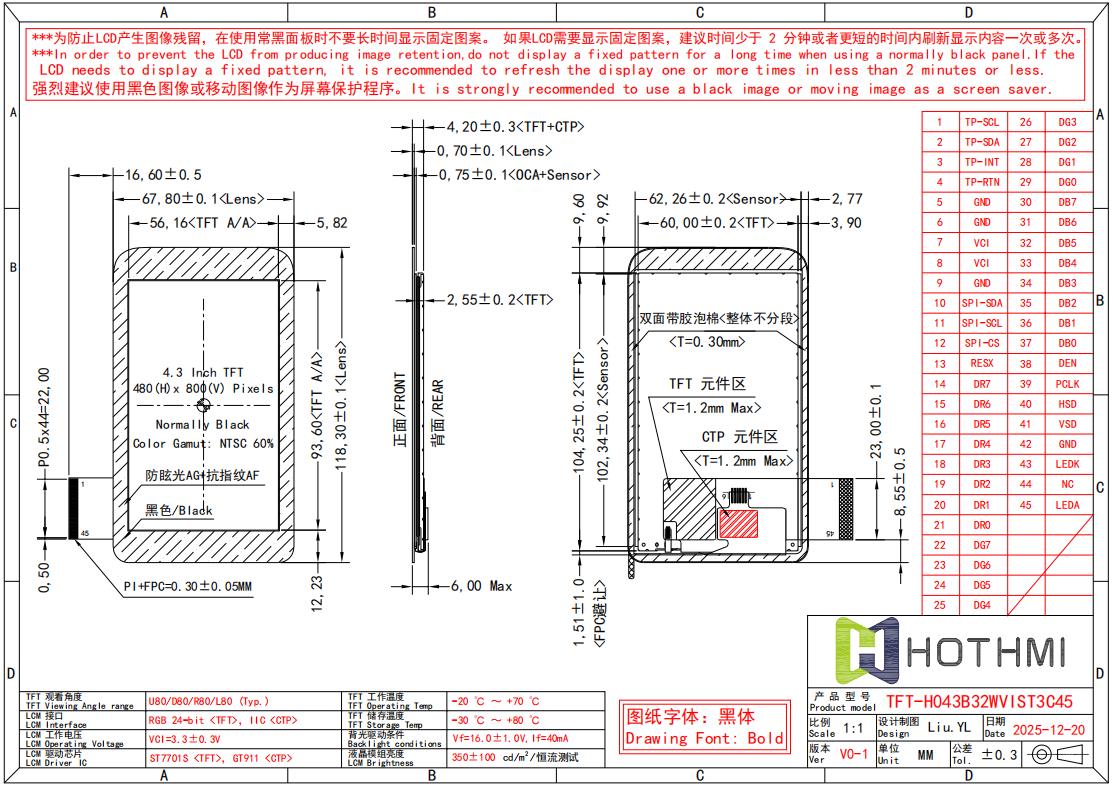

Specification of the 4.3-inch Capacitive Touchscreen TFT LCD

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H043B32WVIST3C45 4.3-inch Capacitive Touchscreen TFT LCD	February 02, 2026	62.22KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H043B32WVIST3C45
Diagonal size	4.3”	Inch
Resolution	480x800	Dot
Dimensions	67.8x118.3x4.2	mm
Active area (AA)	56.16x93.6	mm
LCD type	4.3” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2：3
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	350cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
