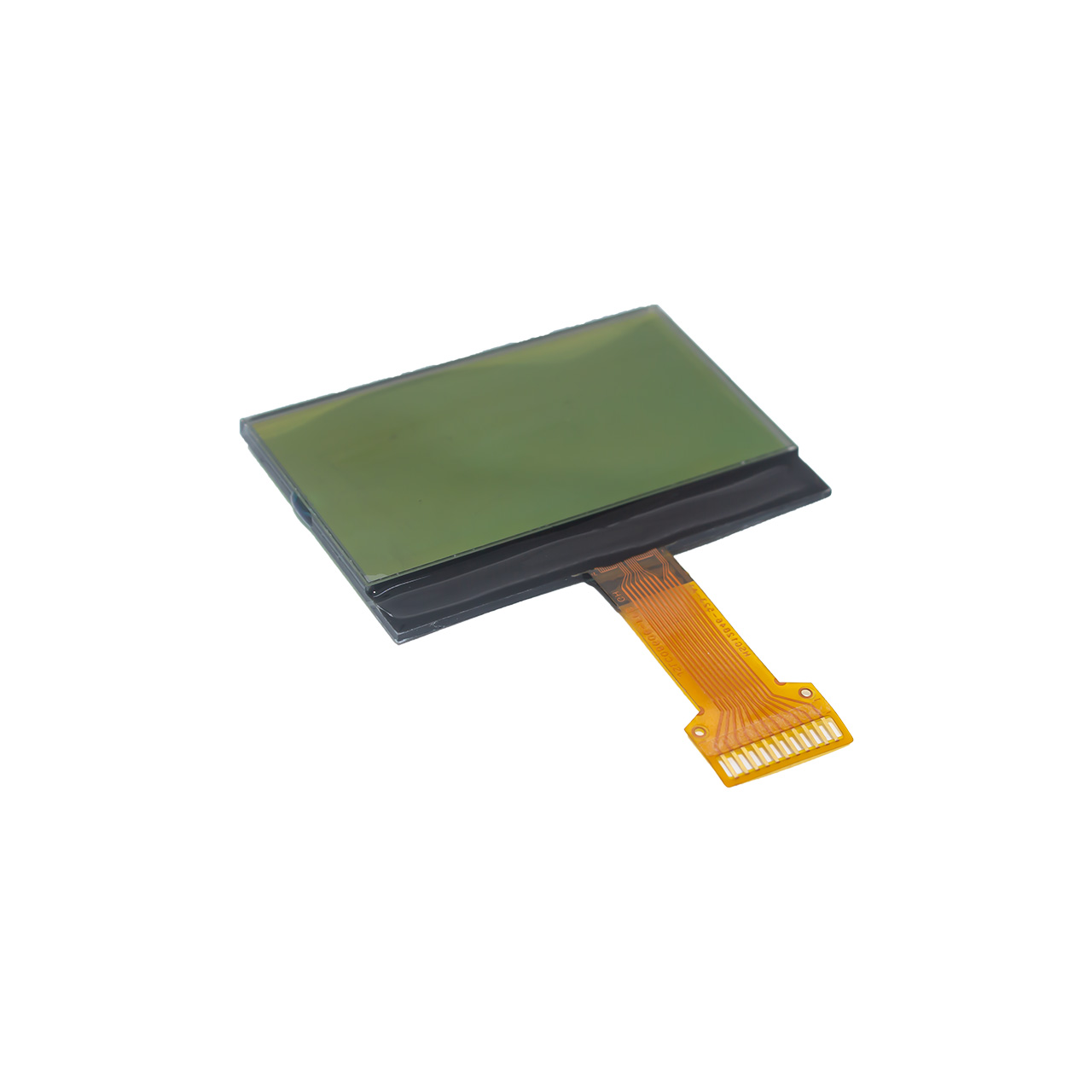

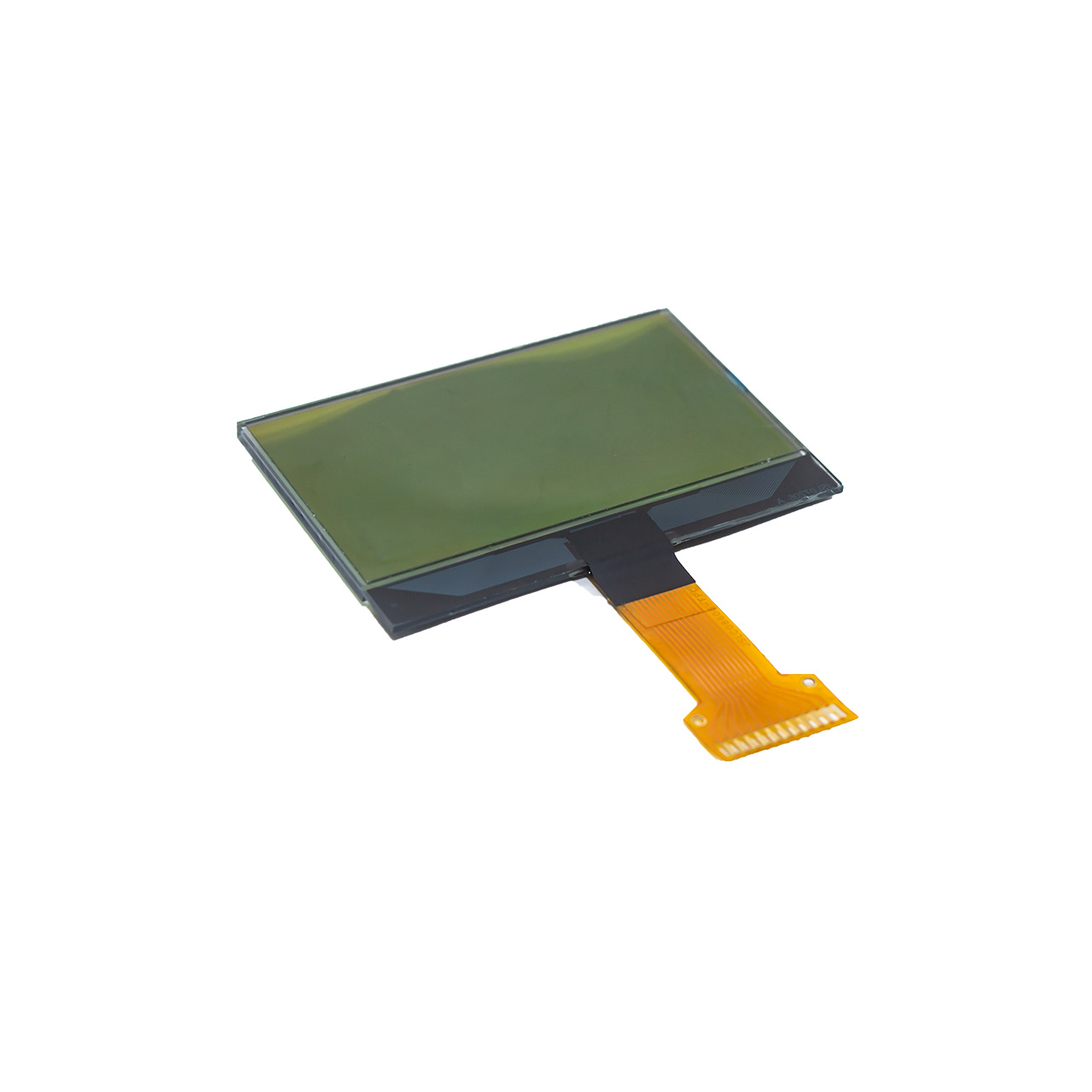

128x64 COG LCD Display STN+ Yellow/Green With Backlight

▶ Model: HTG12864-136-04W-11H12-V02

▶ Type: 128x64 COG LCD
▶ Display Pixels: 128x64
▶ Outline Dimensions (mm): 56.6x38.6x4.5
▶ VA Dimensions (mm): 53.6x28.6
▶ AA Dimensions (mm): 48.61x24.93
▶ Pixel Pitch (mm): 0.38x0.39
▶ Application: Instrumentation
▶ Viewing Angle: 12H
▶ Backlight/Brightness: White light
▶ Pins: FPC-11pin
▶ Interface: MCU
▶ Special Notes: Anti-static ESD 8KV
▶ Operating Temperature: -20℃~+70℃
▶ Supply Voltage: 3.3V
▶ Driver Chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

HTG12864-138-04W-11H12-V02 | 128x64 COG LCD Display STN+ Yellow/Green With Backlight
This specialized 128x64 COG LCD Display is engineered for precise instrumentation and measurement applications. Utilizing advanced Chip-On-Glass (COG) technology, the module achieves an exceptionally slim and compact profile, making it ideal for space-constrained devices where a low-profile design is critical. The 128x64 COG LCD Display offers superior power efficiency, significantly extending battery life in portable equipment thanks to its inherently low-voltage operation and optimized driver circuitry.
Stability and reliability are core strengths of this display. The robust COG construction, where the driver IC is directly bonded to the glass substrate, ensures excellent mechanical durability and resistance to vibration. Furthermore, the module features high anti-static protection, safeguarding it against electrical interference in demanding environments. Its wide operating temperature range guarantees consistent performance under varying conditions.
The integration of a standard MCU interface and supporting white LED backlight ensures easy implementation and clear readability. For applications demanding a reliable, thin, and energy-efficient graphical display solution, this 128x64 COG LCD Display stands out as an optimal choice, combining enduring stability with minimalist design. Ultimately, the 128x64 COG LCD Display delivers the essential balance of performance and practicality for professional instrumentation.

Specification of the 128x64 COG LCD Display

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTG12864-138-04W-11H12-V02	January 01, 2026	80.09KB

Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.

Shape Customization: Supports customization of specific Graphic LCD display dimensions.

Function Customization: Integrate specific graphic LCD display ICs, sensors, or develop dedicated communication protocols.

ITEM	parameter	Unit
Name	HTG12864-138-04W-11H12-V02
Number of dots	128x64	dots
Module size	56.6x38.6x4.5	mm
VA size	53.6x28.6	mm
AA size	48.61x24.93	mm
Pixel pitch	0.38x0.39	mm
IC	ST7567
Power supply voltage	3.3V	V
Backlight	White
Display mode	STN+
Drive mode (Duty)	1/64 duty cycle
Type	COG LCD
Features	Transmissive
