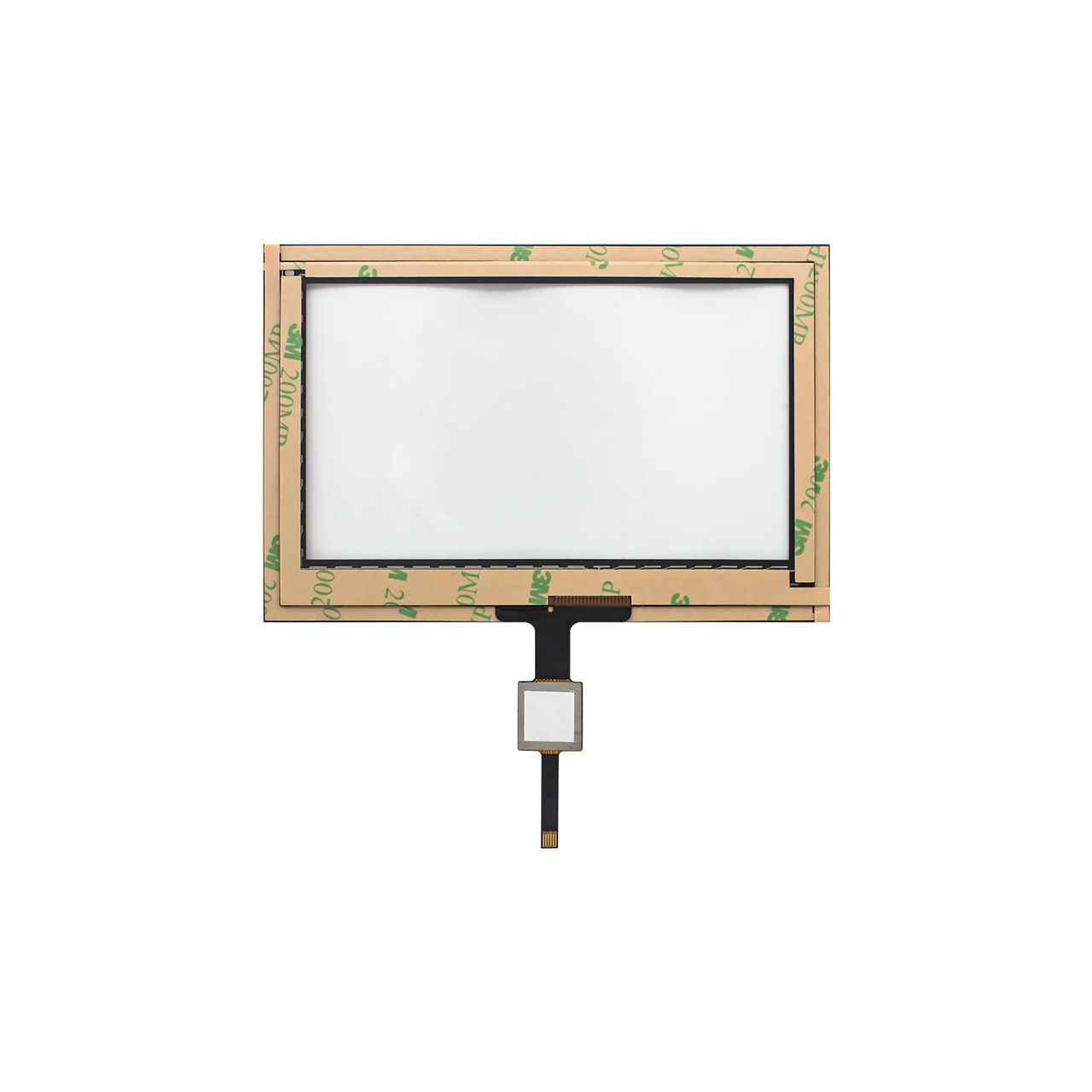

4.3-inch Capacitive Touchscreen With I2C Interface For TFT LCD display

4.3-inch Capacitive Touchscreen With I2C Interface For TFT LCD display

▶ Model: CTPH43100

▶ Type: 4.3-inch Capacitive Touchscreen

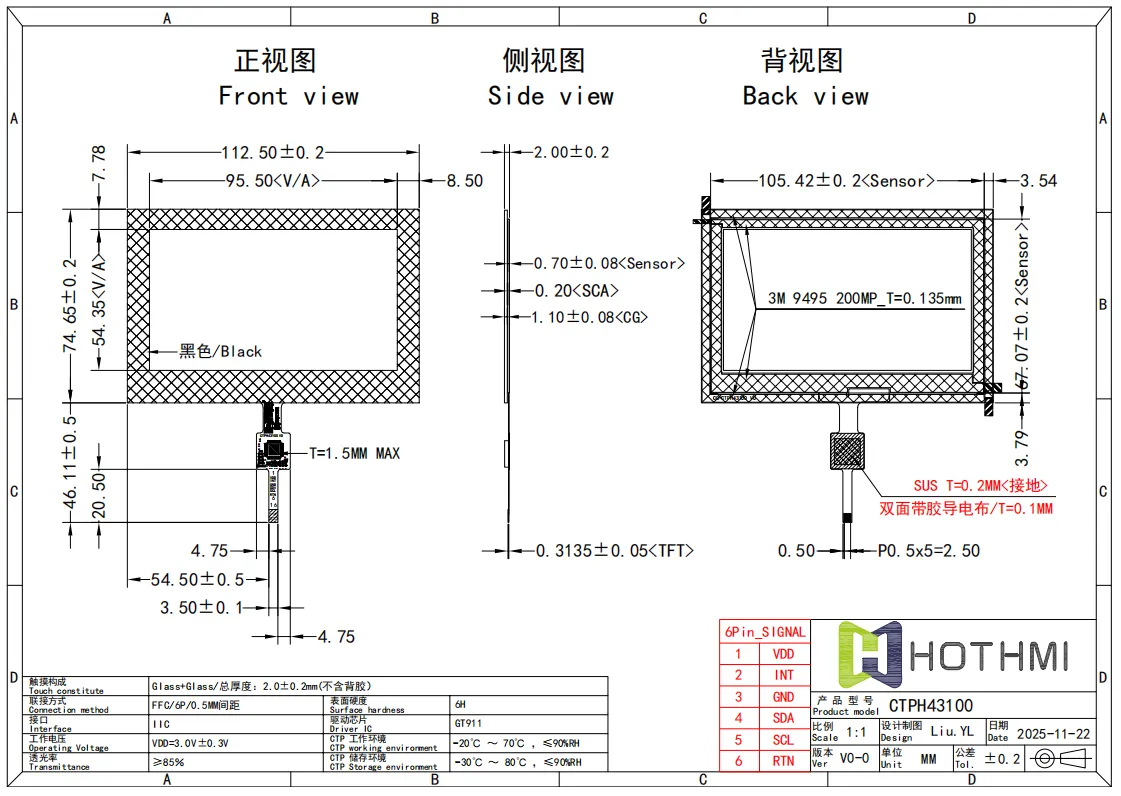

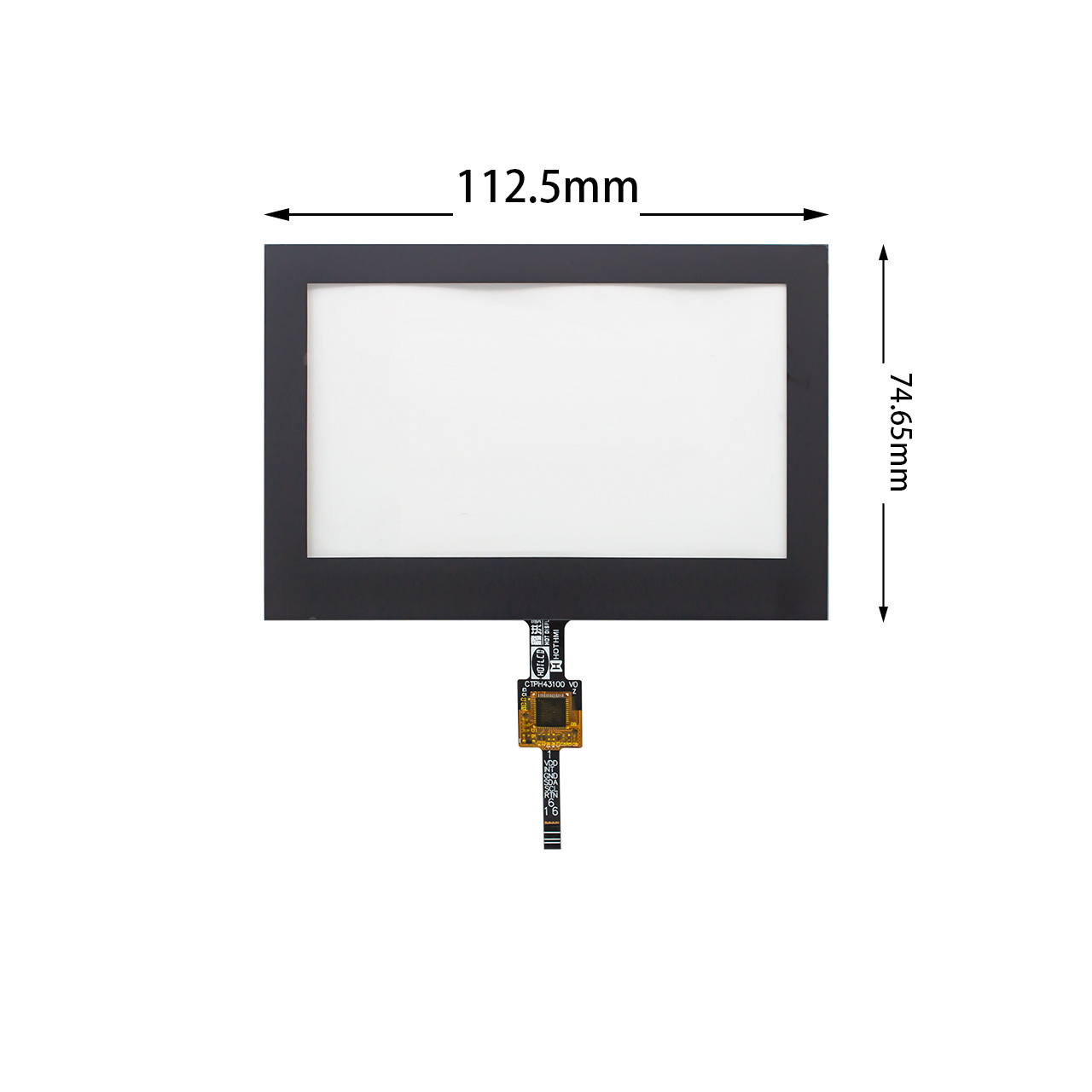

▶ Outline Dimensions (mm): 112.5 x 74.65 x 2.0
▶ Viewing Area (mm): 95.5 x 54.35
▶ Diagonal Size: 4.3 inches
▶ Number of Touch Points: 5-point touch
▶ Control Chip: GT911
▶ Interface: I2C
▶ Connection Type: 6-pin FFC connector
▶ Process Structure: G+G
▶ Cover Plate Shape: 1:1 Cover Plate
▶ Hardness: 6H
▶ Transmittance: ≥85%

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

4.3-inch Capacitive Touchscreen With I2C Interface For TFT LCD display
This 4.3-inch Capacitive Touchscreen is a high-performance input solution designed for seamless integration with TFT LCD displays. Featuring a compact outline dimension and a slim 2.0mm thickness, it offers a generous viewing area, delivering a clear and vibrant 4.3-inch diagonal visual experience.
Built with a durable G+G (Glass+Glass) process structure and a 6H hardness cover plate in a standard 1:1 shape, this touchscreen ensures excellent scratch resistance and longevity. It supports smooth and responsive 5-point multi-touch interaction, powered by the reliable GT911 control chip. Communication is efficiently handled via the I2C interface, connected through a convenient 6-pin FFC connector for easy installation. With a high light transmittance of ≥85%, the 4.3-inch Capacitive Touchscreen maximizes display clarity and brightness, making it an ideal choice for various interactive applications.
