4.3-inch CTP GT911 controller with I2C interface | 5-point G+G plug-in capacitive touchscreen

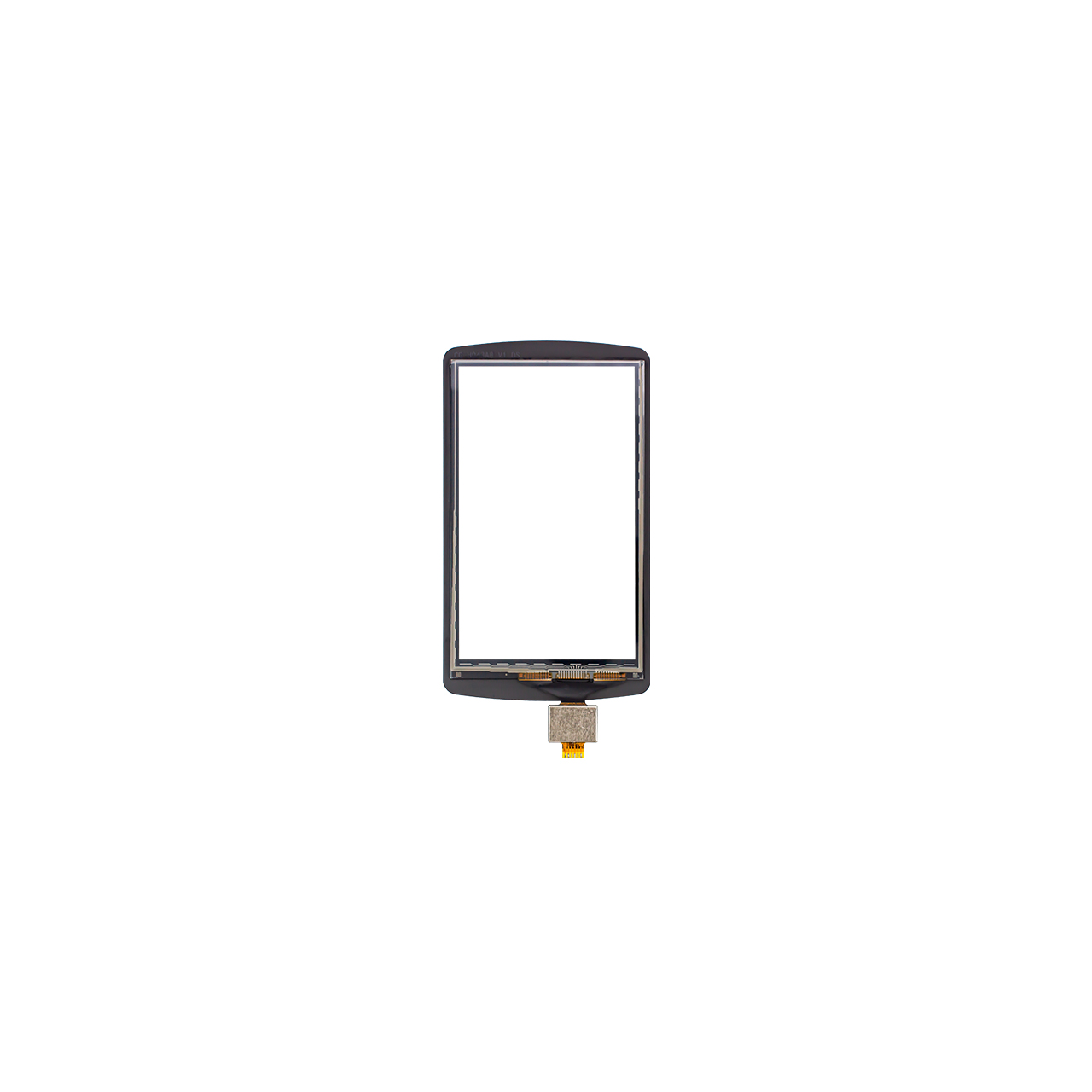

For industrial and consumer electronics applications demanding precise interaction and reliable performance, the CTP-H043A8 4.3-inch capacitive touchscreen, with its superior quality, is an ideal choice. It utilizes the high-end GT911 driver chip, enabling efficient and stable signal transmission via an I²C interface. Supporting 6-pin FFC solder connections, it simplifies integration and ensures device compatibility. Its core specifications include a 3.3V operating voltage and 1.8V logic level for optimal power efficiency and signal integrity. A wide operating temperature range of -20°C to 70°C and 90% humidity tolerance ensure it easily withstands harsh environmental challenges.

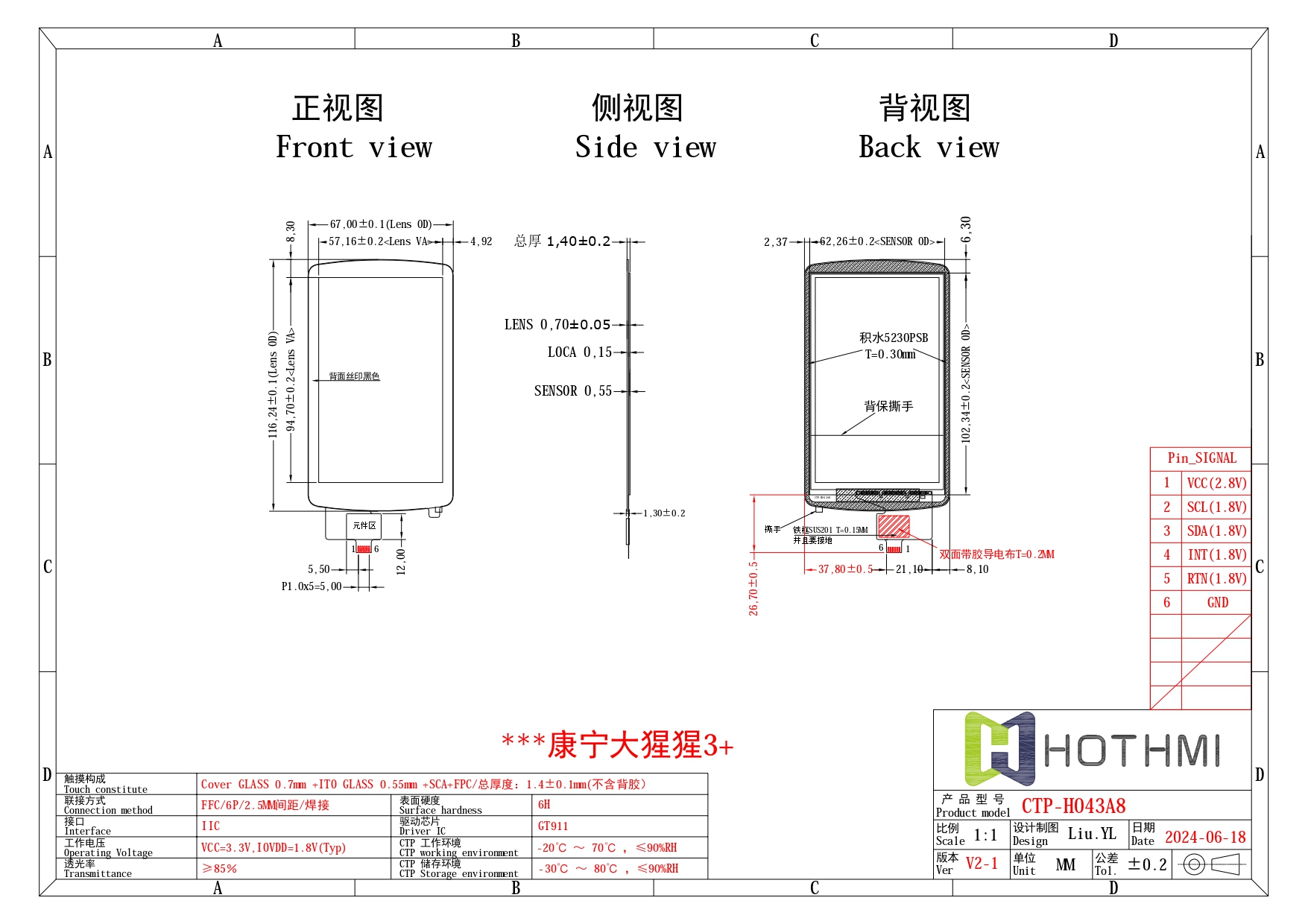

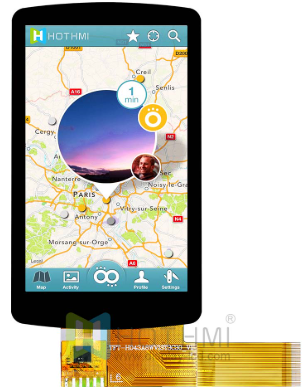

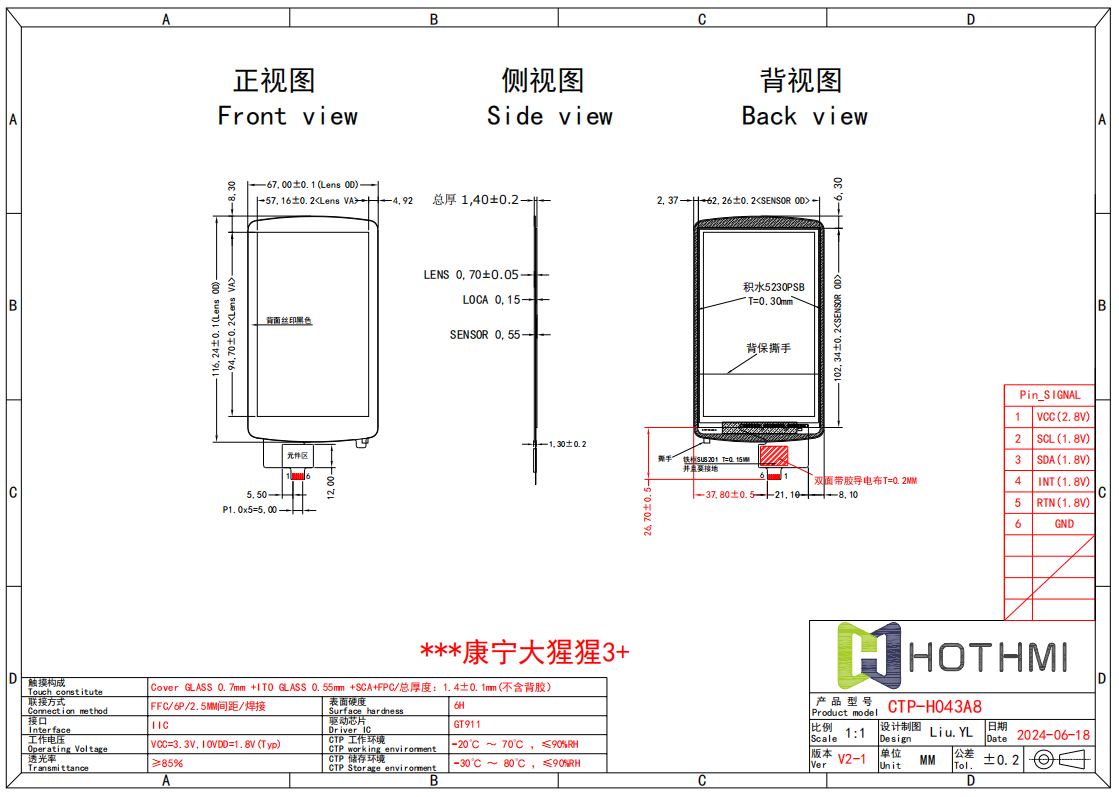

Exquisite craftsmanship and design: This version utilizes Corning Gorilla Glass 3+ tempered glass over a 0.55mm ITO sensor, precisely bonded with optical adhesive (LOCA), resulting in a total thickness of only 1.4mm ±0.1mm. Its 6H-grade surface hardness provides robust scratch resistance, while a light transmittance of ≥85% ensures crisp, vibrant images, delivering an immersive visual and touch experience. Structurally, the SUS201 stainless steel frame and double-sided conductive fabric with adhesive enhance the body's strength and optimize electromagnetic shielding. Precision silkscreen printing and a tear-resistant design on the back further simplify production and assembly. The panel features a curved profile, tailored to user requirements, creating a sophisticated and aesthetically pleasing appearance. The finished product, when paired with a TFT LCD, is shown in the TFT-H043A8WVIST3C30 model:
Whether it's an industrial control panel, portable medical device, or smart home terminal, the CTP-H043A8, with its compact size, military-grade environmental adaptability, and highly sensitive touch response, injects a reliable interactive core into your product. It's more than just a display; it's a key component that enhances the value of your terminal device, helping to create a durable, intuitive, and user-friendly smart solution.
