3.5 Inch TFT LCD Display with RTP | ST7796S Controller

▶ Model: TFT-H035A5HVTST2R45

▶ Type: TFT display

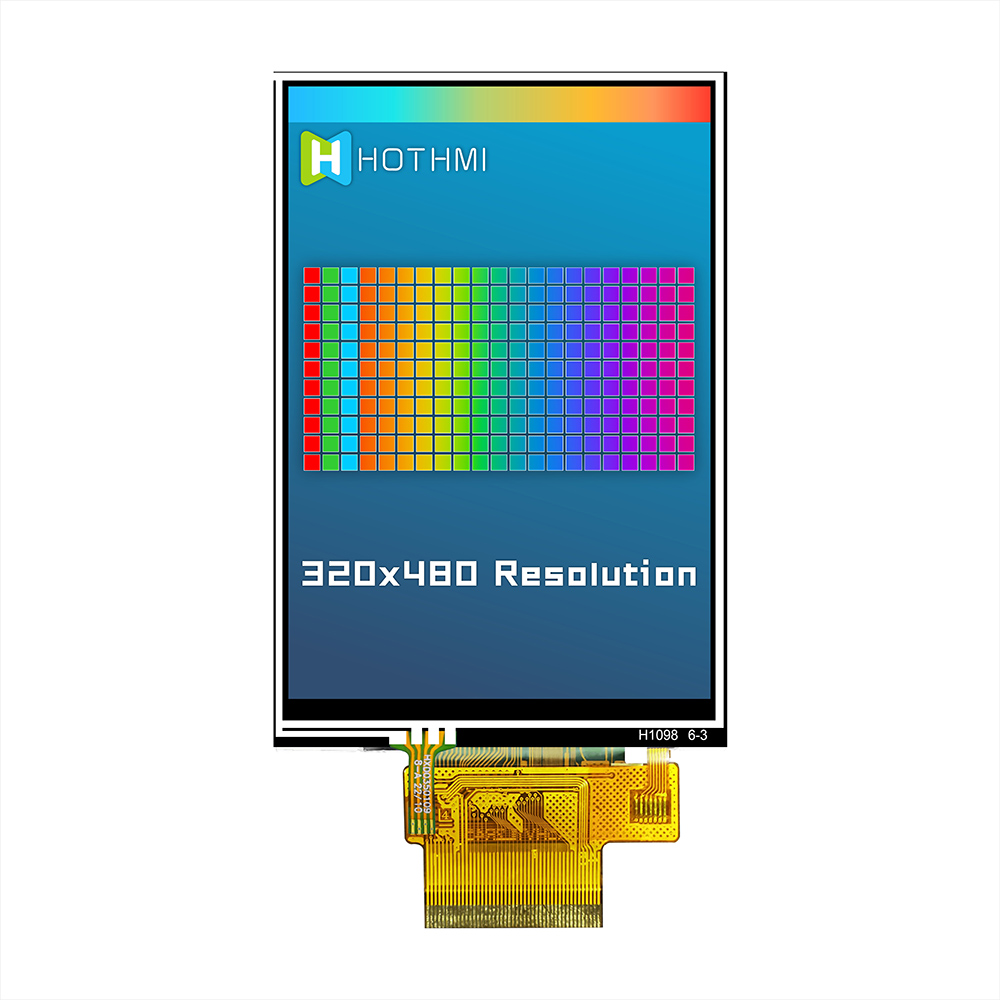

▶ Display pixels: 320x480

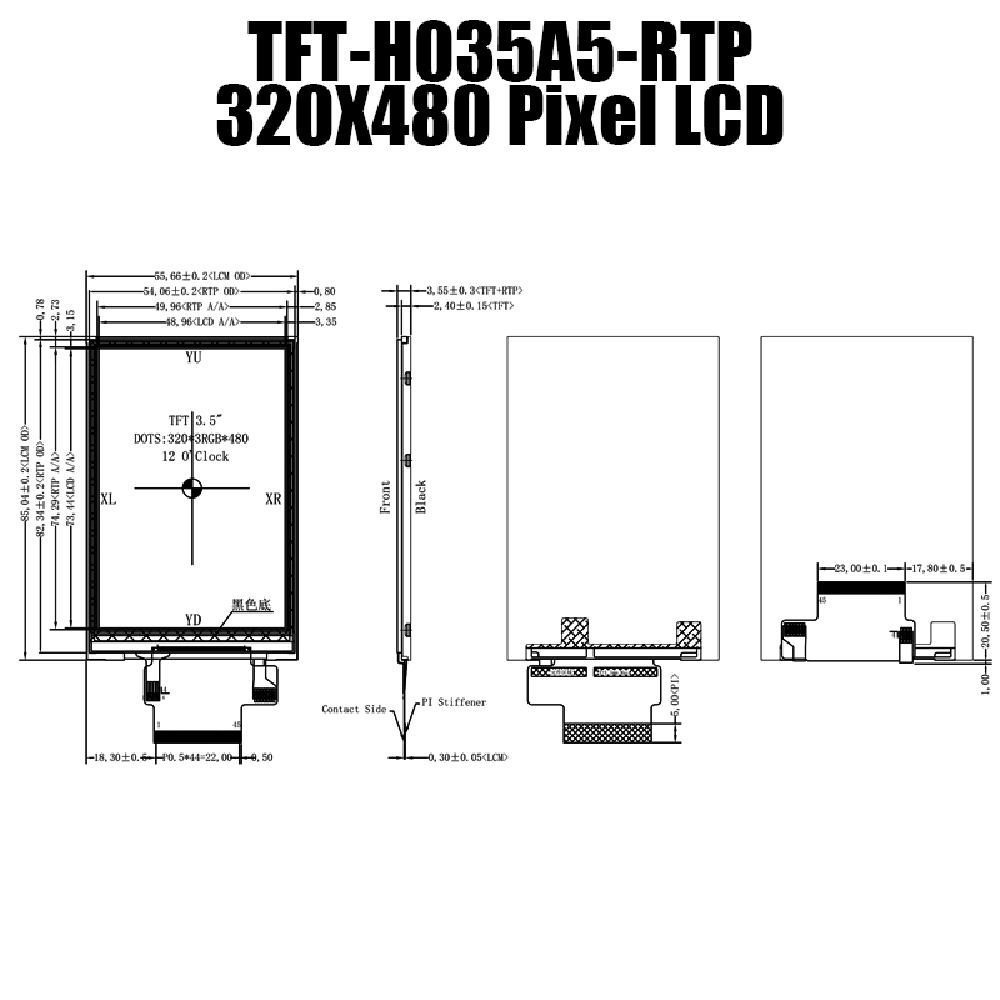

▶ Dimensions (mm): 55.66x85.04x3.55
▶ AA size (mm): 48.96x73.44

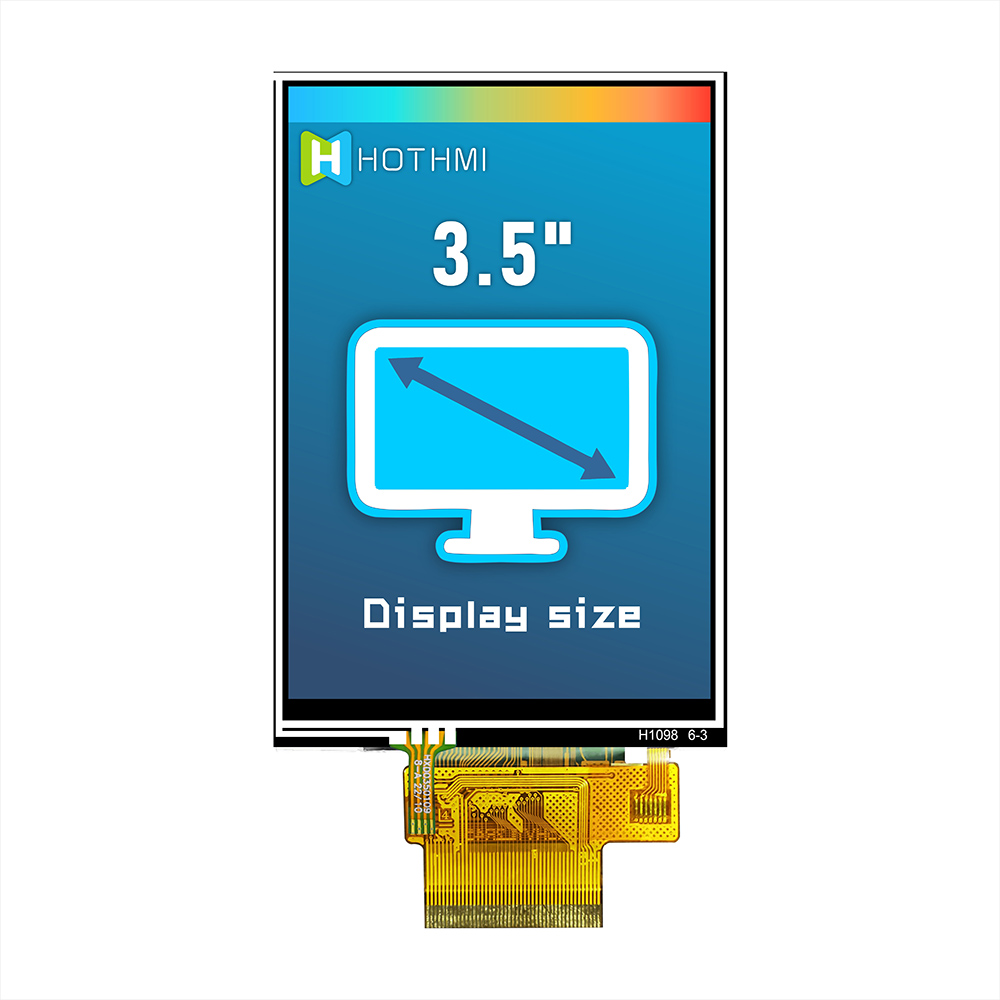

▶ Display inches: 3.5"
▶ Application: Handheld devices

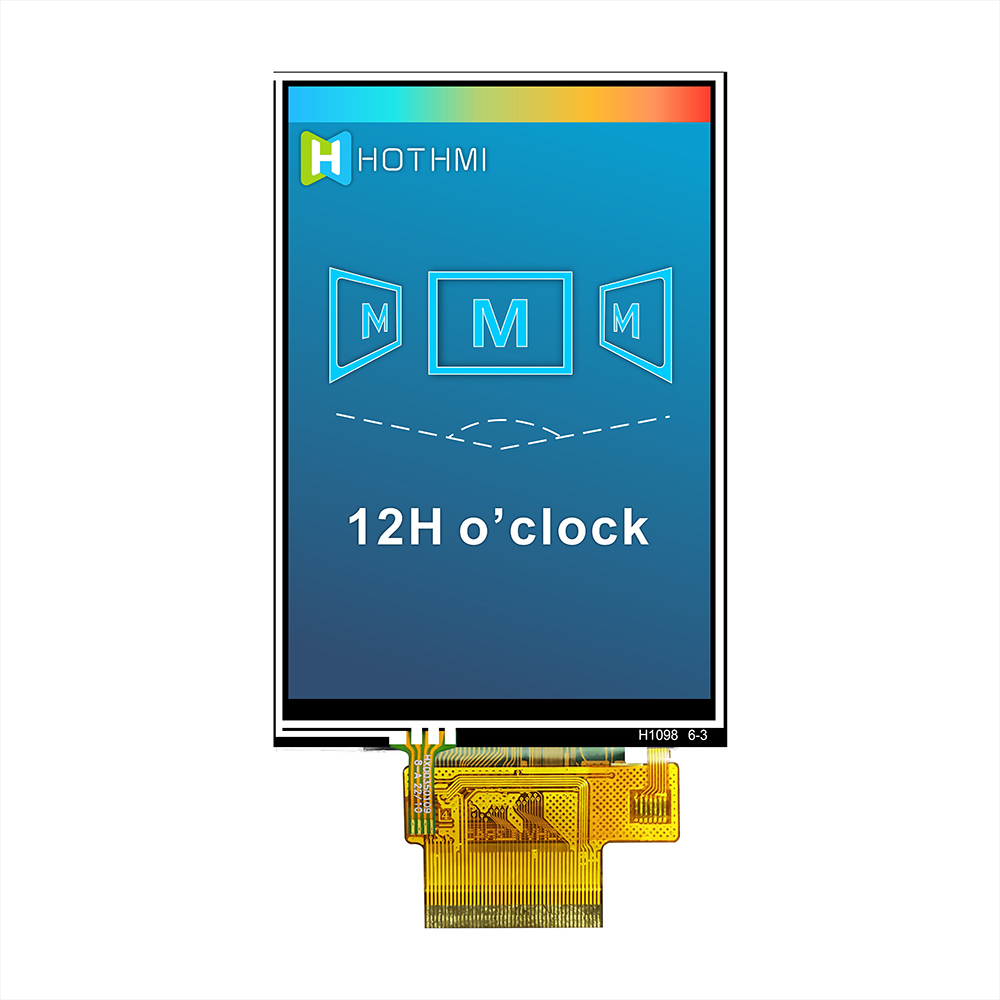

▶ Viewing angle: 12 o'clcok

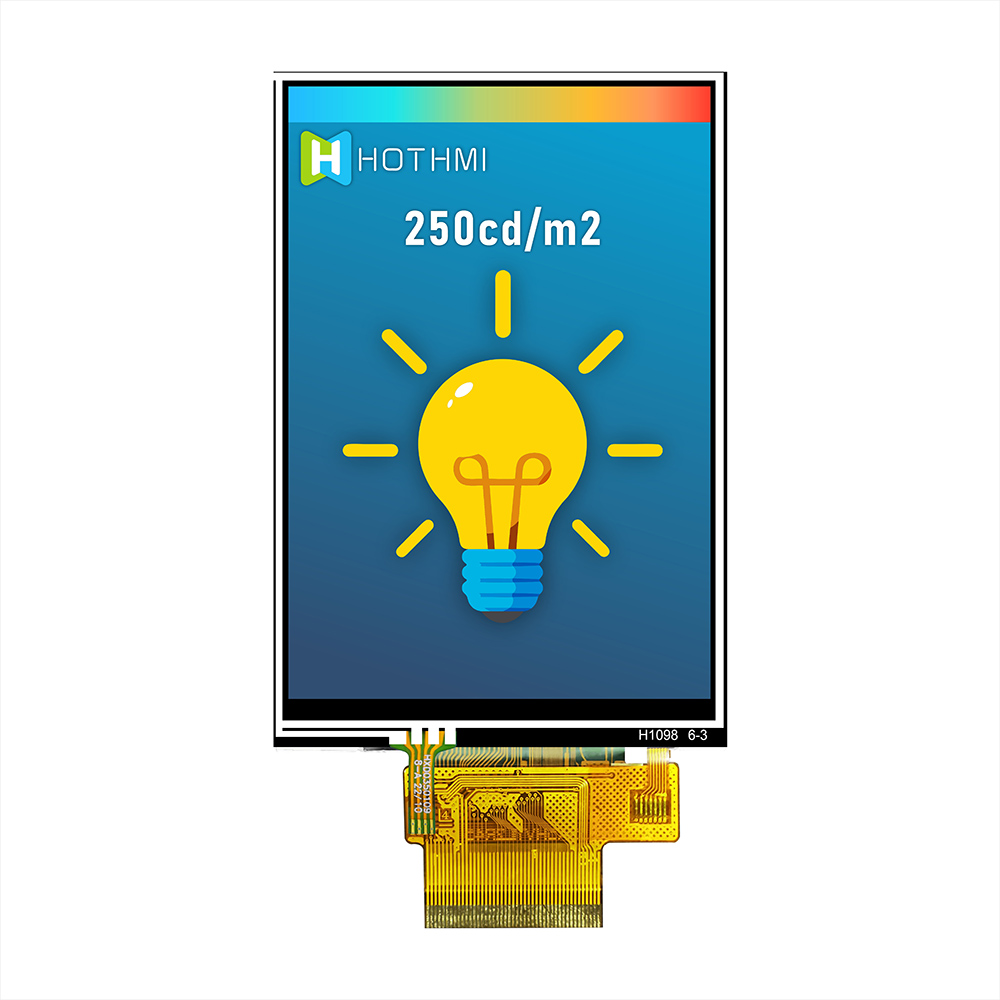

▶ Backlight/brightness: 250cd/m2
▶ Pin: FPC-45 pin

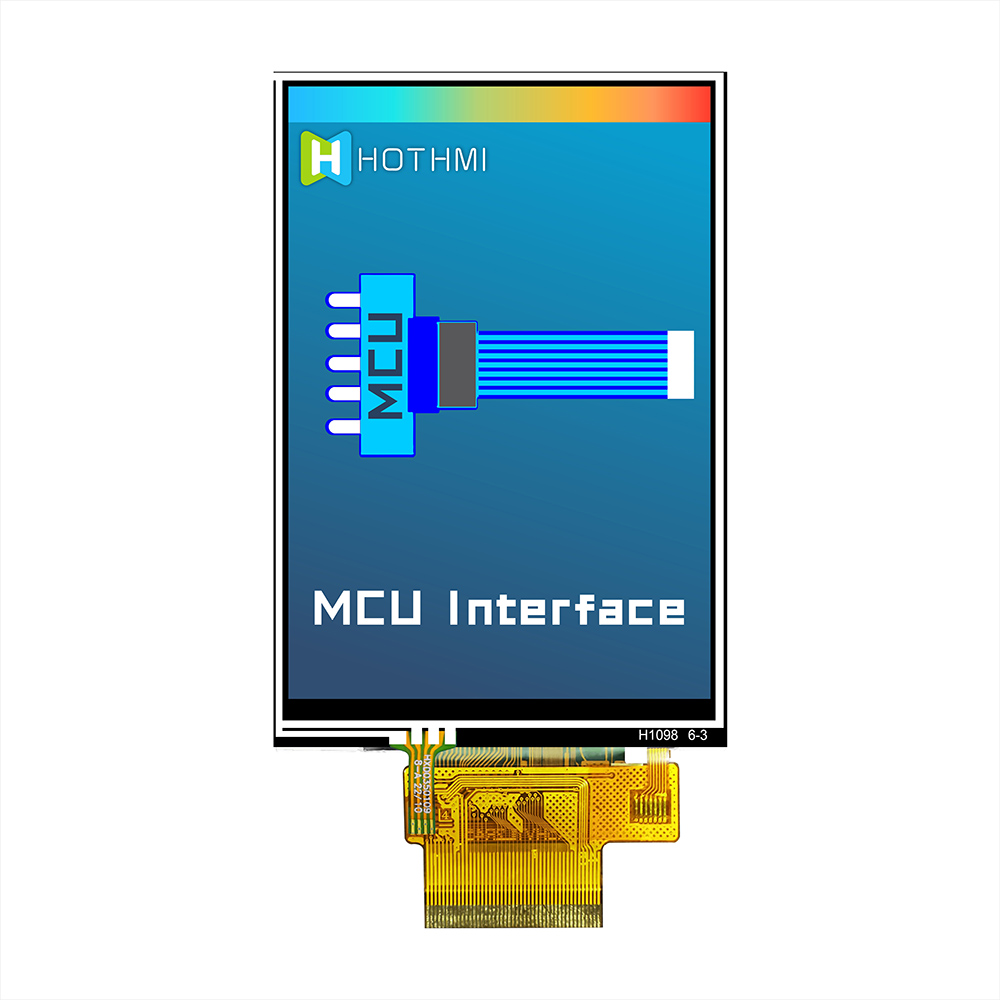

▶ Interface mode: MCU

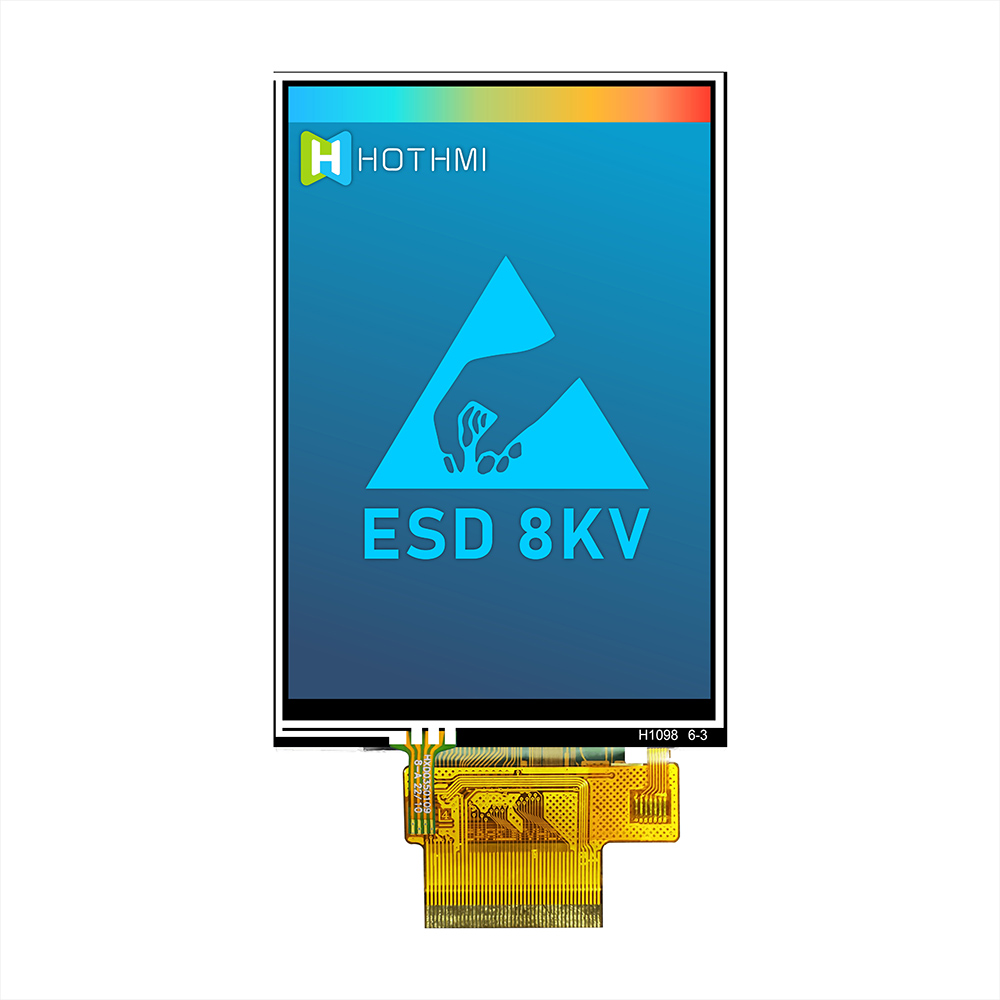

▶ Special instructions: Anti-static ESD 8KV

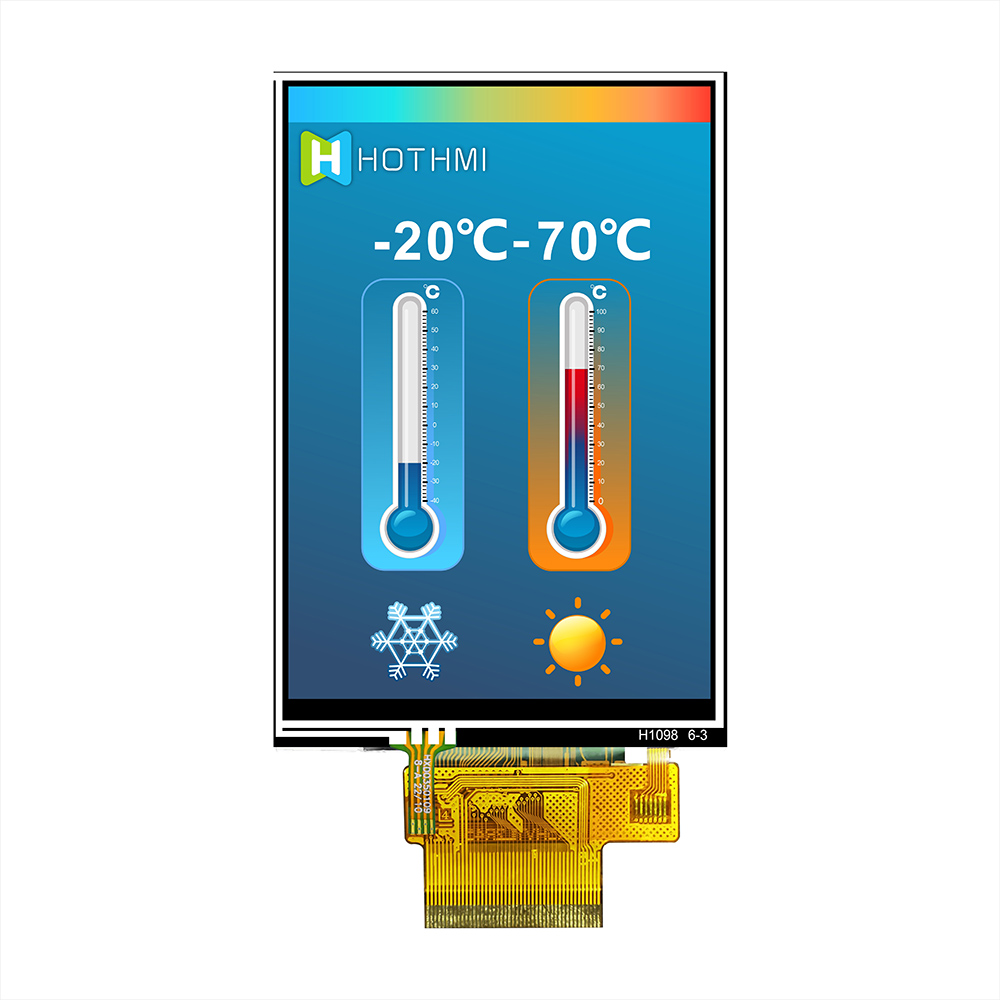

▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V

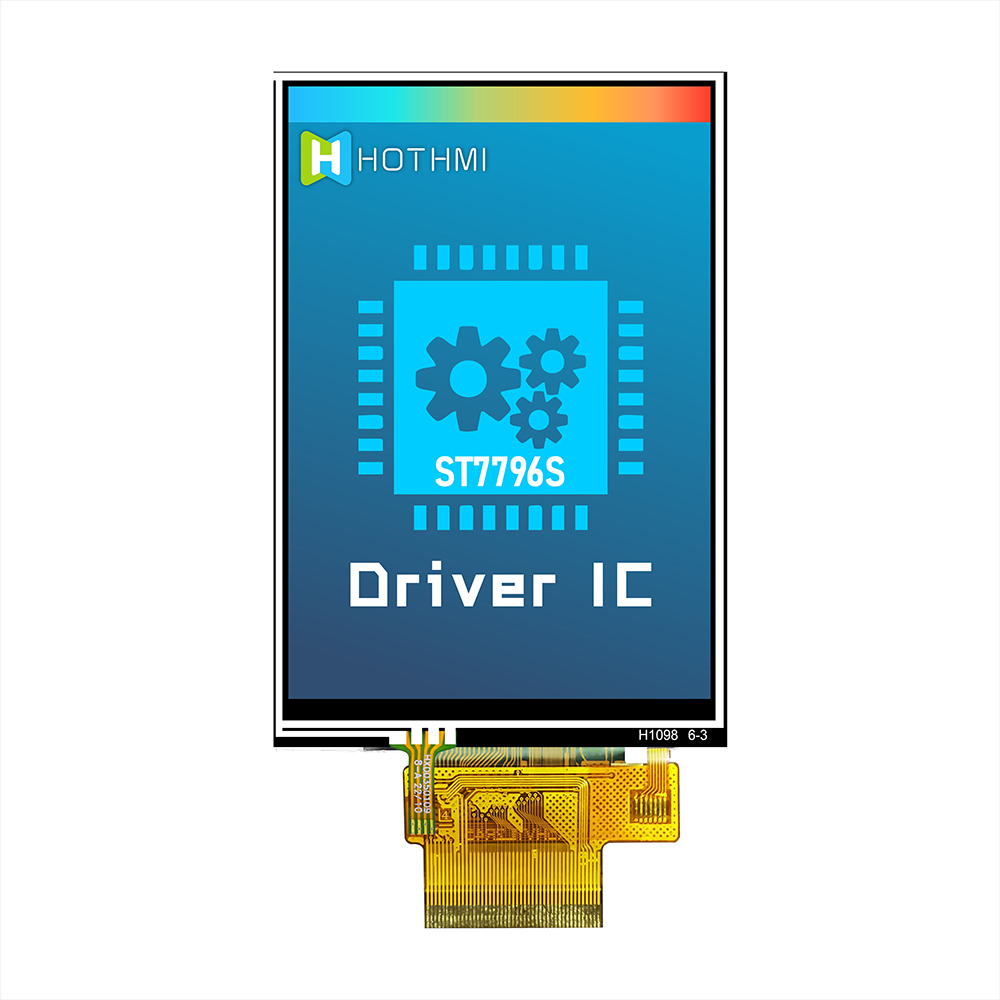

▶ Driver IC: ST7796S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

3.5-inch 320x480 dot matrix TFT LCD display / 3.5 "full color resistive touch TFT / 12H viewing angle / MCU interface / C8051 / Arduino / STM32 / ST7796S controller

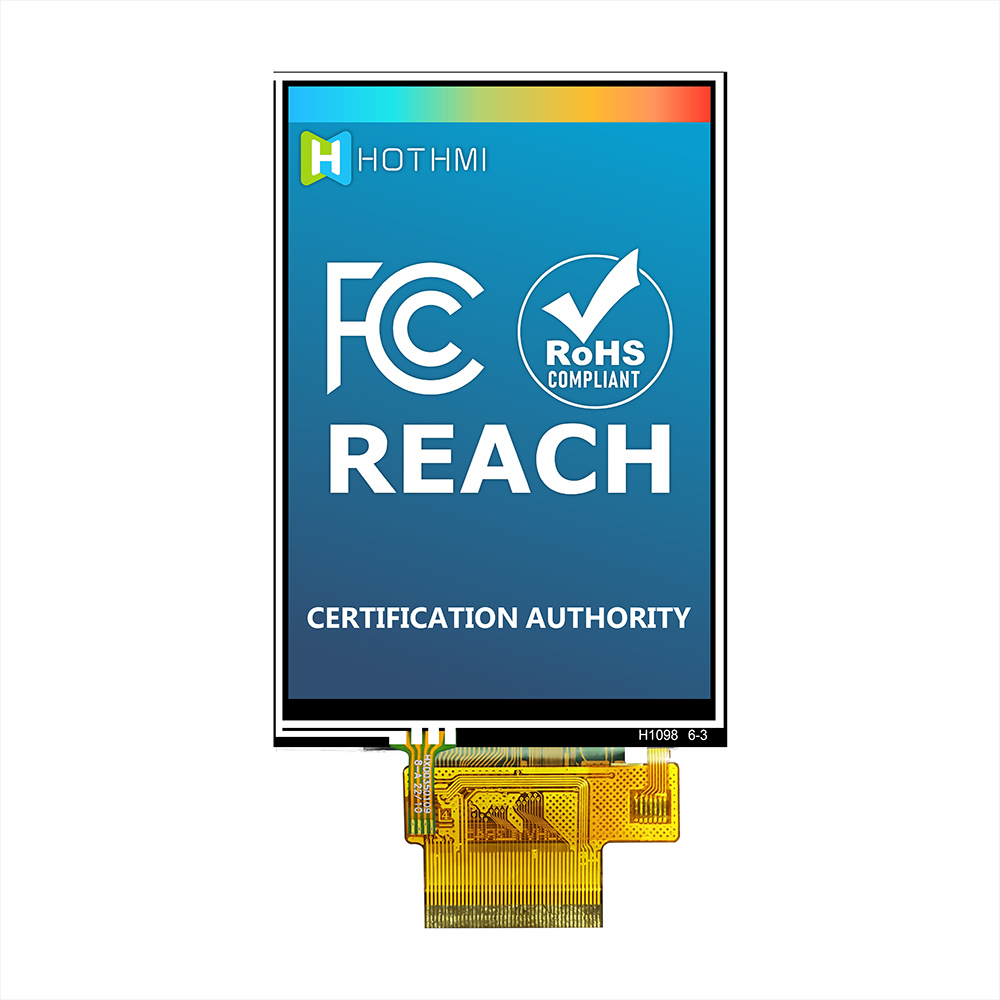

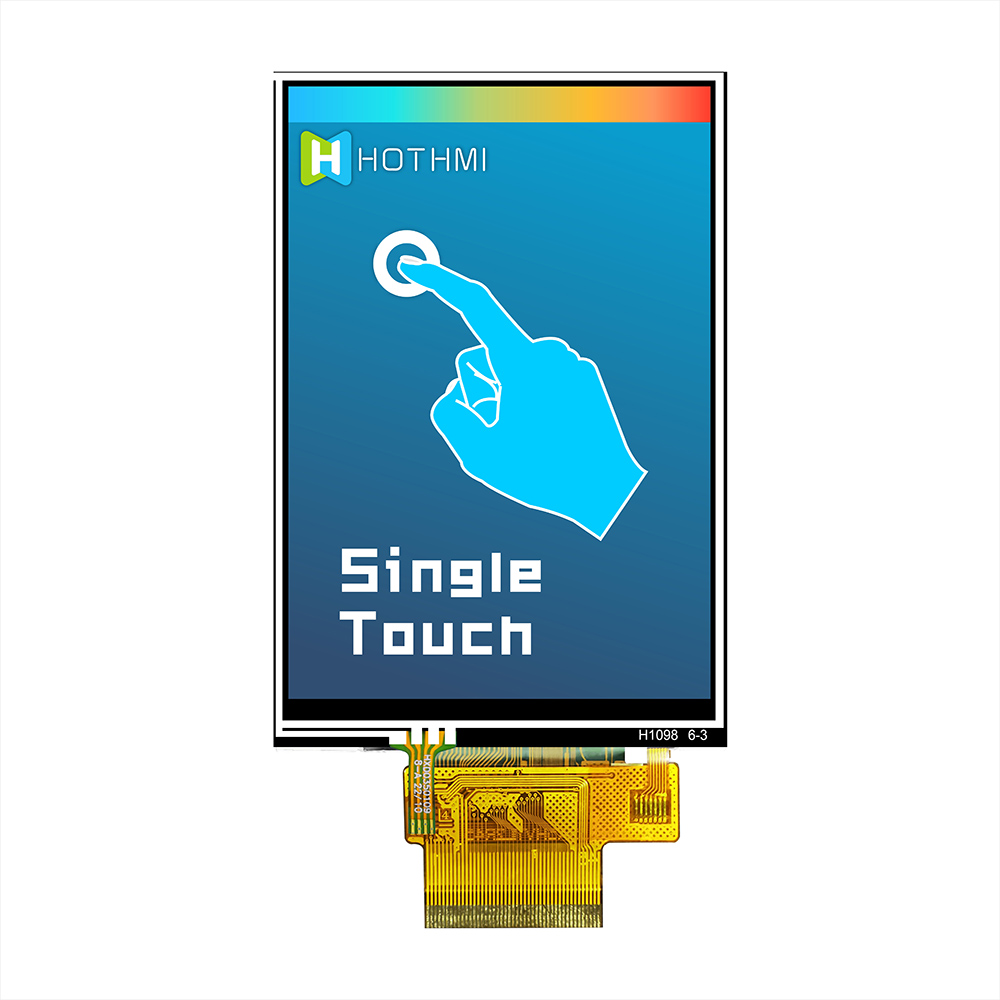

3.5-inch 320x480 dot matrix TFT LCD display / 3.5 "full color resistive touch TFT / MCU interface / C8051 / Arduino / STM32 / ST7796S controller Model TFT-H035A5HVTST2R45 is an IPS full viewing angle display with high picture quality, high contrast and wide color gamut. Its resolution is 320x480, with built-in ST7796S controller. This model is with resistive touch function, supports MCU interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. Hot Display's display has a wide operating temperature range, and the operating temperature range of this product is -20 ℃ ~ +70 ℃. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for systems such as Arduino.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H035A5HVTST2R45
Diagonal size	3.5”	Inch
Resolution	320x480	Dot
Dimensions	55.66x85.04x3.55	mm
Active area (AA)	48.96x73.44	mm
LCD type	TFT LCD Display	mm
Display viewing angle	12H
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7796S
Brightness	250	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
