Standard Character LCD Display Product Line

We offer a variety of standard models to meet the needs of most common applications.

1. Classification by Display Size and Character Count: Balancing display information with size, suitable for devices with extremely limited space that only need to display a small amount of status or data.

Compact Display

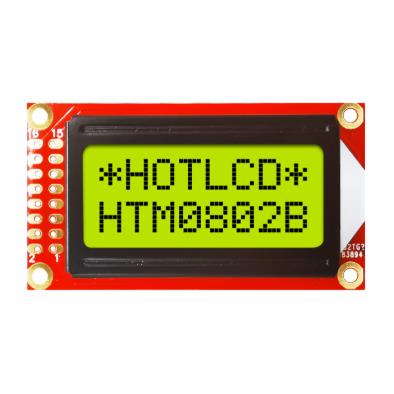

8x2 Character LCD display:

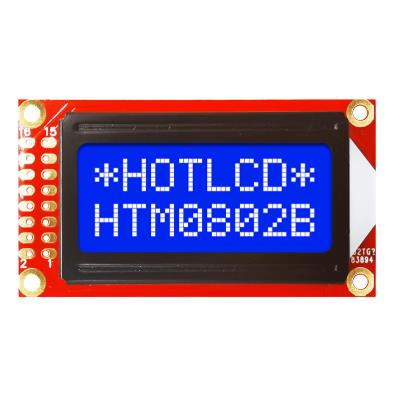

HTM0802B-01Y-T5P-V03   8x2 Character LCD Display |STN + Yellow/Green Display	HTM0802B-25W-T5P-V03  8x2 Character LCD Display | STN- Blue Display with White Side Backlight	HTM0802B-31W-T5P-V03  Character LCD Display |8*2 FSTN + Gray Display with White Side Backlight ST7066U Arduino

16x1 Chatacter LCD Display

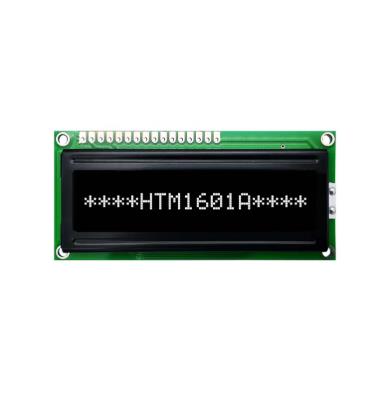

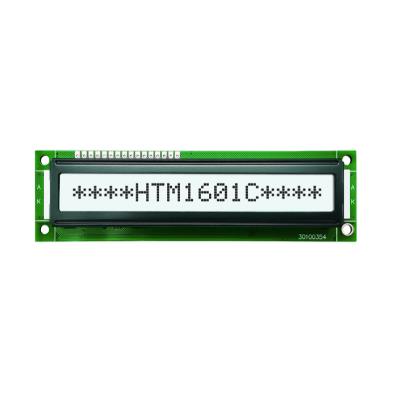

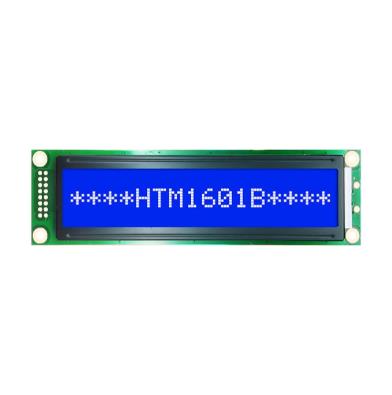

HTM1601C-31W-A5P  16x1 Character LCD Display FSTN+ Gray Background Black Character Display Module - Arduino	HTM1601A-47W-A5P   china LCD suppiler 16x1 character LCD display  DFSTN(-) black background with white backlight	HTM1601B-25W-A5P  1X16 Character LCD Modules  STN- Blue Background LCD Display

16x2 character LCD display, 20x2 character LCD display, 16x4 character LCD display, 20x4 character LCD display, 40x2 character LCD display, 40x4 character LCD display

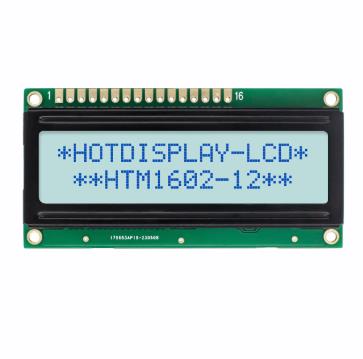

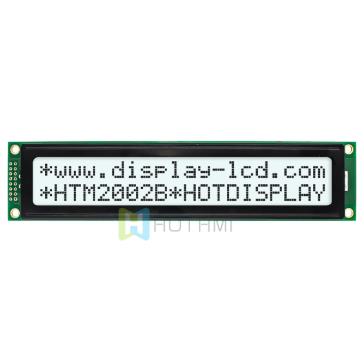

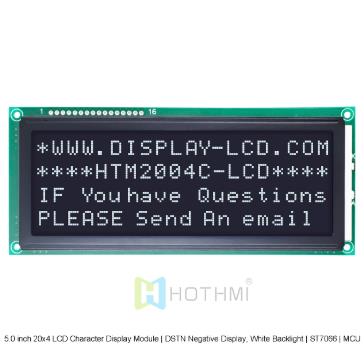

HTM1602-12-11W-A5P  16x2 Character LCD Display STN+ Gray with Side White Backlight -Arduino	HTM2002B-31W-A5P  20x2 Character LCD Display Module FSTN(+) With White Backlight	HTM2004C-47W-A5P  20x4 Character LCD Display DSTN  Display with White Backlight ST7066

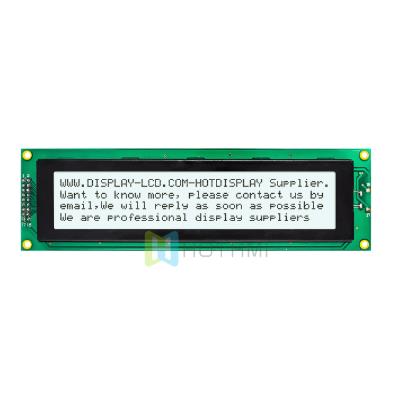

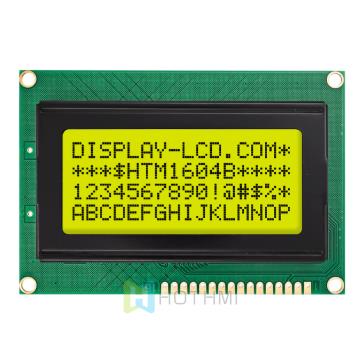

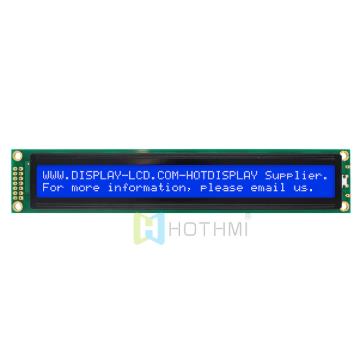

HTM1604B-11Y-A5P  16x4 Charactrt LCD Display STN(+）With Yellow-Green Backlight	HTM4002A-25W-A5P  40x2 character LCD Display STN negative display with white backlight	HTM4004B-31W-A5P  40x4 Character LCD Modules | FSTN+gray With White Backlight

2. Classification by Backlight and Color

Monochrome LCD with No Backlight: Relies on ambient light for reading, resulting in extremely low power consumption, suitable for well-lit indoor environments.

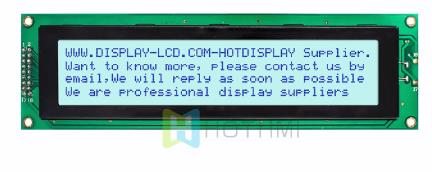

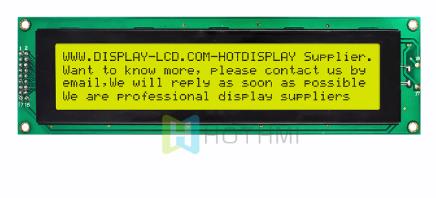

Monochrome LCD with Backlight

LED Backlight (Yellow-Green/White/Blue): Provides excellent readability. Yellow-Green is a classic choice with a soft visual effect; White and Blue offer a more modern look and high contrast.

Specialty and Customized Character LCD Display Solutions

Hotdisplay offers robust customization services tailored to specific application environments and customer needs.

1.Wide Temperature and High Reliability Series

• Industrial Wide Temperature Character LCD: Operating temperature range from -30℃ to +85℃, ensuring stable operation in harsh industrial environments with no ghosting or display failure.

• High Brightness/High Contrast Models: Designed for outdoor or high-light environments, ensuring visibility even under direct sunlight.

• Long Lifespan Backlight Design: Utilizing high-quality LEDs and optimized circuitry, ensuring backlight lifespan is synchronized with the LCD core, meeting the requirements for long-term uninterrupted operation.

2.Customization Services

• Size and Appearance Customization: Customizable non-standard sizes, special openings, irregular bevels, and specific color panels based on your structural design.

• Interface and Pin Definition Customization: Adapting to your motherboard layout and optimizing connection methods.

• Special Character/Icon Customization: Integrating customer-exclusive logos, special symbols, or custom characters into modules to enhance product brand recognition and user experience.

Character LCD Typical Application Scenarios Guide

Unsure how to choose the right model? Please refer to the following application scenarios to match our products:

• Industrial PLC/Controller Status Display: Recommended 16x2 or 20x4 character LCD, wide-temperature range model, green or white backlight.

• Laboratory Test and Measurement Instruments: Recommended 20x4 or 40x2 character LCD, high-contrast blue backlight, serial interface for simplified internal connections.

• Medical Equipment Parameter Monitors: Recommended high-reliability, long-life backlight character LCD to ensure critical information is clear and accurate.

• Smart Home Control Panels: Recommended ultra-thin design, white backlight COG character LCD, with SPI or I2C interface, aesthetically pleasing and easy to integrate.

• Vehicle Equipment and Transportation Systems: Must select industrial wide-temperature range series, shock-resistant design to cope with the complex environment inside the vehicle.
