Comprehensive TFT LCD display main control board design service

With the increasing popularity of smart devices and interactive interfaces, TFT LCD displays have become a vital component of various electronic products. Whether it's industrial control, smart home, medical equipment, or consumer electronics, high-performance, highly reliable display solutions are key to product success. We specialize in providing comprehensive TFT LCD display motherboard design services, from core motherboard solutions to complete display modules, offering customized, comprehensive development system support.

1. Core control board design: flexible adaptation to various development needs

The main control board is the "brain" of the display system, determining display performance, functional scalability, and system compatibility. We offer a variety of main control board designs to meet the needs of different application scenarios:

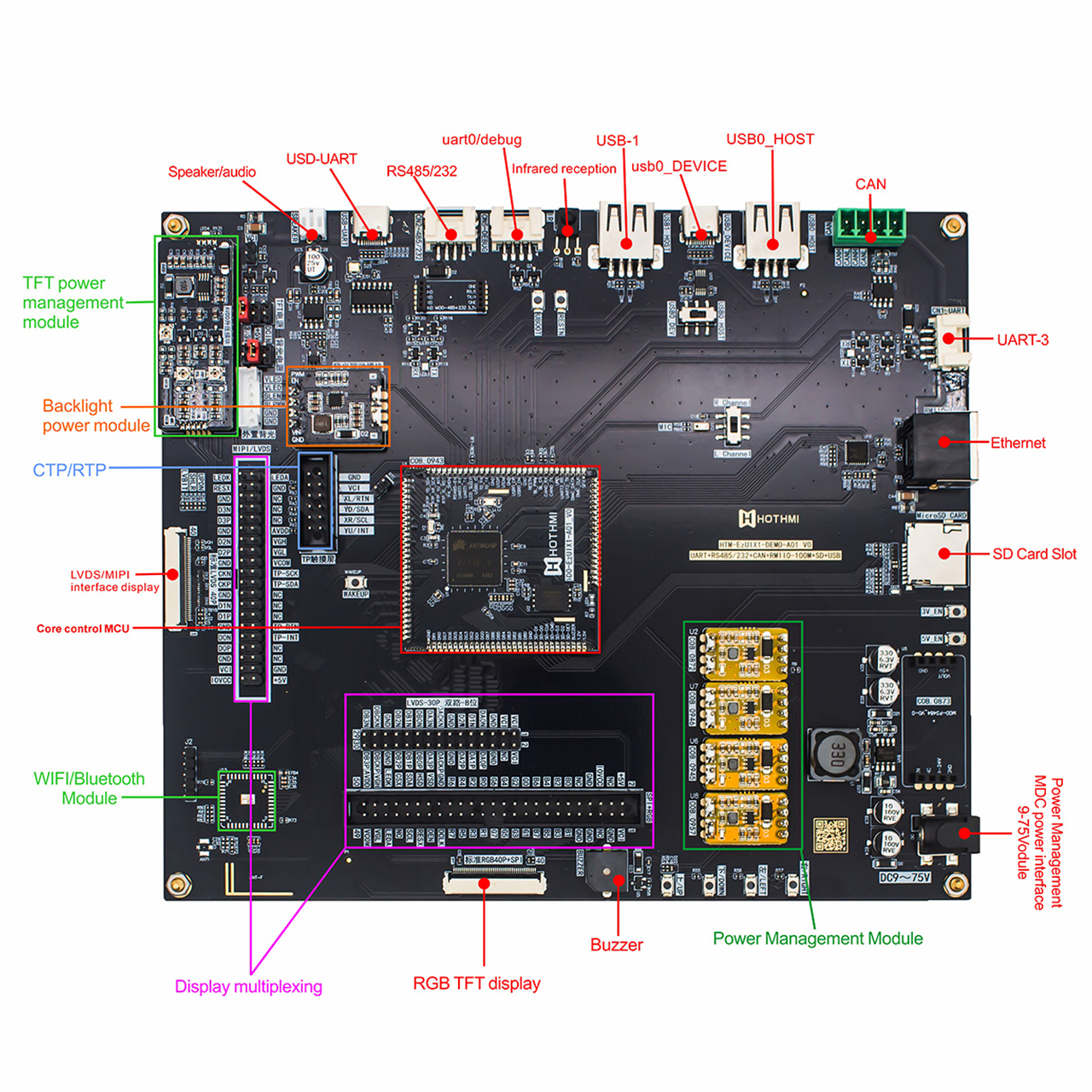

Rich interface and platform support

Our main control board solutions cover a variety of mainstream interfaces and development platforms, including:

• MCU control boards: Ideal for cost-sensitive applications, providing efficient display control capabilities.

• SPI interface development boards: Easy-to-use, suitable for small and medium-sized displays and resource-constrained systems.

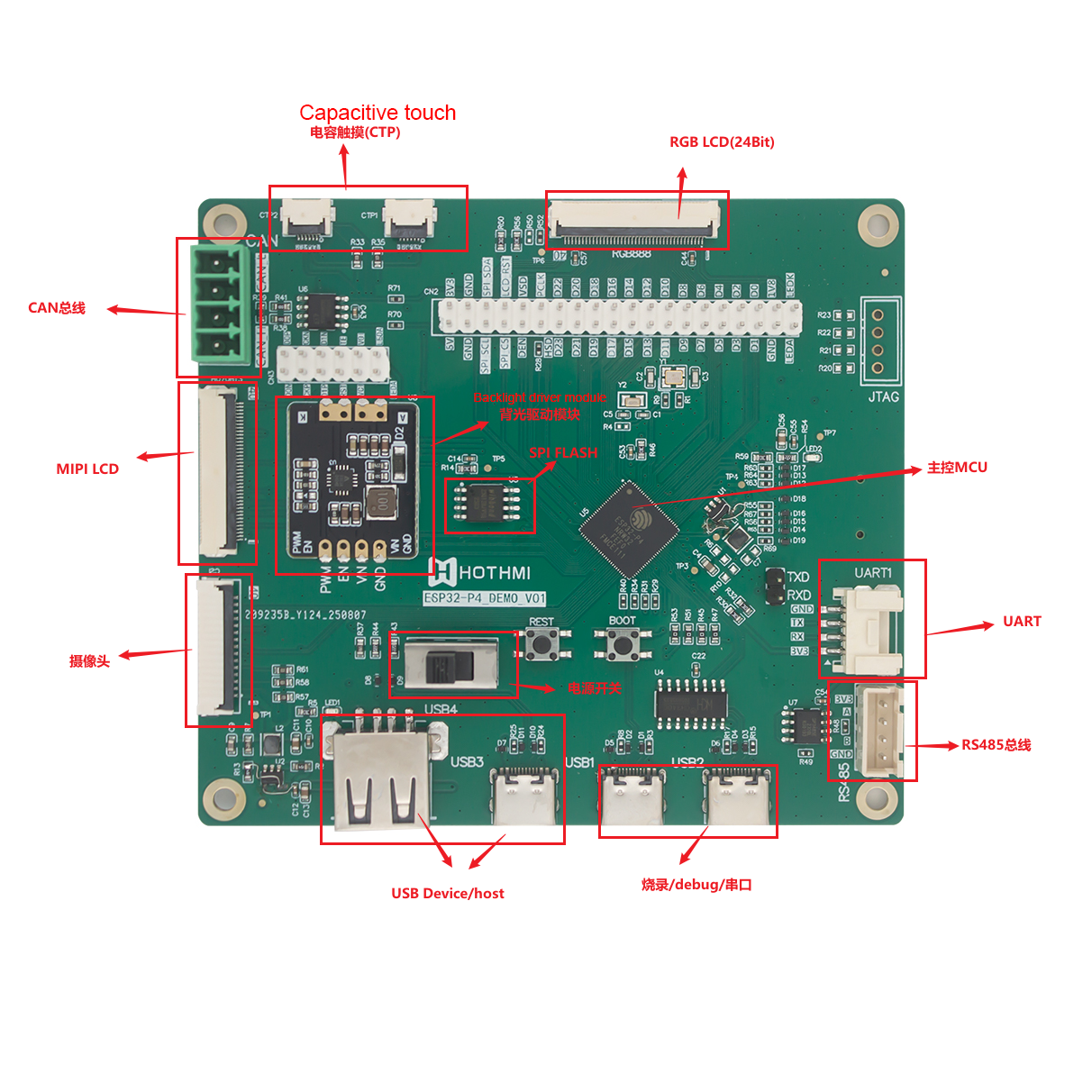

• High-performance control boards: Solutions based on the ESP32 and STM32 support complex graphical interfaces and multitasking.

• High-definition multimedia interfaces: HDMI input control boards, for example, are suitable for applications requiring high-resolution displays.

• Multi-platform compatibility: Full support for development environments such as Arduino, LVGL (Lightweight Graphics Library), Raspberry Pi, and C8051, significantly reducing customer development barriers and time costs.

For more TFT LCD display main control board solutions, please click the link:Test board/main control board

Customized design services

We can provide fully customized main control board design according to customer's product requirements:

• We optimize hardware for specific features, such as adding touch control, wireless communication (Wi-Fi/Bluetooth), and sensor interfaces.

• We optimize power management design to extend battery life or adapt to industrial-grade power environments.

• We provide full support from schematics, PCB layout, firmware development, and debugging to ensure solution reliability and ease of use.

Product Display

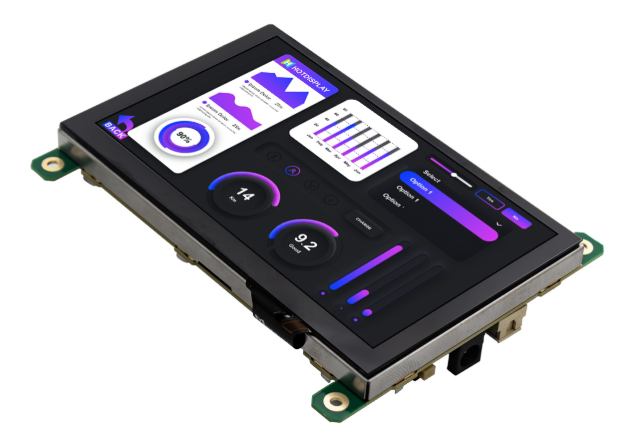

5-inch TFT LCD display module with STM32 controller | 800x480 resolution capacitive touch screen

2. Complete Display Module Solution: Integration Testing and Performance Optimization

In addition to standalone main control board solutions, we also provide complete module solutions including display screens and test boards to help customers quickly realize productization:

Perfect match between display and main control board

We select the appropriate display screen (such as size, resolution, brightness, viewing angle, etc.) based on customer needs and deeply integrate it with the main control board:

• Ensure optimal display performance and avoid compatibility issues (such as timing mismatches and noise interference).

• Provide overall structural design advice to facilitate direct integration into the customer's final product.

Comprehensive testing and verification

We provide strict testing guarantees for module solutions:

• Display performance testing: including color consistency, response speed, and brightness uniformity.

• Environmental reliability testing: including high and low temperature, EMC, and vibration testing to ensure the module operates stably in harsh environments.

• Functional testing: Verifying that indicators such as touch response, communication interfaces, and power consumption meet requirements.

One-stop development system

We provide complete development support, including:

• Hardware reference designs, firmware sample code (supporting graphics libraries such as LVGL), and debugging tools.

• Technical support and documentation help customers quickly get started and conduct secondary development.

• We can provide small-batch trial production or large-scale manufacturing support based on customer needs, accelerating time to market.
