Customized home appliance display solutions

I. Customization notes

Hotdisplay custom displays provide personalized visual solutions for appliances like microwave ovens, washing machines, refrigerators, and ovens. Tailored to each appliance's specifications, usage scenarios, and brand positioning, these displays are designed with precision in size, interaction methods, and protective features. They ensure seamless integration with appliances while delivering reliable performance. Having passed the High-Temperature and High-Humidity 6090 test, they adapt effortlessly to diverse home environments.

II. Customization features

1. Customized volume to adapt to various home appliance forms

Breaking free from the rigid dimensions of traditional displays, our solution allows flexible customization of screen dimensions (length, width, thickness) to match appliance interiors and aesthetics. Whether you need a compact display for microwave controls, ample visibility on refrigerator doors, or space-efficient integration in ovens, we craft precisely tailored displays that fit seamlessly without wasting a single inch, while maintaining the appliance's original design elegance.

2. Waterproof glaze paint, clean one stroke without trace

The customized waterproof paint process allows for flexible adjustments to the product's water resistance, wear resistance, and heat tolerance based on specific appliance applications. For appliances like washing machines and refrigerators that frequently interact with water or operate in humid environments, the display surface coating effectively blocks moisture intrusion, preventing internal components from being damaged by dampness. The oven display's waterproof paint also demonstrates exceptional heat resistance, ensuring stable operation even under high-temperature conditions.

3. Custom capacitive touch, sensitive click

The device features a customizable capacitive touchscreen supporting single-touch and multi-touch interaction modes. Touch sensitivity and response speed can be calibrated according to appliance operation requirements. For microwave quick-heating functions, it delivers instant responsive operation through touch-sensitive design. When handling complex program selections in washing machines, the system accurately identifies swipe gestures and clicks to prevent accidental touches, ensuring user-friendly operation.

4. High temperature and humidity passed 6090 test

The display undergoes rigorous testing in accordance with the high-temperature and high-humidity 6090 certification standards. Even when operating continuously under extreme conditions of 60℃°C temperature and 90% relative humidity, all performance metrics remain stable. This comprehensive testing ensures the display maintains optimal functionality across diverse home environments – whether in humid southern summers or dry northern winters – providing reliable performance for household appliances in various regions and seasons.

3. Examples of home appliance display screens and requirements of adaptation parameters

1. Washing machines

The operation panel of washing machines (particularly drum-type models) frequently comes into contact with detergent residue and water stains, while users require clear visibility of laundry progress. Customizable displays can be tailored to the front panel dimensions of washing machines, featuring 5-7 inch scratch-resistant capacitive screens with enhanced waterproof coating ratings. During southern China's rainy season or in humid environments inside the machine, these screens maintain stable operation without the "black screen" or "touch response delay" issues common in traditional LCD displays.

2. Refrigerators

Refrigerators (especially French multi-door and cross-door models) have ample door panel space, which is the core application scenario for custom display. 8-12 inch large capacitive screens can be customized according to the width of refrigerator doors, and even curved screens (for arc-shaped door refrigerators).

3. The oven

Ovens can reach temperatures exceeding 200℃°C. Traditional displays often suffer from issues like "screen overheating" and "muddled images" due to their poor heat resistance. Our custom solutions feature 4-6 inch high-performance heat-resistant capacitive screens optimized for oven environments, with enhanced contrast settings that ensure crystal-clear text visibility even when the panel heats up during operation.

IV. Display customization/modification parameters

Panel protection:

Surface treatment (AG anti-glare, AF anti-fingerprint, AR anti-reflective coating), cover plate material (tempered glass, PMMA acrylic, PC polycarbonate), thickness 0.5mm~3mm optional.

Anti-environmental performance:

Corrosion resistance rating (≥3H pencil hardness), waterproof rating (IP65/IP67, for kitchen/bathroom appliances), corrosion resistance (salt spray/oil resistance, for outdoor or special environments).

Touch technology:

Capacitive (CTP, multi-touch 2~10 points), pressure sensitive touch (accurate operation).

Touch precision:

Less than ±2mm, response speed less than 100ms, support waterproof touch (IP65 class, suitable for kitchen appliances).

Drive integration:

The integrated design of the touch IC and display driver board reduces the complexity of wiring.

V. Recommended home appliance

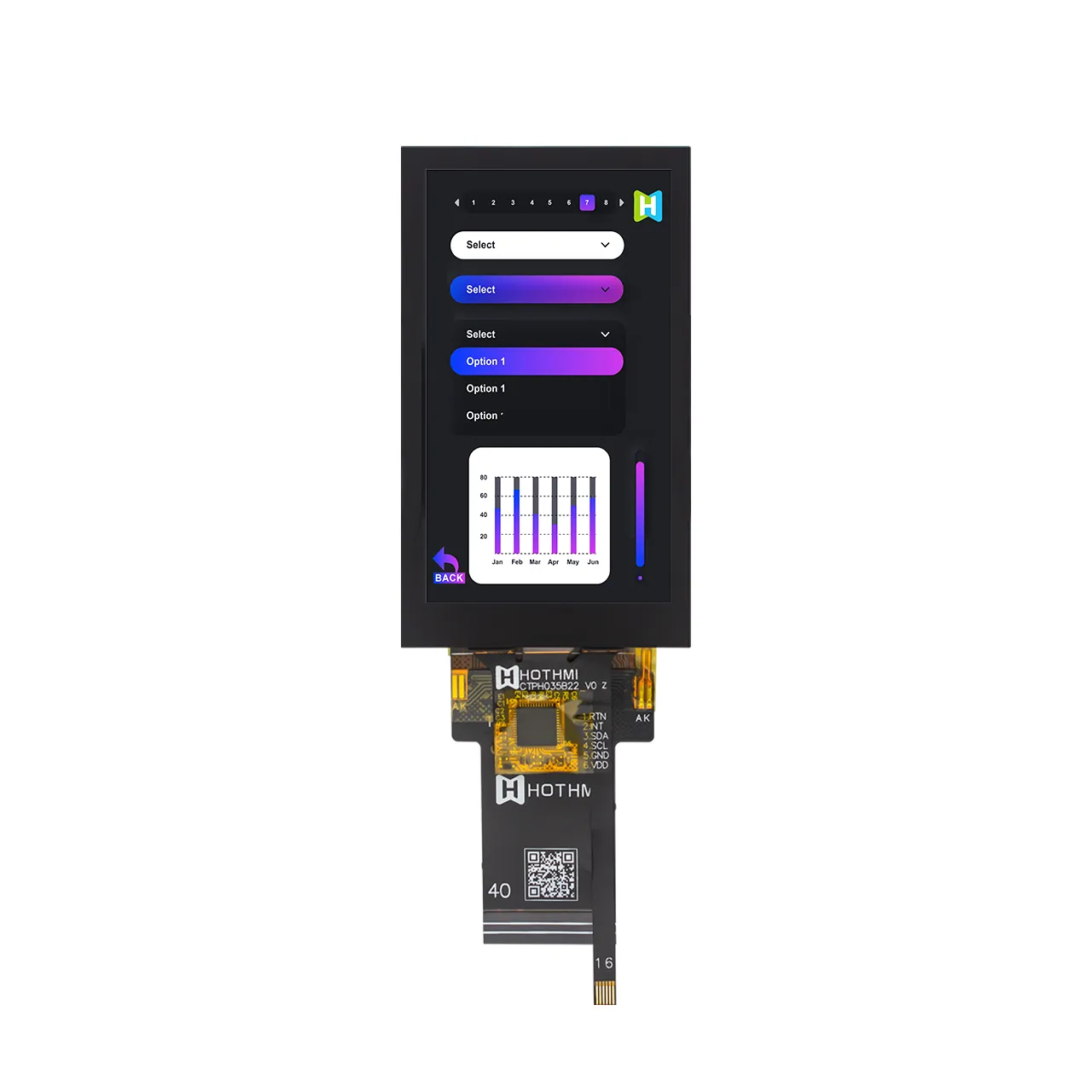

TFT-H030A10FWIST3C40

▶ Type: 3-inch TFT LCD Display

▶ Display Pixels: 480x854

▶ Dimensions (mm): 43.5x75.4x3.8

▶ Active Dimensions (mm): 36.72x65.28

▶ Application: Industrial Controllers

▶ Viewing Angle: IPS Full Viewing Angle

▶ Brightness: 300cd/m²

▶ Interface: RGB

▶ Pinout: 40

▶ Special Instructions: ESD 8KV

▶ Operating Temperature: -30°C to 80°C

▶ Driver Chip：ST7701

▶ Supply Voltage: 3.3V

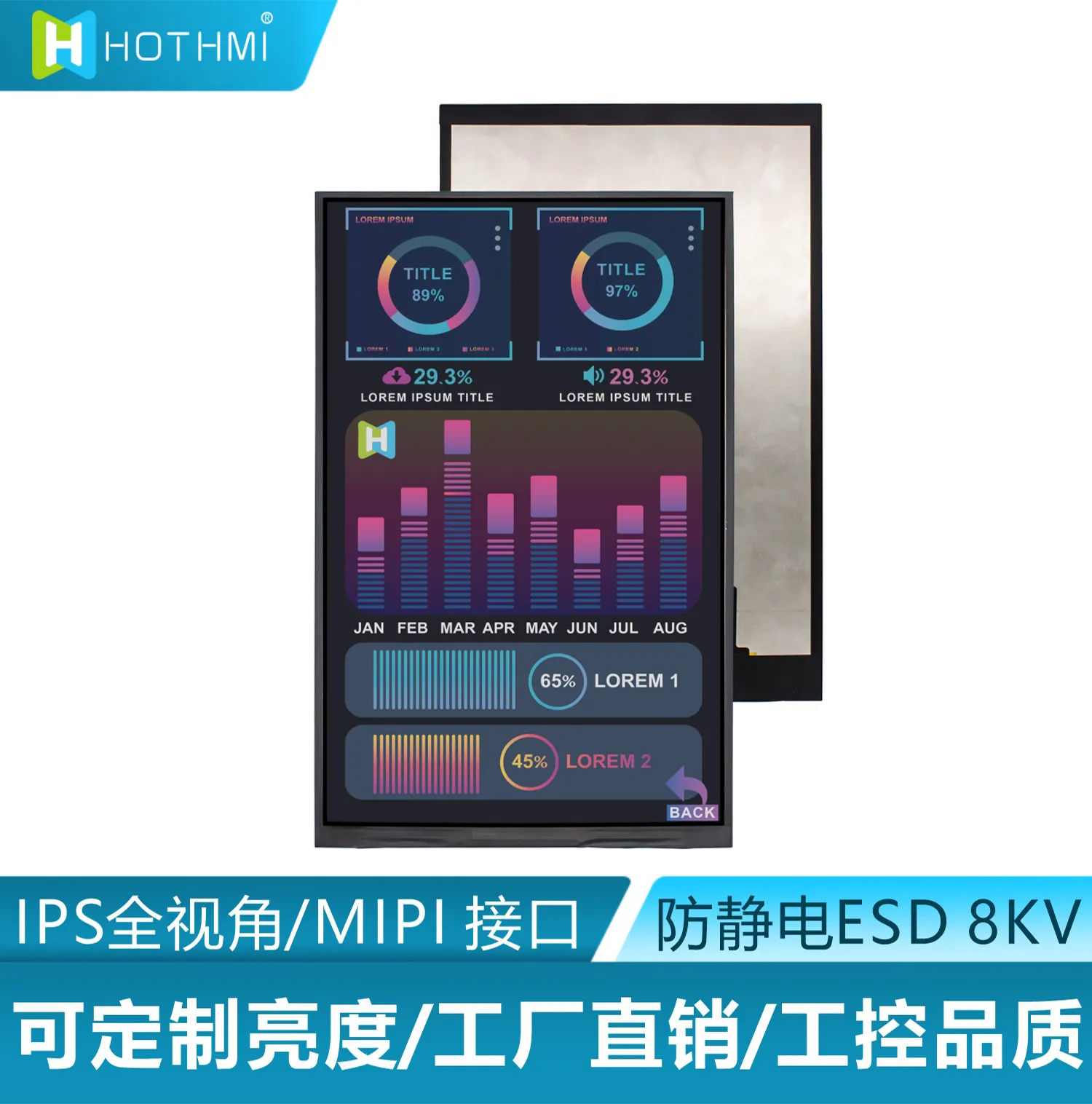

TFT-H080A11HDIFT4C30

▶  Type: TFT high-definition capacitive screen

▶  Display pixel: 800x1280 dot matrix

▶  Dimensions (mm): 124.6x194.1x4.7

▶  Display inch: 8.0“

▶  Effective size (mm): 107.64x172.224

▶  Application: Charging station

▶  Viewing angle: IPS (U85/D85/R85/L85)

▶  Brightness: 450cd/m2

▶  Pin: FPC-30PIN

▶  Interface: MIPI 4L

▶  Special Reminder: Anti static ESD 8KV

▶  Working temperature: -20~70 ℃

▶  Power supply voltage: 3.3V

▶  Driver chip: JD9635
