Customized LCD display

1、Flexible design, tailor-made - segment code LCD display

Segment LCD is also called pen segment LCD. It refers to a fixed display screen that displays or does not display at a specified position. It can only be used for simple display of characters and numbers. It is mainly used to replace LED digital tubes (composed of 7 or 16 It consists of a pen segment and is used to display the numbers 0 to 9), such as the display on calculators, clocks, and landline phones. The displayed contents are all numbers, which is relatively simple. In some cases, it can also be used to customize the display of English letters (A~Z). The customization is more flexible and the operation is simple. This is why the broken code display has an absolute price advantage compared to other types of displays.

Customized segment code display:Tailor-made according to customer requirements, this process is also called mold opening.

Judging from the displayed content, it can be customized in two different ways: 7-level and 16-level（Also called "Mi 8" field code display）.

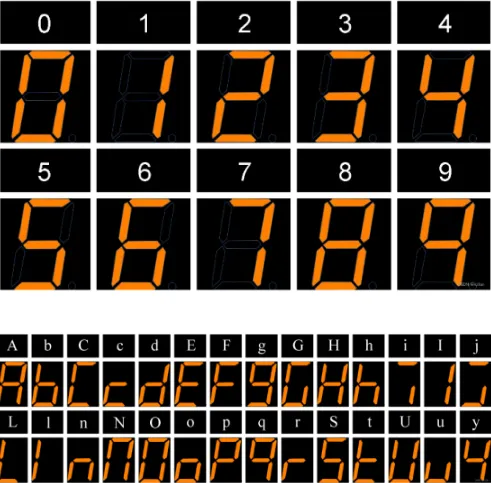

The rendering of using a 7-segment display to represent Arabic numerals and English letters is as follows:

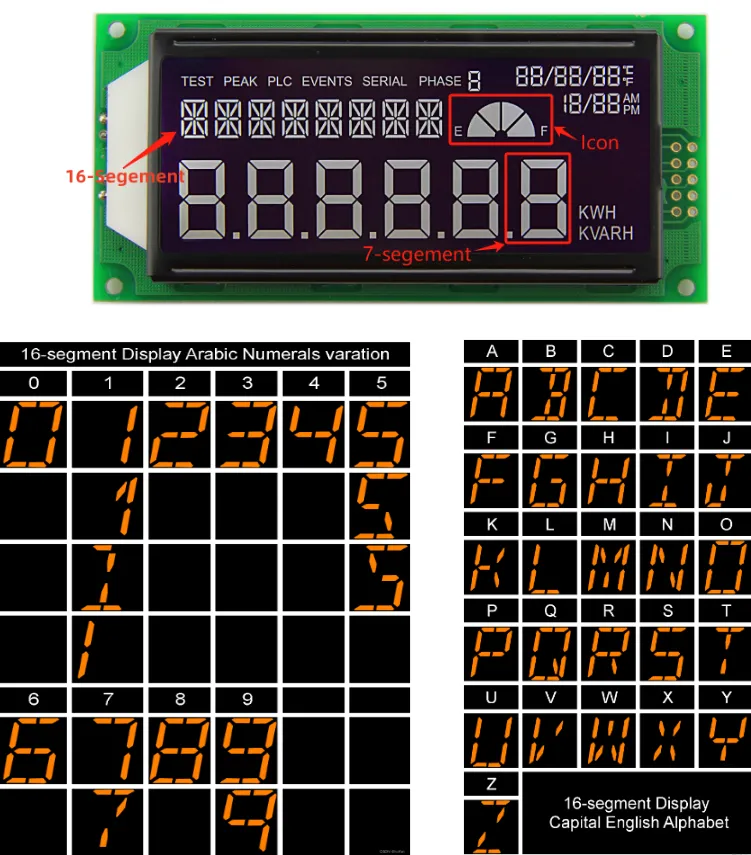

The rendering of using a 16-segment display to represent Arabic numerals is as follows:

For more display examples, please refer to the link below.

7-segment and 16-segment Arabic numerals and English letters display effect reference picture

Twisted nematic (TN), super twisted nematic (STN)

According to customer needs, we support customizing different types of polarizers onto segmented displays, and through repeated debugging with different combinations, we can obtain the most suitable application solution for customers.

Reflective, transflective and transmissive polarizers

The characteristic of reflective polarizer is that it can make the display screen have a good display effect in the sunlight without backlight; the characteristic of transmissive polarizer is that it can allow the backlight to pass through the polarizer 100%, making the display screen reach a very high The brightness is high, so that the display effect is optimal, but this kind of fully transparent polarizer cannot be separated from the backlight and visible in the sun. Semi-transparent and semi-reflective polarizers can combine the advantages of the first two, with low power consumption, visible in sunlight, and still clearly visible in dark environments due to the backlight.

For details on the differences between fully transparent, semi-transparent, and semi-transparent and semi-reflective polarizers, please click on the link to learn more about: Transflective TFT

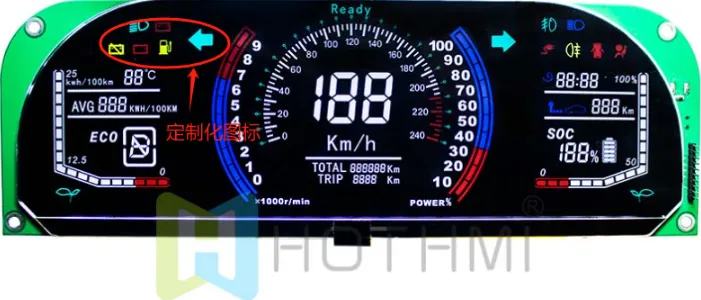

Customized icons: Icons can be customized according to customer needs

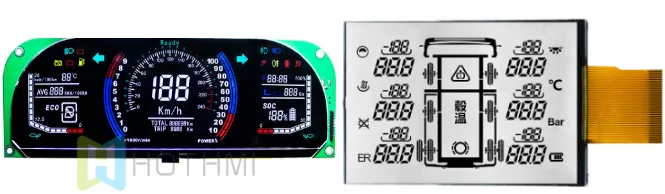

Printing color:Text or patterns of various colors can be printed on the segment code LCD display according to customer needs. It has a wide color gamut, moderate color temperature, and diverse choices. Color or monochrome segment code LCD displays can be customized.

Custom size:It can be "tailor-made" for customers, and the sizes can be customized according to needs, avoiding customers from changing the size of their own products to cater to the display screen.

 2、Common Categories Of LCD Screens And Customized Services

Common LCD categories

The categories of LCD monochrome displays we provide include: character dot matrix LCD, graphic dot matrix LCD, COG and segment code LCD.

Our Customized Services

Size and Dot Count: Glass size and dot count can be customized according to customer requirements.

Active Area: Defines the size and location of the area on the screen where the image is actually displayed.

Total Module Thickness: The total thickness of the module can be controlled by adjusting the backlight, glass, PCB, and other factors.

Customized Bezel: Customize the bezel material, size, and width of all four sides. This is required for achieving a "full screen" or for embedding into a specific structure.

Polarizer Orientation: Change the angle of the polarizer to accommodate different viewing angles (for example, 0°, 45°, 90°, and 135° are commonly available) Mode.

Connector Customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require. Position the FPC (flexible printed circuit) connector on the top, bottom, left, or right side, and define its protrusion length to facilitate board layout and wiring.

PCB Modification: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to perfectly suit your application.

Backlight Color Customization: Module backlighting is available in a variety of combinations: no backlighting or with yellow-green, blue, white, amber, red, or RGB backlighting, with up to 48 different effects. For a more detailed description of the display effects achieved by combining different modes, please click the link: LED Backlight & LCD Colors.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that keeps your connections streamlined and secure.

For more details on customized segment LCD display, please contact us directly!
