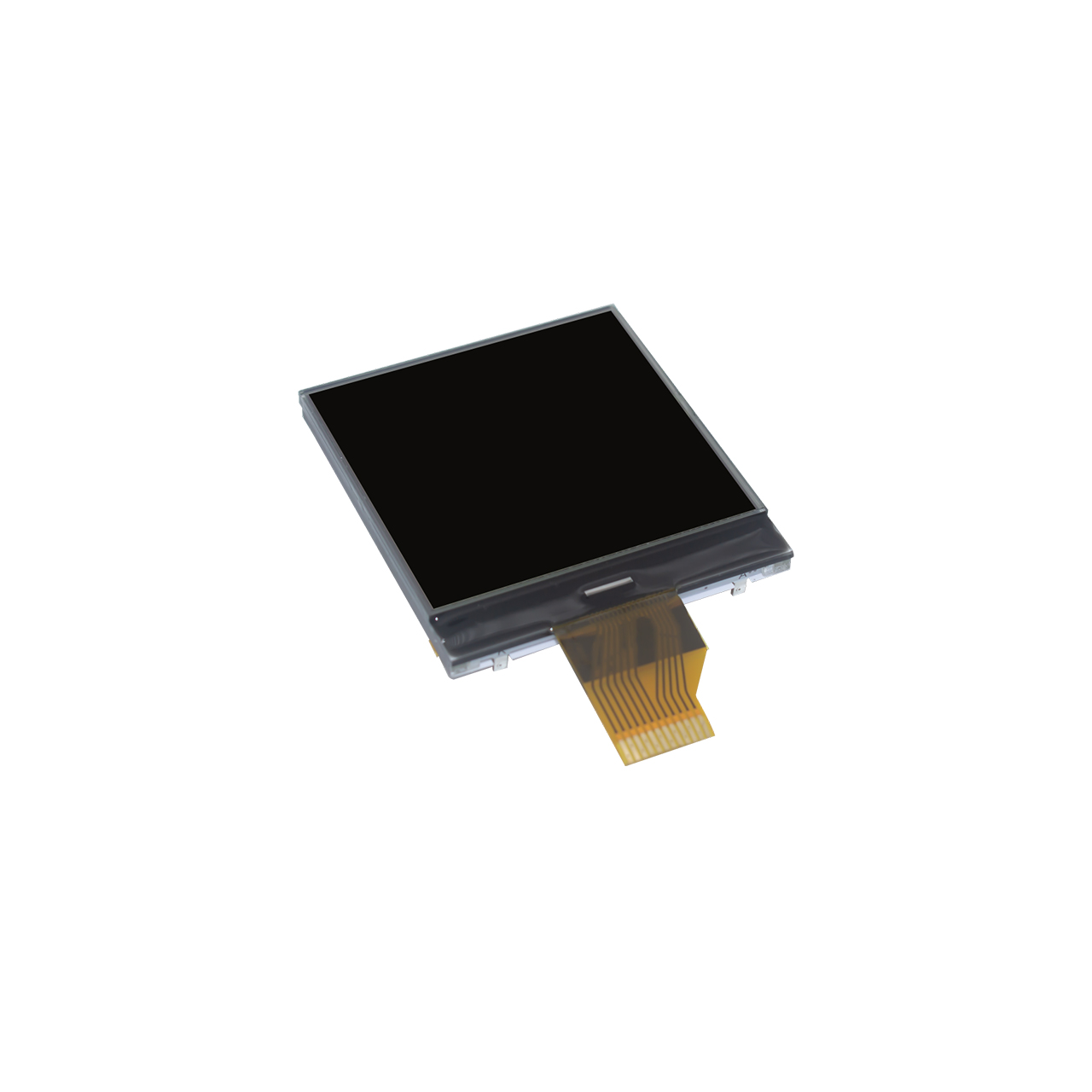

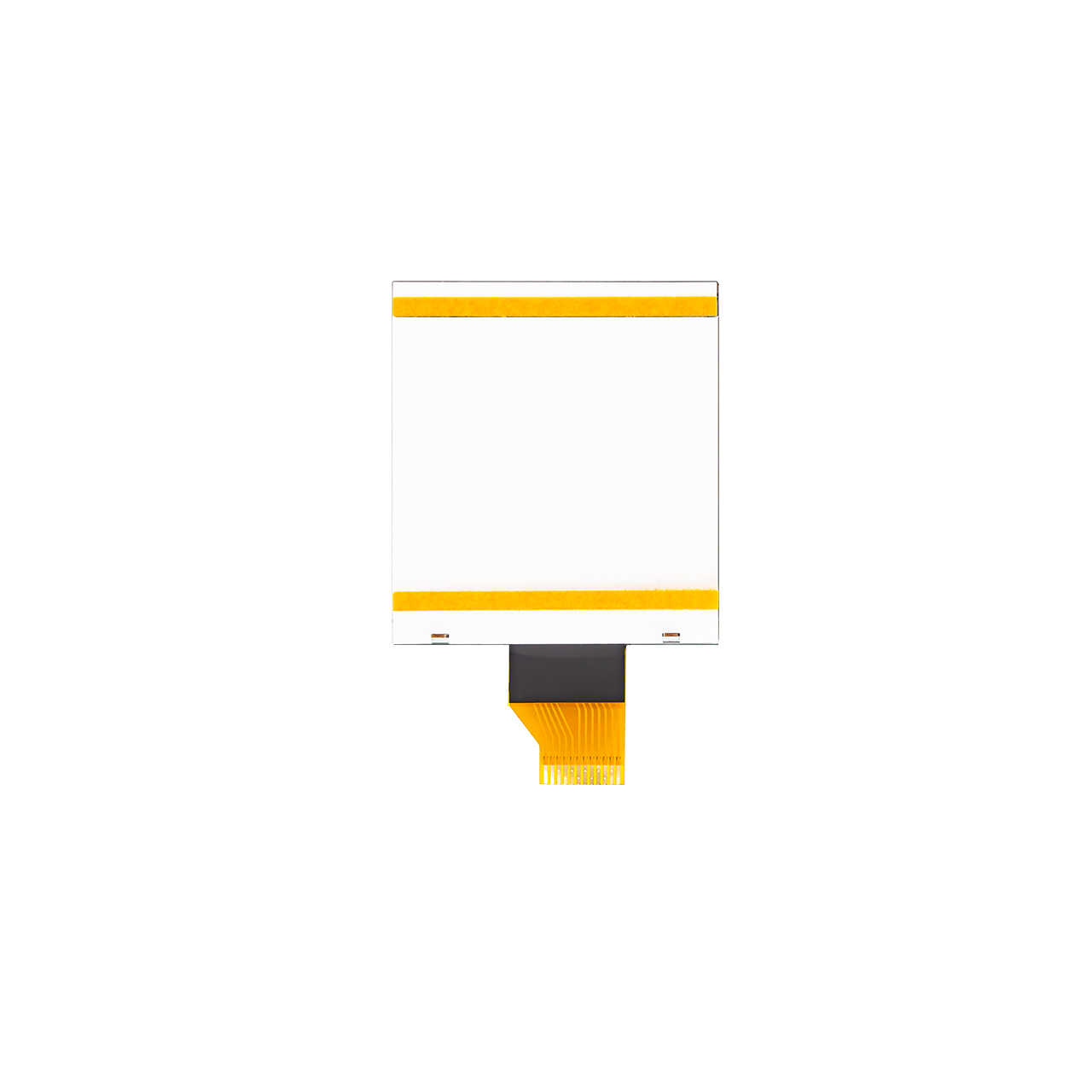

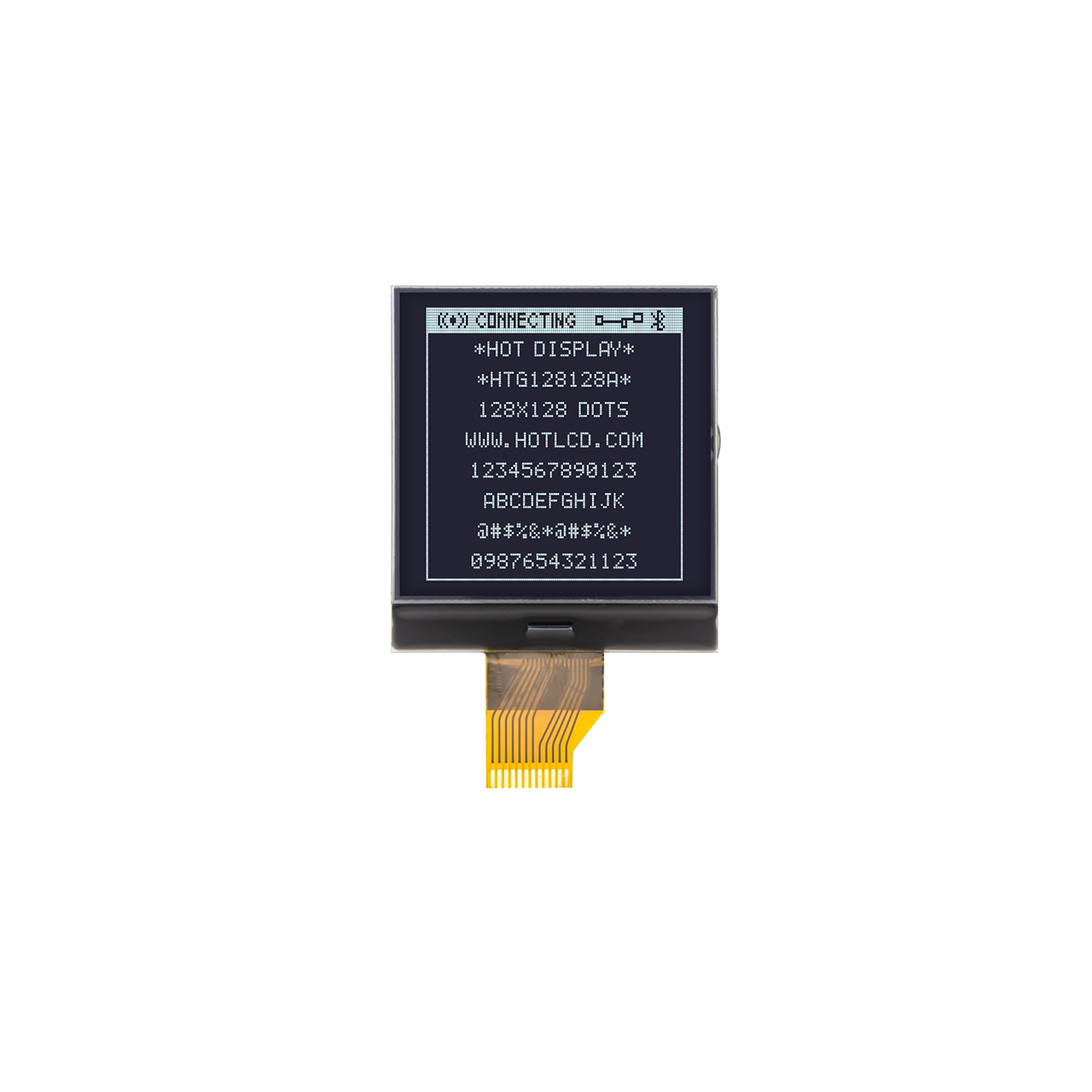

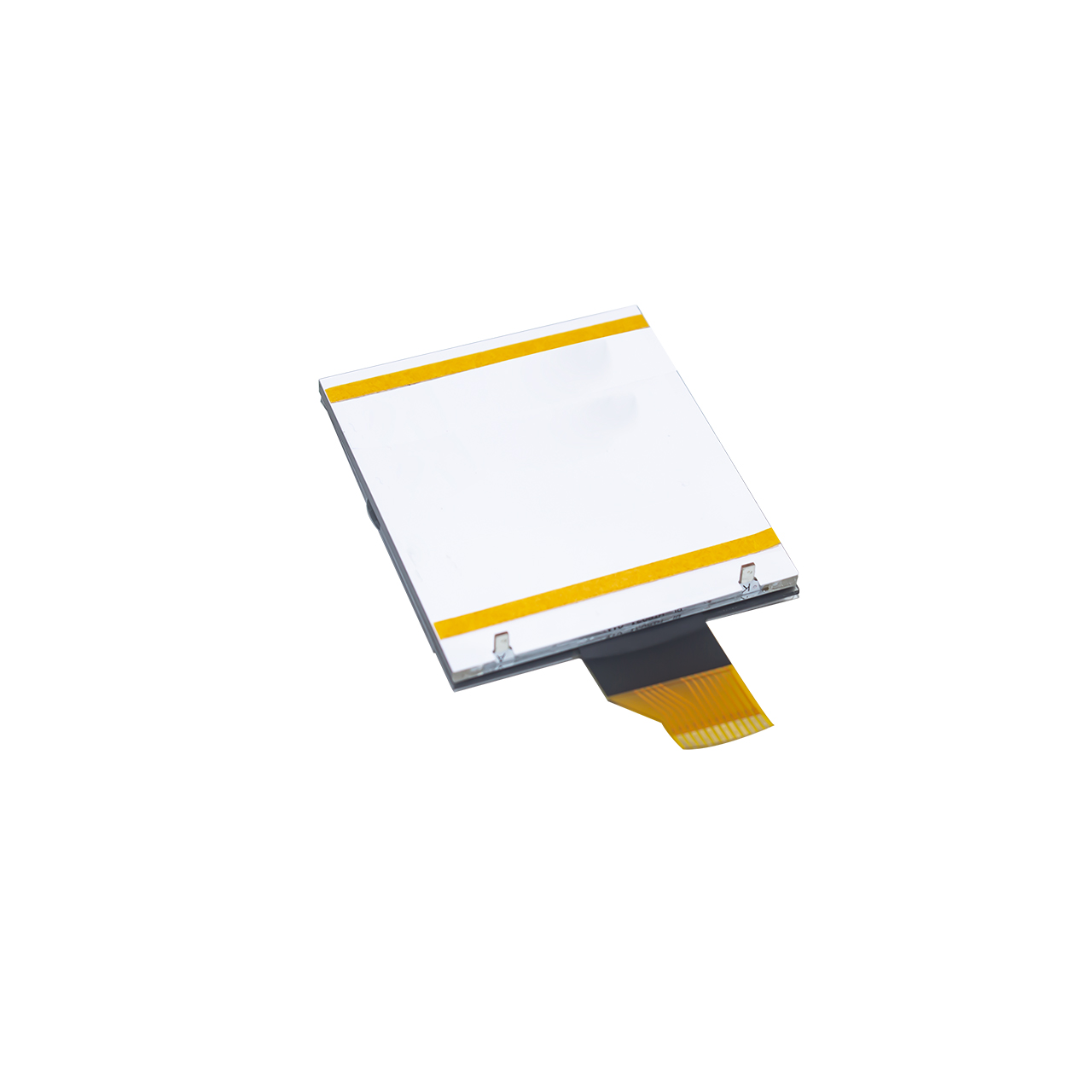

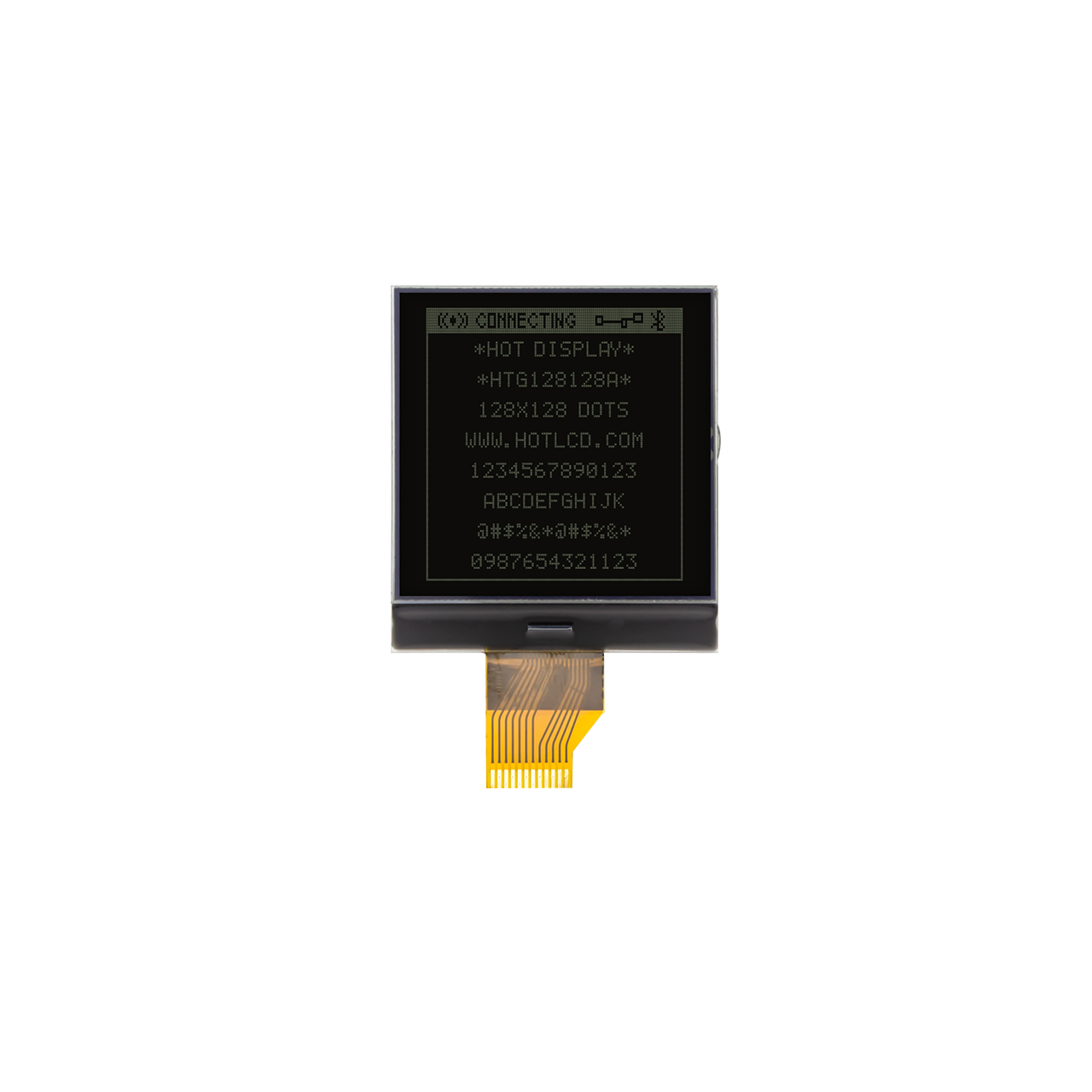

2.2 inch 128X128 Graphic COG LCD | DFSTN - | Black background with white text | SPI | UC1617S | Arduino
This HOT Display 128x128 Graphic Glass Chip (COG) LCD is a black background with white pixels. This translucent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses polarizer reflectivity to reflect the image to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions. This display can also be configured with yellow-green, white, green. Amber, blue, red, orange and other backlights as needed, and can be selectively matched with STN+,STN-,DFSTN-,FSTN+,TN+,TN- and other modes.
This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh working conditions and will not operate properly when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 12:00, an operating voltage of 3.3V, and is RoHS compliant。
