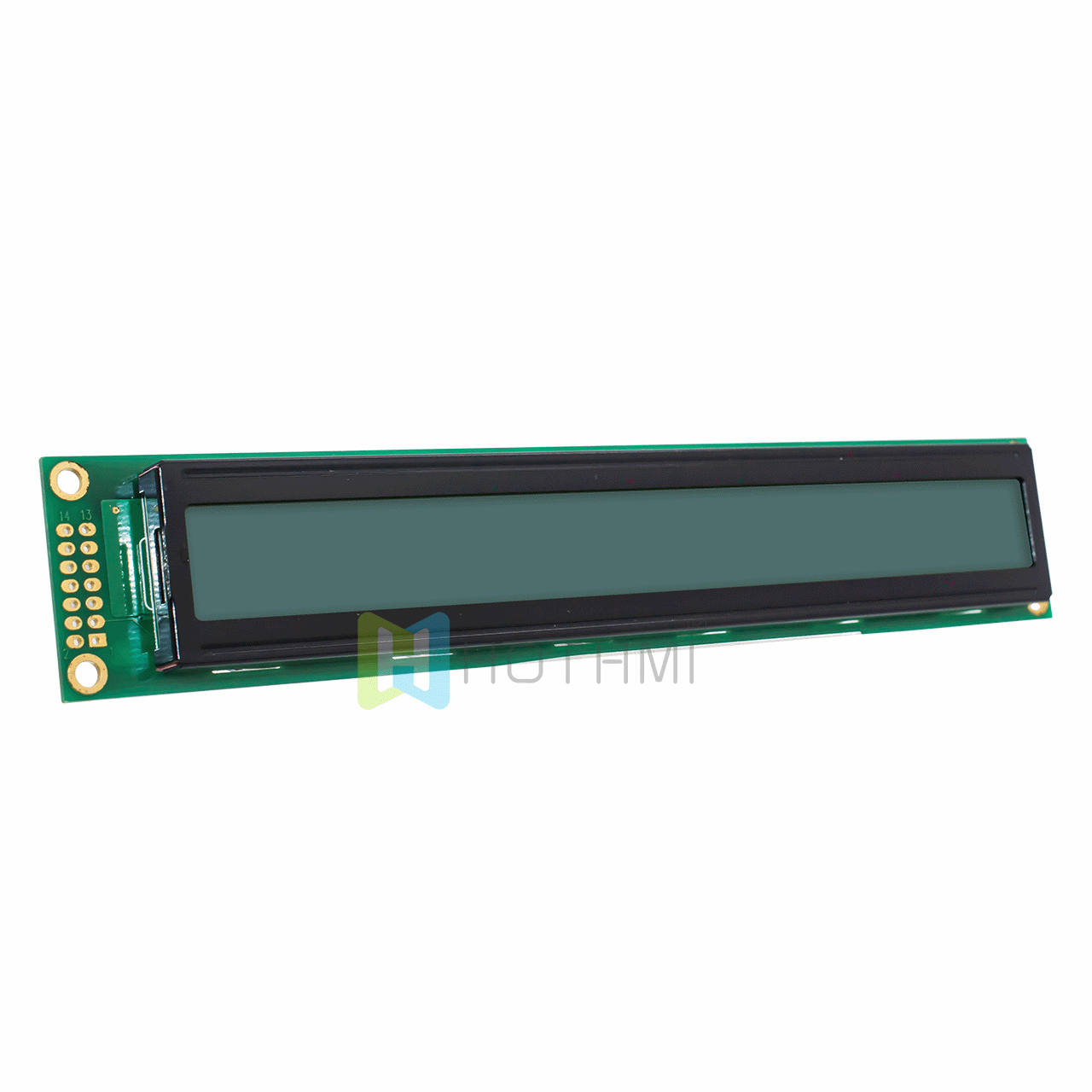

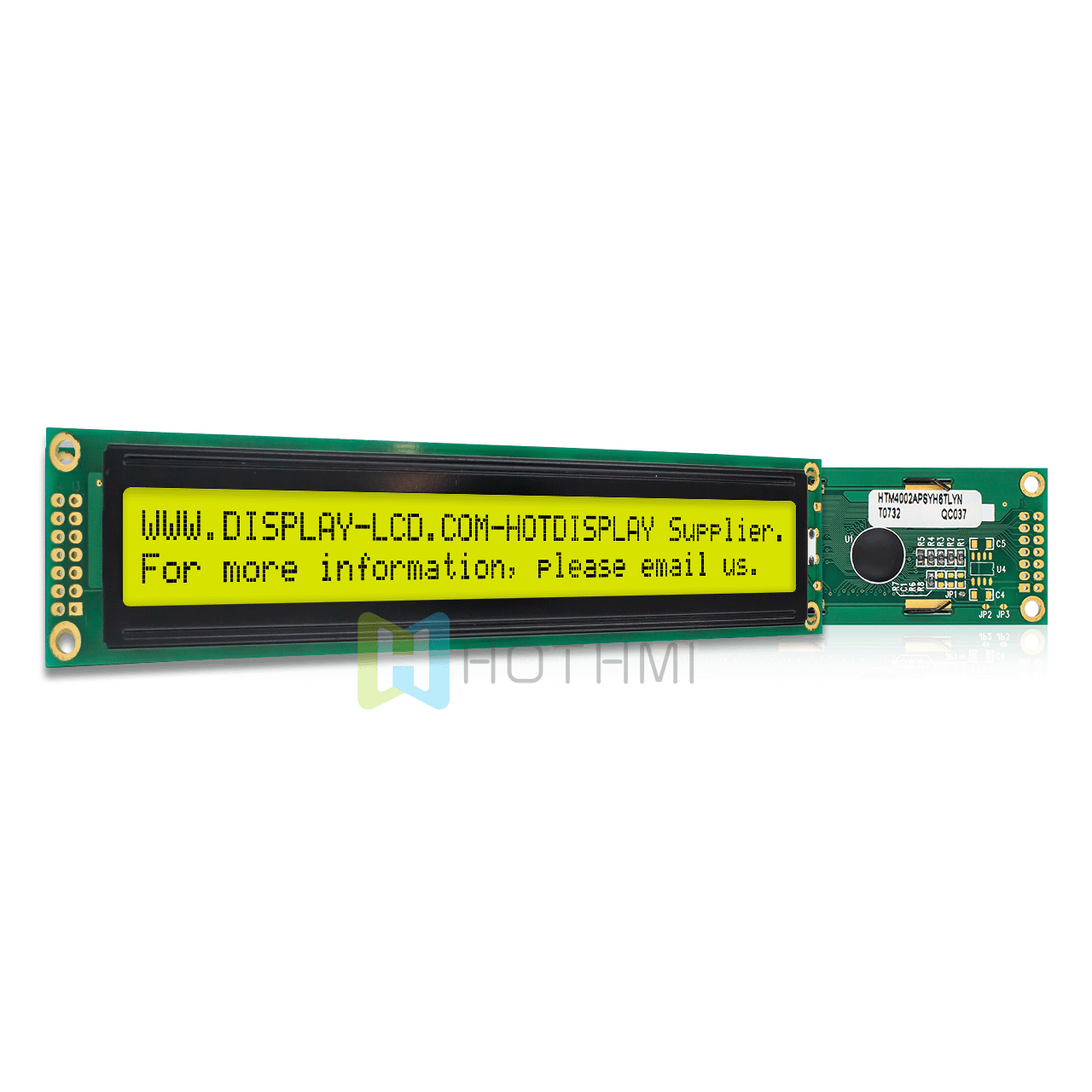

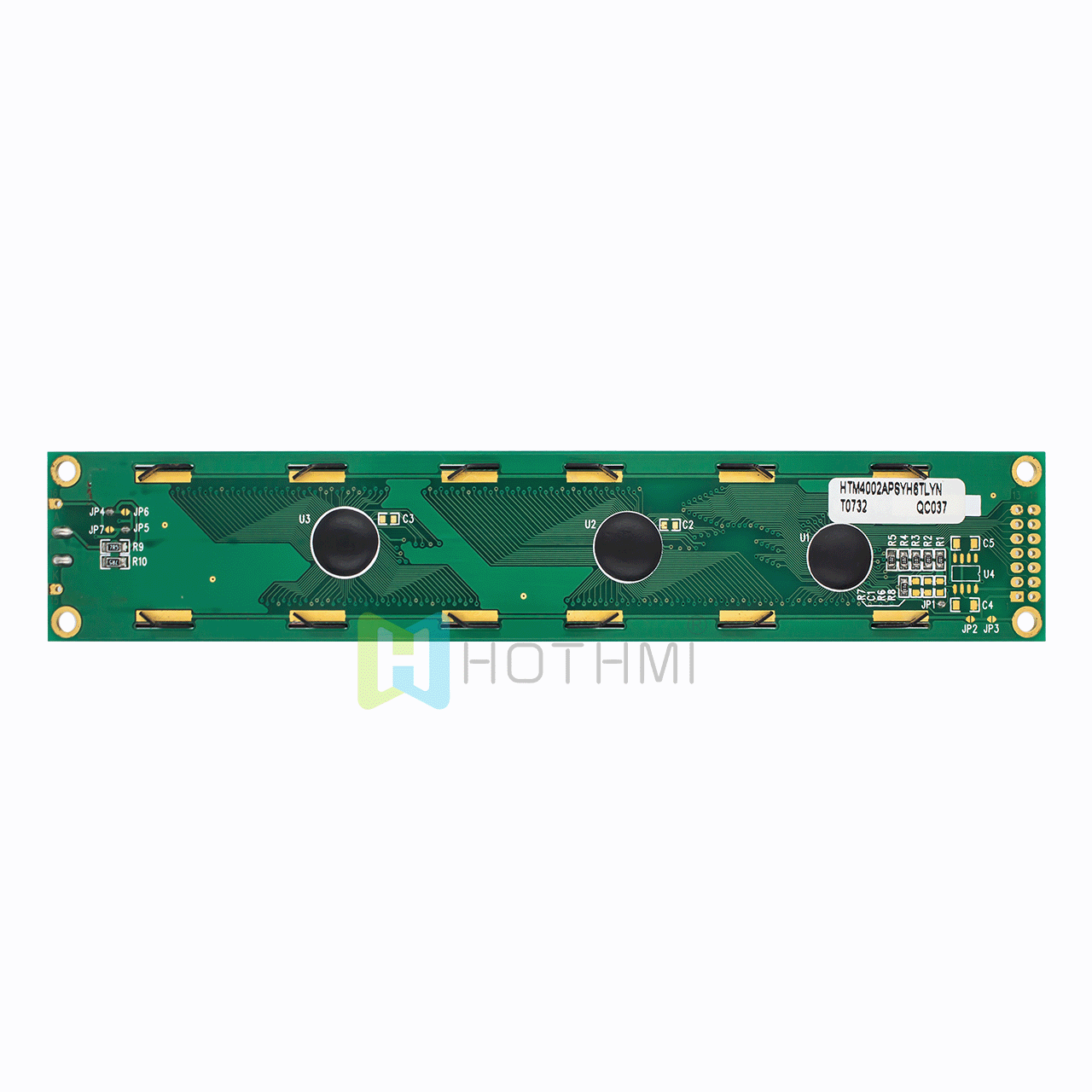

40x2 Character LCD Module | STN (+) With Yellow-Green Backlight

40x2 Character LCD Module | STN (+) With Yellow-Green Backlight

▶ Model: HTM4002A-11Y-A5P

▶ Type: 2X40 character LCD Module
▶ Display content: 40x2 characters
▶ Dimensions (mm): 182.00x33.5x14.0
▶ VA size (mm): 155.1x16.0
▶ AA size (mm): 147.5 x 11.5
▶ Pixel pitch mm: 0.65 x 0.7
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow/green light
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

2X40 character LCD Module | monochrome STN positive display | with yellow-green backlight | Arduino display | Arduino | 5.0v
The 2X40 character LCD Module 40 line - Character 2 - with green background is the perfect solution for applications requiring operating voltage of 3.3V. This reflective LCD screen is clearly visible in high ambient light, while offering a wide operating temperature range of -20 to 70 degrees Celsius. The optimal view is 6 and the screen has no backlight, so it is very power efficient. It has a controller built in - ST7066U. This LCD offers a slim, compact design, reliable performance, and is made of high-quality materials that meet or exceed industry standards.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-4002A-11Y-A5P	April 04, 2024	2.90MB

item	Specification content	Cell
Model number	HTM4002A-11Y-A5P
Word × line	40字 × 2行	dots
Module size	182.0 x 33.5 x 14.0 (MAX)	mm
VA size	155.1（W） × 16.0（H）	mm
AA size	147.5 x 11.5	mm
Dot (pixel) spacing	0.65（W） × 0.70（H）mm	mm
IC	ST7066U
Applied voltage	5V	V
backlight	Yellow/green backlight
mode	STN+
Driving mode	1/16 duty cycle
type	Character LCD module
Type of polarizer	Semi-transparent reflection
