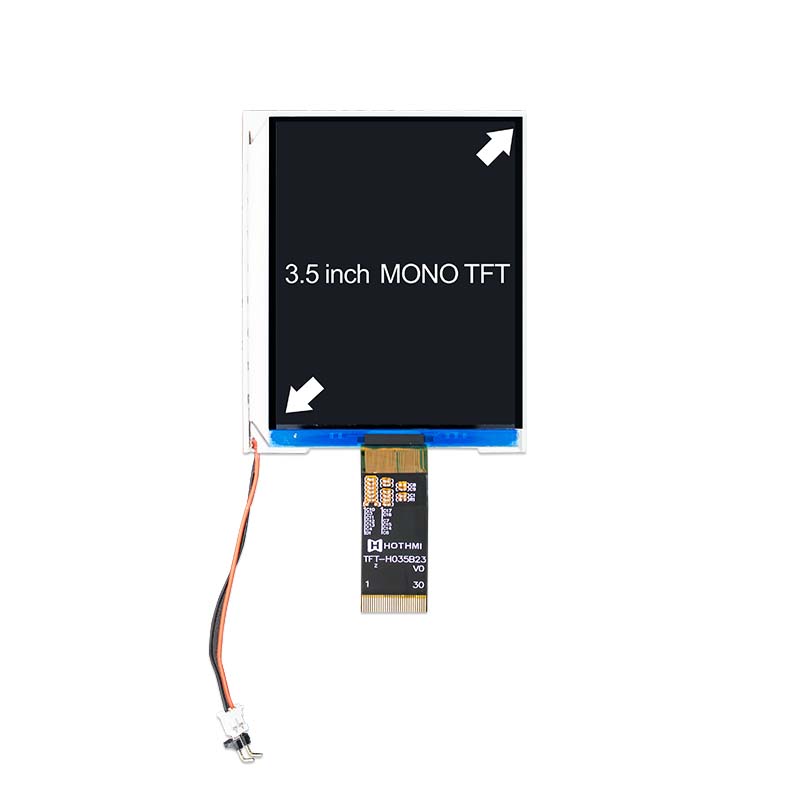

3.5 Inch Monochrome TFT LCD Display | 240x320 High Contrast

▶ Model: TFT-H035B23QVIST3N30-WLED-V1

▶ Type: Monochrome TFT (vertical screen)
▶ Display pixels: 240x320 Px
▶ Overall dimensions (Mm): 65.58x82.74x7.8
▶ Diagonal size: 3.5"
▶ AA size (Mm): 53.28x71.04
▶ Application: Vehicle-mounted instrumentation
▶ Viewing angle: IPS full viewing angle
▶ Backlight/Brightness: 350cd/M²
▶ Pin: FPC-30PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -30~85℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7512

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
EZUI-Let adapter board/MCU/40PIN
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)

Product Description
Customized Services
Attributes

TFT-H035B23QVIST3N30-WLED-V1 | 3.5-inch MONO black and white TFT LCD display | IPS full viewing angle | High brightness and high contrast 1000:1 | 240x320 Px | MCU interface | White backlight

Product Features:

Clear Display: The high resolution of 240x320 Px ensures display clarity, allowing images and text to look great on portrait screens.

Wide viewing angle technology: Adopting IPS full viewing angle technology to ensure clear images at various angles, making information easy to view.

Suitable for vehicle-mounted instruments: Specifically designed for vehicle-mounted instruments and meters, it meets the requirements of the automotive

environment and is stable and reliable. Anti-static design: It has anti-static ability to prevent the impact of static electricity on the display screen, and has ESD 8KV protection to improve the stability and durability of the product.

Low-power design: Using a low-power MCU interface method helps extend the device's battery life and improve overall energy efficiency.

Industrial grade temperature resistance: operates in a wide operating temperature range (-30~85℃), adapting to various environmental conditions.

Appearance design: Compact appearance size (65.58x82.74x7.8mm), suitable for car dashboard design with limited space.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections

Touchscreen Add-On Components:

Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design.

Interface Customization:

Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals.

Cover Glass:

Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H035B23QVIST3N30-WLED-V1
Diagonal size	3.5”	Inch
Resolution	320x240	Dot
Dimensions	65.58x82.74x7.8	mm
Active area (AA)	53.28x71.04	mm
LCD type	3.5” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	3：2
Backlight type	LED white
TFT driver IC	ST7512
Brightness	350cd/m2	cd/m2
Operating temperature	-30~85℃	℃
Storage temperature	-30~85℃	℃
