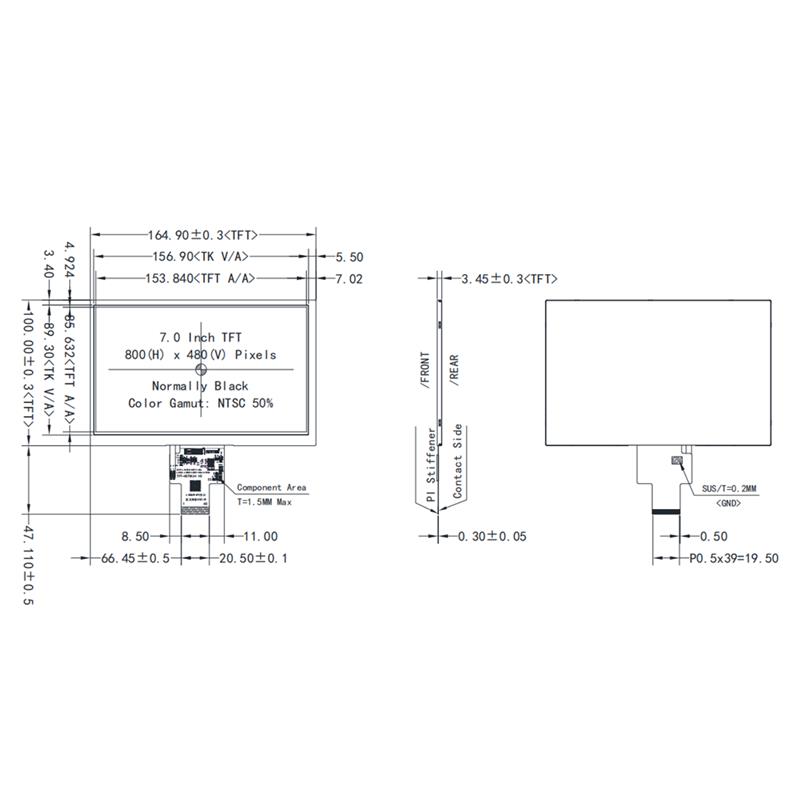

7-inch Ultra Wide Temperature TFT LCD 800x480 Display GH7006

TFT-H070A34SVIGH9N40 7-inch Ultra Wide Temperature TFT LCD 800x480 Display GH7006

This Ultra Wide Temperature TFT LCD is engineered to deliver reliable visual performance across extreme environmental conditions, making it a superior choice for industrial and outdoor applications. The Ultra Wide Temperature TFT LCD module features a 7.0-inch diagonal display with 800(H) x 480(V) pixel resolution, providing clear and detailed imagery.While the overall module thickness is as slim as 3.45mm for the non-touch version and 4.96mm with capacitive touch. A standout characteristic of this Ultra Wide Temperature TFT LCD is its exceptional operating temperature range from -30℃ to +85℃ and storage range from -40℃ to +90℃, ensuring functionality in freezing cold or scorching hot environments. The optical specification includes wide viewing angles of U85/D85/R85/L85 degrees (contrast ratio >10), a typical contrast ratio of 1000:1, and brightness options up to 900 cd/m² without touch or 800 cd/m² with capacitive touch panel (CTP). The Ultra Wide Temperature TFT LCD supports both MIPI and LVDS interfaces on a single 40-pin connector, offering flexible integration. Additionally, the module integrates the GT911 capacitive touch controller with I2C interface, supporting up to 5-point touch, 6H surface hardness, and 80% transmittance. With LED backlight life rated at 30,000 hours (typical) and low power consumption architecture, this Ultra Wide Temperature TFT LCD delivers long-term reliability. The inclusion of built-in reset circuitry (10KΩ + 0.1uF) and comprehensive ESD protection (±4kV contact, ±8kV air discharge) further enhances its ruggedness, making it a truly industrial-grade solution.

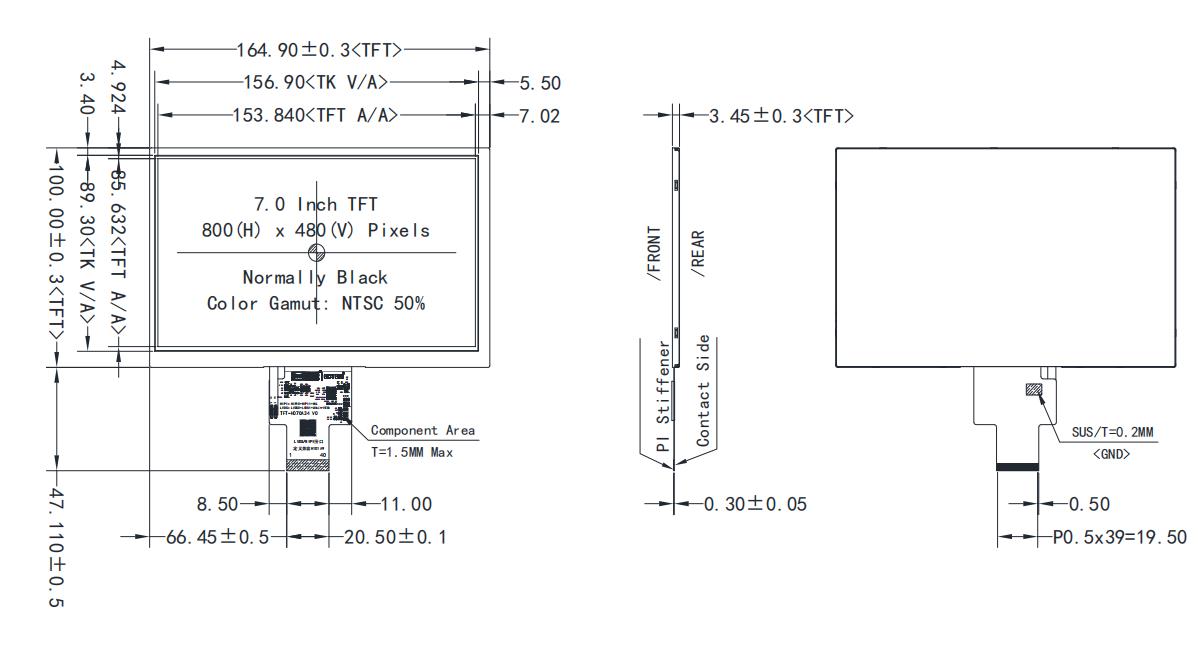

Specification of the 7-inch Ultra Wide Temperature TFT LCD

Key Application Scenarios Of the 7-inch Ultra Wide Temperature TFT LCD

Thanks to its robust design and wide operational envelope, this Ultra Wide Temperature TFT LCD is ideally suited for demanding environments where consumer-grade displays would fail. Primary applications include automotive infotainment and instrument clusters, where the Ultra Wide Temperature TFT LCD must withstand cabin temperature extremes from sub-zero winter starts to summer heat soak. Industrial control systems and human-machine interfaces (HMIs) in factories, outdoor kiosks, and smart energy equipment benefit directly from the Ultra Wide Temperature TFT LCD’s ability to operate reliably from -30℃ to +85℃ without image degradation. Medical devices, such as patient monitoring systems and portable diagnostic tools, require the stability of an Ultra Wide Temperature TFT LCD to ensure accurate readouts in varying ambient conditions. Furthermore, the module is perfect for marine navigation, aviation ground support equipment, and agricultural machinery displays, where direct sunlight readability (900 cd/m²) and touch responsiveness across temperature swings are critical. The Ultra Wide Temperature TFT LCD also supports always-on public information displays in transportation hubs, as its LED backlight delivers consistent luminance with only 8% decay after 5000 hours of continuous operation. With optional capacitive touch (GT911) and compatibility with both LVDS and MIPI interfaces, this Ultra Wide Temperature TFT LCD simplifies integration into existing designs for point-of-sale terminals, security systems, and rugged tablets. The 40-pin FPC connector pinout is clearly documented, and reference initialization code is provided, reducing development risk. In every scenario, the Ultra Wide Temperature TFT LCD’s high contrast ratio (1000:1) and 50% color gamut ensure that graphics remain vivid and readable, even when the display is subjected to thermal stress or prolonged operation。
