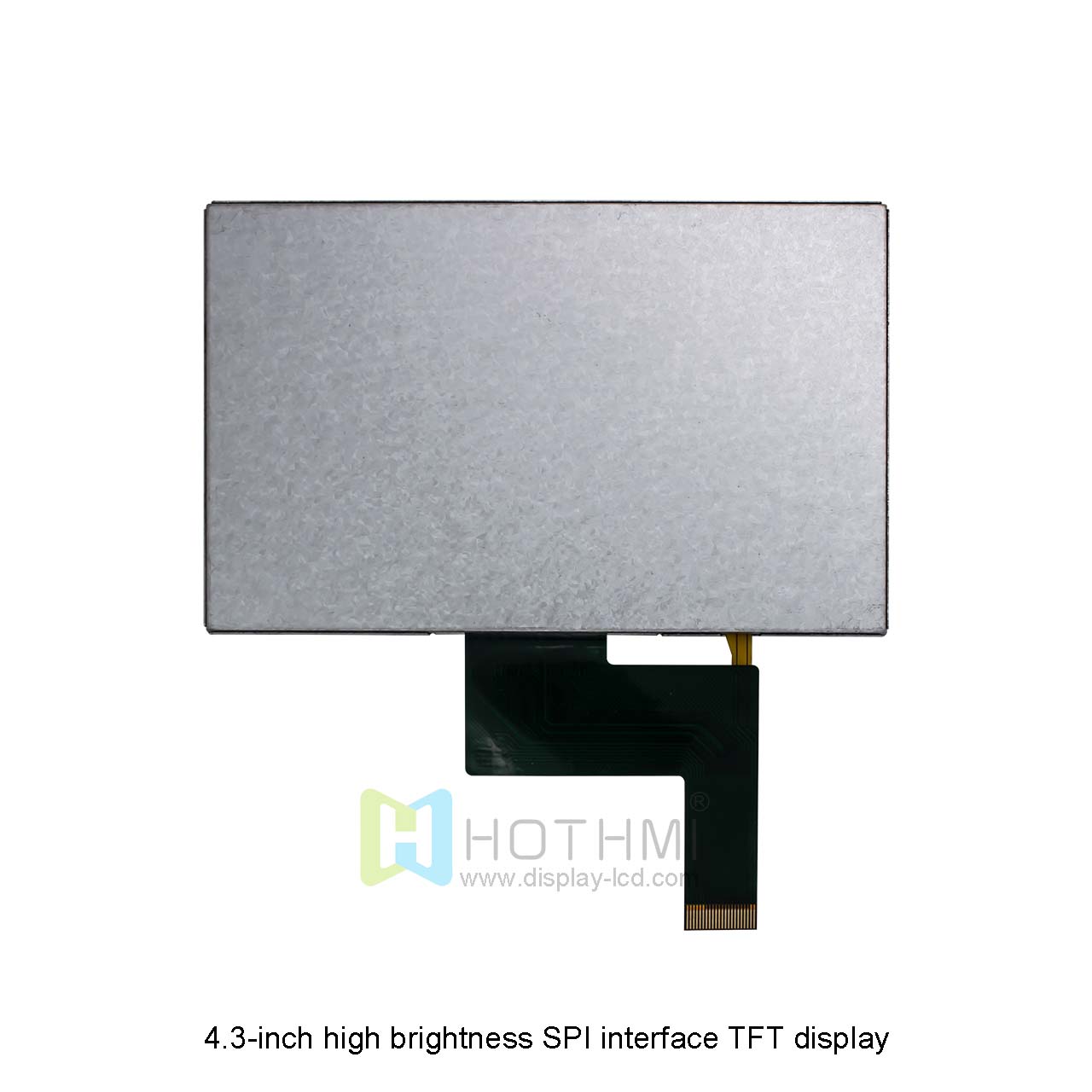

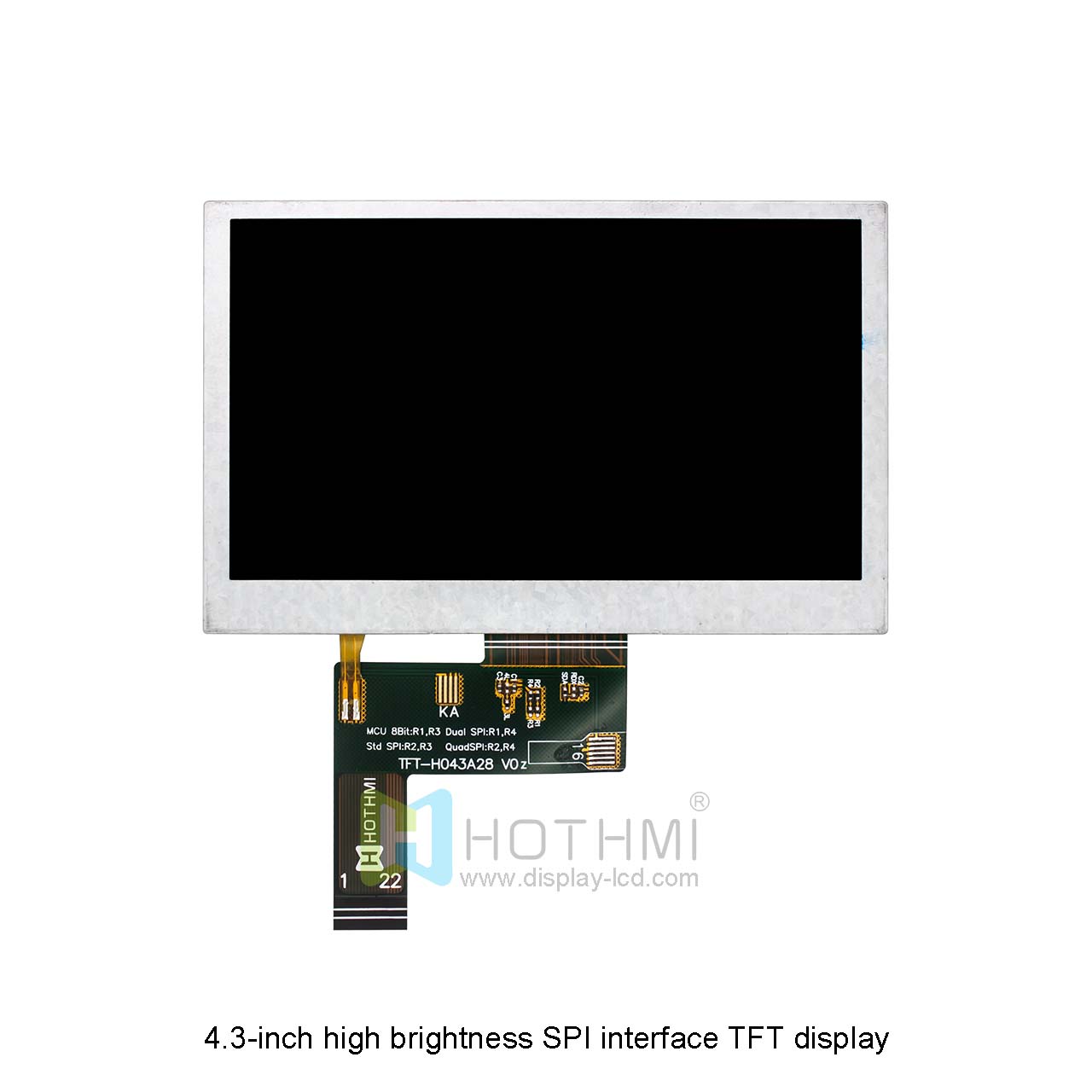

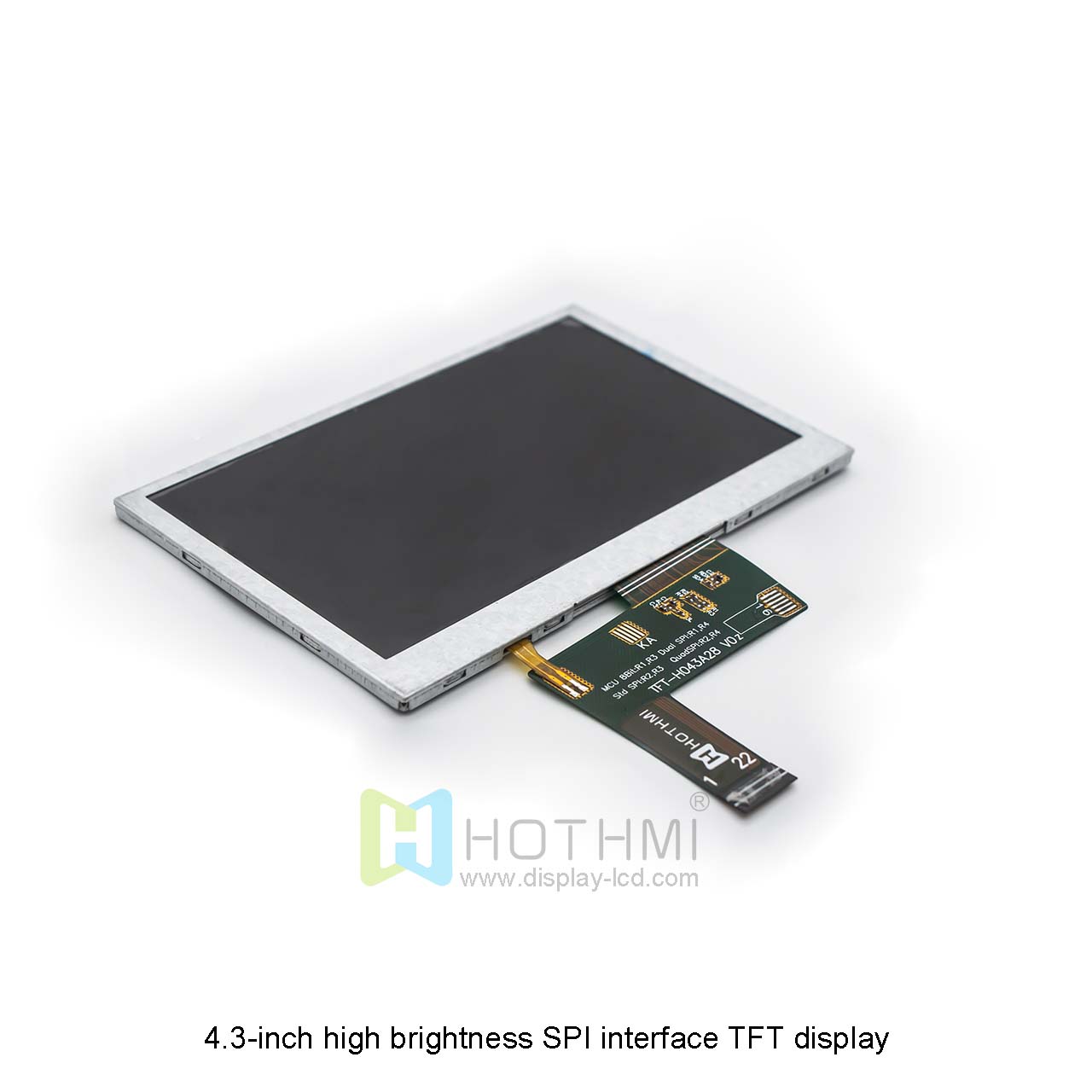

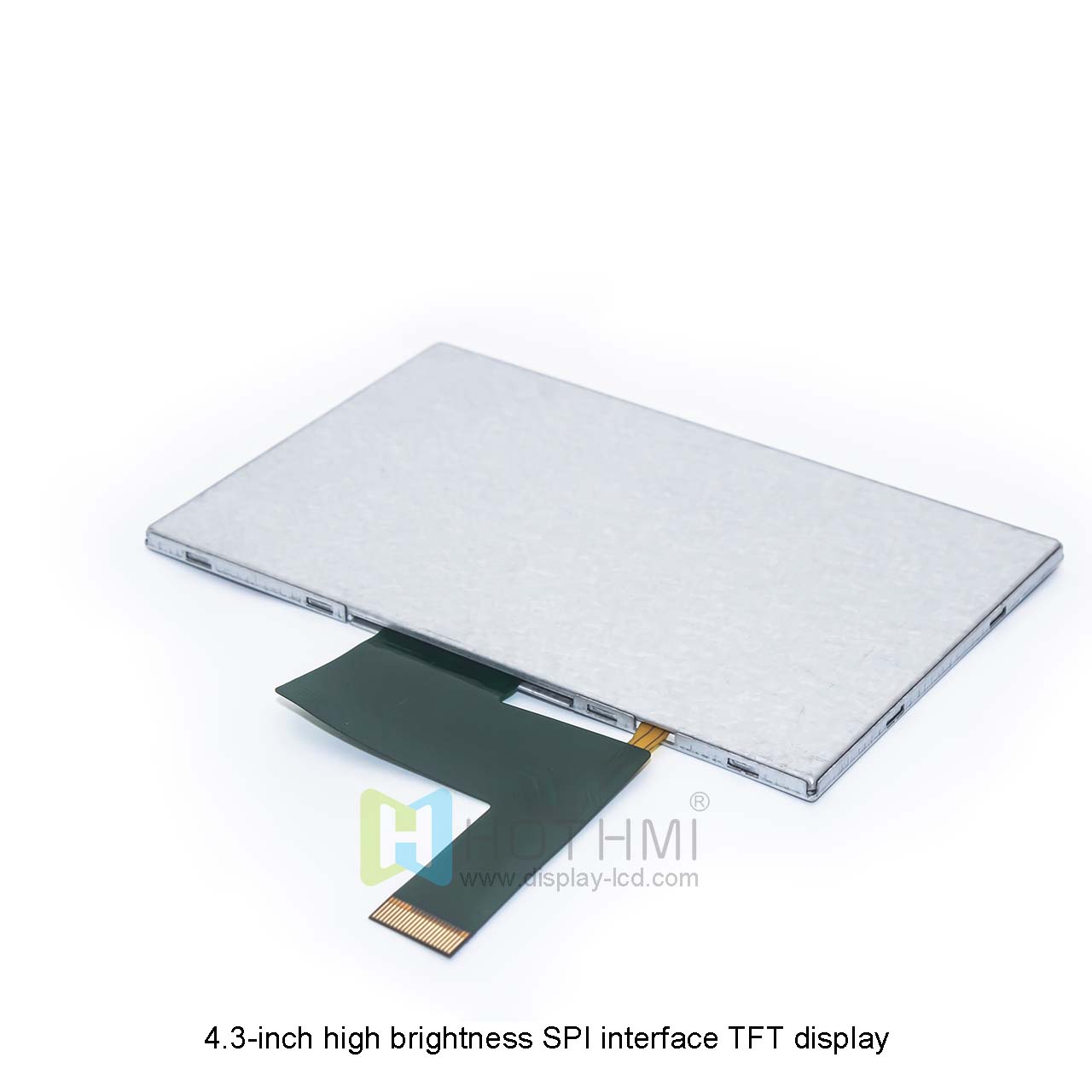

4.3 inch TFT display screen | Resolution 480x272 | NV3041 driver chip | High brightness TFT LCD | Readable LCD under sunlight
This 4.3-inch TFT LCD display has a resolution of 480x272 pixels and a high contrast ratio of 800:1, which can present deep black and vivid colors. Adopting IPS technology, providing full view display, ensuring excellent color reproduction, high contrast, and consistent image quality.
Core features:
Superior display performance: high contrast and wide viewing angle, presenting clear and delicate visual effects.
Efficient Drive Control: Built in NV3041 controller, optimized display function, achieving smooth operation and precise image presentation.
Multiple interface support: equipped with QSPI/MCU interface, compatible with microcontrollers such as C8051, Arduino, STM32, etc., to meet diverse application needs.
Convenient Connection: Adopting FPC (Flexible Printed Cable) connection method to ensure stable and reliable electrical connection.
Compliant with environmental standards: The product has passed RoHS certification and meets strict environmental and safety standards.
Application areas:
Suitable for a wide range of application scenarios such as the Internet of Things, industrial automation, consumer electronics, testing and measurement, handheld devices, industrial control systems, home automation, and portable electronic products.
We also offer a version TFT-H043A28WQIST8C22 with capacitive touch for this model. This capacitive touch is fully bonded, and whether the screen is turned off or in operation, the display screen of this model has a very high-quality display effect. In the same size product series, we also provide customized FPC and various interface versions TFT-H043A21WQIST8C40. This series has a horizontal display effect, and we also offer a vertical version TFT-H043A8WVIS4N30.
