0.32 inch white oled/60x32 dot matrix OLED display/I2C interface graphic OLED display/SSD1315 controller/FPC flexible cable/Arduino

0.32 inch white oled/60x32 dot matrix OLED display/I2C interface graphic OLED display/SSD1315 controller/FPC flexible cable/Arduino

▶ Model: HTO-OLED0.32-W

▶ Display type: Graphic OLED
▶ Size: 0.32 inches diagonal
▶ Display format: 60x32 pixels
▶ Display color: White

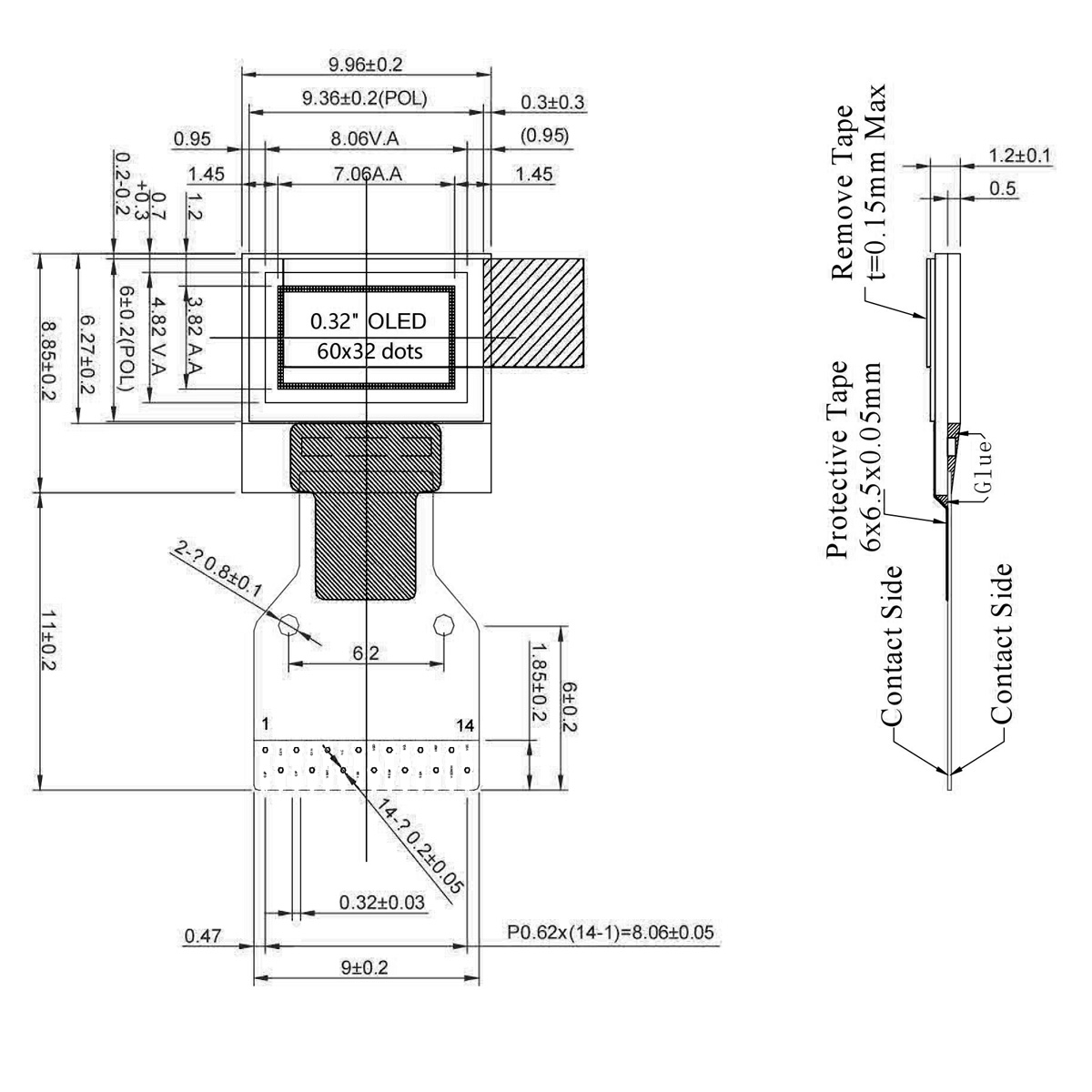

▶ Appearance (mm): 9.96x8.85x1.2
▶ VA (mm): 8.06x4.82
▶ AA (mm): 7.06x3.82
▶ Pixel pitch (mm): 0.118x0.120
▶ Power supply voltage: 3.3V
▶ Interface: I2C
▶ Connection method: FPC-14pin
▶ Backlight brightness: 90cd/m2
▶ Compatibility: Arduino
▶ Controller model: SSD1315
▶ Operating temperature: -40°C~85°C
▶ Storage temperature: -40°C~90°C

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

0.32 inch white oled/60x32 dot matrix OLED display/I2C interface graphic OLED display/SSD1315 controller/FPC flexible cable/Arduino
This 0.32 inch 60x32 resolution graphic OLED glass display presents crisp white graphics on a rich black background. It features a built-in SSD1315 controller and requires a 3.3 V power supply. It has an operating temperature range of -40 to 85 degrees Celsius, making it ideal for use in a variety of environments, including harsh environments. The display is compatible with Arduino and other popular development boards. As an OLED glass display, this model has no PCB, so the display is thinner than a typical OLED. The slim design gives you the flexibility to install and customize your own PCB as needed. This OLED is configured with a flexible cable FPC, which can be easily removed using the matching connector. OLED display technology is self-luminous and is carefully designed to provide high-contrast images from any angle, with vivid colors and clear details. This mini OLED display also has an extremely fast response time. The interface mode of this passive matrix OLED display is I2C.

ITEM	Parameter Description	UNIT
OLED Model	HTO-OLED0.32-W
Diagonal Size	0.32”	“
Pixels	60x32	Dot

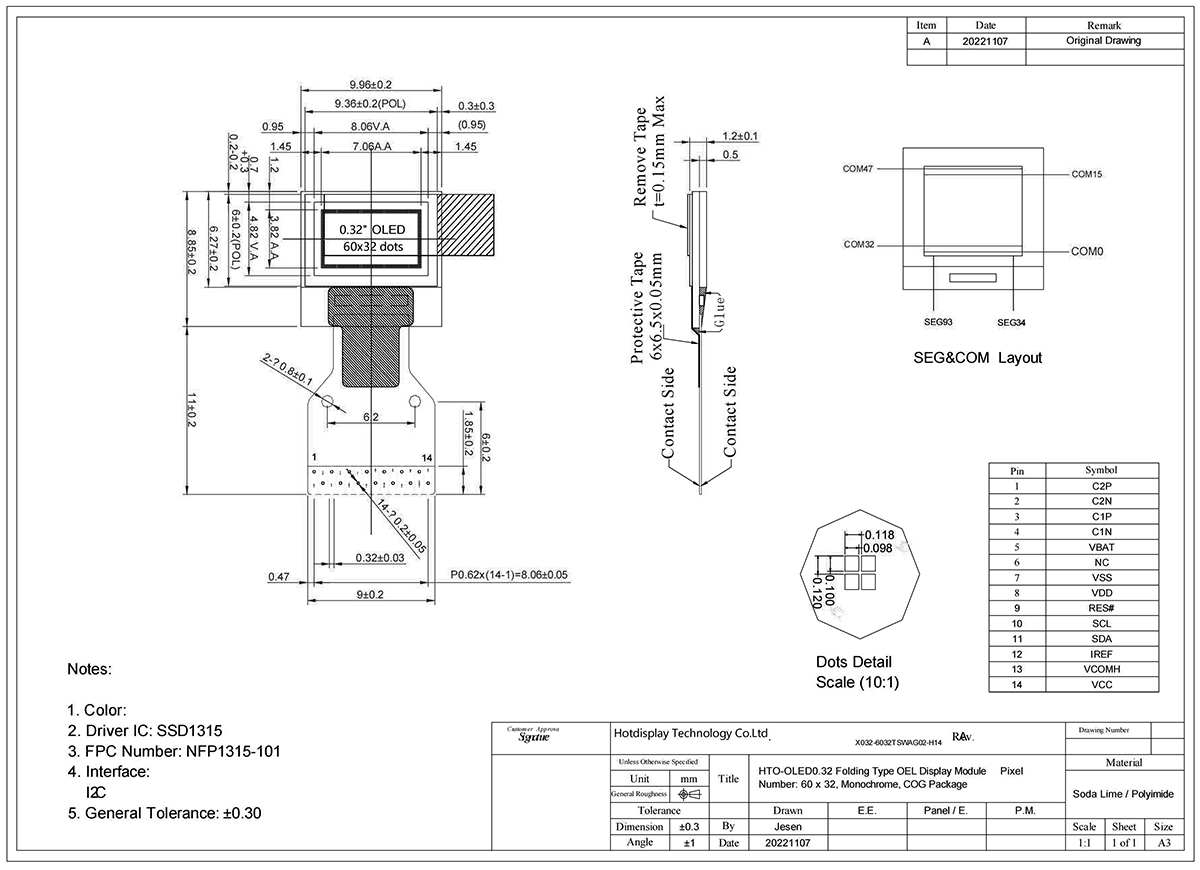

Appearance Size	9.96x8.85x1.2	mm
VA Size	8.06x4.82	mm
Active Area (AA)	7.06x3.82	mm
Dot Pitch	0.118x0.120	mm
Supply Voltage	3.3	v
Driver IC	SSD1315
Drive Mode	1/64 duty
Interface	SPI/I2C
Type	Oled Display
Display Color	white
Operating Temperature	-40°C~85°C	℃
Storage Temperature	-40°C~90°C	℃
