In industrial control, embedded terminals, construction machinery, and smart device development, a display screen must deliver clear and stable visuals while also addressing real engineering challenges such as backlight driving, signal anti-interference, structural mounting, and main control platform compatibility.

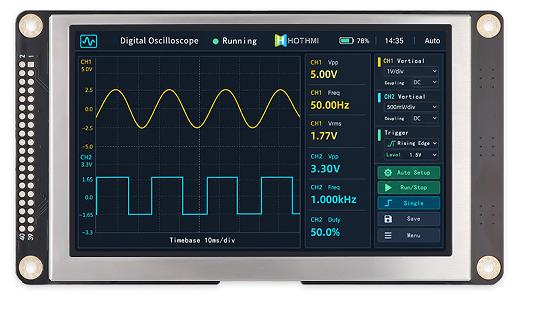

Unlike a standard 5-inch bare TFT panel, HOTDISPLAY's HTM-H050A1-RGB-A01 is not simply an LCD panel with an FPC connector — it is an integrated 5-inch RGB display module combining a TFT screen, a PCB control board, and a stainless steel frame.

The module interface is adapted for the ALIENTEK STM32 development platform. On compatible models, no additional adapter board or complex jumper wiring is required to complete RGB display, backlight, and touch connections. The PCB also integrates backlight driving and anti-interference circuitry, significantly reducing secondary development work related to backlight, power, interface, and structure. This helps developers quickly complete display debugging and product development.

On this basis, the product further offers 800x480 resolution, brightness up to 1800 cd/m², a 24-bit RGB interface, wide viewing angle, wide temperature range, and CTP/RTP touch options — making it a highly versatile 5-inch RGB display module for demanding embedded applications.

What are the advantages of this 5-inch RGB display module?

1. Standard 24-bit RGB interface, perfectly compatible with STM32 development boards

The HTM-H050A1-RGB-A01 series is a 5-inch RGB display module featuring a 24-bit RGB parallel interface with SYNC + DE Mode support. The RGB data consists of 8-bit Red, 8-bit Green, and 8-bit Blue, theoretically supporting up to approximately 16.77 million colors — fully capable of meeting the demands of industrial GUI, graphical interfaces, and multi-color data display.

For STM32 developers, LCD interface adaptation is often one of the most time-consuming tasks in the early stages of a project. FPC pin definitions can vary across different TFT LCD panels, and in real-world development this frequently requires: designing an adapter board; using DuPont wire jumpers; connecting RGB signals separately; handling the backlight power supply independently; and matching the touch interface. Beyond the complex wiring, longer RGB signal lines can also introduce signal interference issues. This 5-inch RGB display module has been designed with interface optimization specifically for STM32 development applications.

The module uses a 40-PIN interface design and has been adapted for the ALIENTEK STM32 development platform. On compatible development board models, no additional adapter board or complex jumpers are required to complete RGB display, backlight control, and touch-related signal connections. For engineers using the ALIENTEK platform for: STM32 LTDC development; LVGL interface development; GUI application development; industrial HMI prototyping; and embedded product development — this 5-inch RGB display module significantly reduces hardware wiring and adapter work, allowing more development time to be invested in software functionality and UI design.

2. Comes with a built-in PCB control board, integrating a backlight driver and anti-interference circuitry

Compared with a standard bare TFT panel, the HTM-H050A1-RGB-A01 adopts an integrated TFT + PCB module design. In real projects, a bare RGB panel usually still requires customers to design their own backlight driver, power filtering, interface adapter, and related anti-interference circuits — which not only increases hardware development workload but also extends prototype debugging and system validation cycles.

This 5-inch RGB display module series has already integrated a high-brightness LED backlight driver circuit onto the PCB. The 5-inch RGB display module uses a 5V main power input, so customers no longer need to design a complete backlight boost and driver solution separately on the main control board. This reduces work such as backlight driver IC selection, peripheral component configuration, circuit design, and PCB debugging.

At the same time, the PCB also incorporates power processing and anti-interference design, which helps suppress power ripple, switching noise, and interference from complex electrical environments, improving the stability of backlight power supply and RGB display signals. For applications with complex electromagnetic environments — such as industrial control, construction machinery, and automation equipment — this integrated design is more conducive to long-term stable operation of the whole system.

Compared with the traditional "bare LCD + adapter board + standalone backlight driver" approach, the HTM-H050A1-RGB-A01 integrates part of the display peripheral circuitry directly into the module PCB, reducing customer work in peripheral component selection, power design, PCB validation, and some EMC debugging.

For customers developing products with STM32, industrial main control boards, and other embedded platforms, this PCB-integrated approach can significantly lower the system integration difficulty of the display module — allowing developers to focus more energy on program development, LVGL interface design, feature implementation, and overall system optimization.

3. Secured with a stainless steel frame for a more robust structure.

For industrial display equipment, mechanical structural reliability is just as important as electrical performance. Ordinary bare TFT panels typically use an LCD glass and FPC structure, which means equipment manufacturers must solve PCB mounting, LCD positioning, and structural support on their own during installation. The HTM-H050A1-RGB-A01 uses a stainless steel metal frame mounting structure that combines the LCD screen and PCB into a complete 5-inch RGB display module, reducing the difficulty of subsequent structural design. Compared with ordinary bare panels, this structure improves the overall mechanical strength of the module, reduces looseness between the PCB and the screen, improves assembly stability of the equipment, and enhances structural reliability during transportation and use.

For application scenarios such as construction machinery, industrial control equipment, vehicle-mounted terminals, automation equipment, and instrumentation — where vibration, transportation, and long-term use are required — this complete module structure is more suitable for direct productization design than using an LCD bare panel alone, and it significantly improves product durability and reliability.

4、  5-inch 800×480 high-brightness display—clearly visible even in bright light.

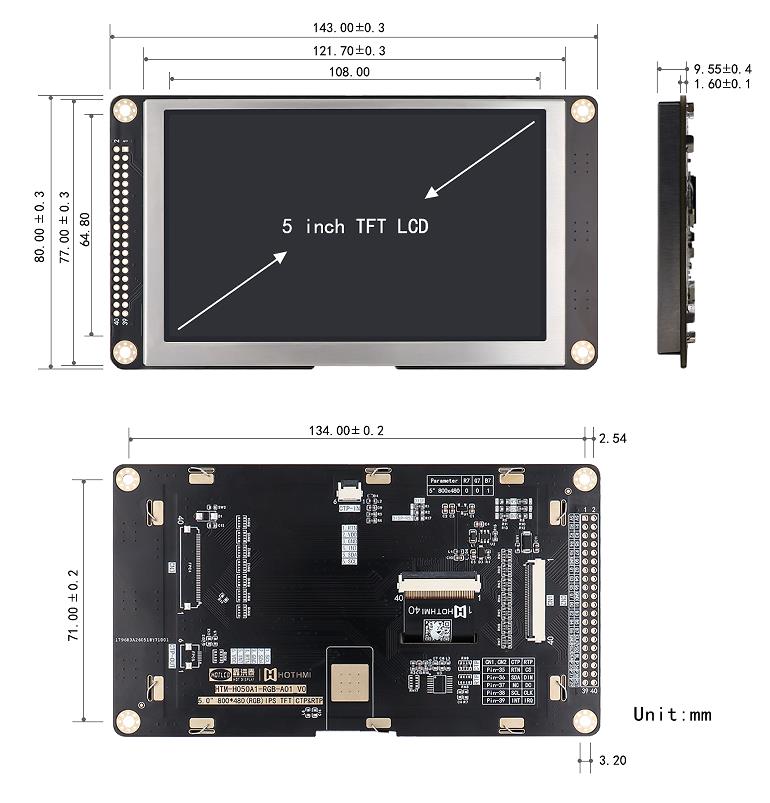

The HTM-H050A1-RGB-A01 features a 5.0-inch TFT LCD display with a resolution of 800x480. With an active display area of 108.0 x 64.8 mm, it offers a generous viewing area within a compact footprint, making it suitable for industrial control interfaces, equipment parameter displays, instrumentation data, and graphical user interfaces (GUIs). Additionally, unlike standard consumer-grade TFT displays, this series features a backlight design optimized for high-brightness applications.

Non-touch version: 1800 cd/m²

Capacitive touch version: 1600 cd/m²

Resistive touch version: 1400 cd/m²

High display brightness is maintained even after the addition of a touch panel. This effectively enhances the readability of text, icons, and equipment parameters in outdoor devices, industrial workshops, construction machinery, and equipment operating in high-ambient-light environments. This aligns with the positioning of HOTDISPLAY’s existing high-brightness TFT products—designed for outdoor and challenging industrial lighting conditions to improve visibility in sunlight and intense light, thereby effectively resolving the issue of standard industrial screens appearing washed out and illegible under strong light.

5. 80° omnidirectional wide viewing angle, enhancing visibility across various installation angles.

Industrial equipment displays are often subject to varying installation heights and viewing angles. The HTM-H050A1-RGB-A01 features typical viewing angles of 80° in all four directions (Up, Down, Left, and Right) and a typical contrast ratio of 1200:1. It maintains excellent display quality and vivid, accurate color reproduction when viewed from various angles. This makes it ideal for applications such as medical monitors and industrial control panels, where data must be viewed by multiple people from different positions; it ensures clear information visibility without blind spots and maintains color accuracy even when viewed from the side.

6. Wide operating temperature range of -30°C to +80°C, suitable for complex industrial environments.

Industrial equipment often needs to operate in temperature environments more complex than those of consumer electronics. The TFT display section of the HTM-H050A1-RGB-A01, a rugged 5-inch RGB display module, supports an operating temperature of -30°C to +80°C, with a storage temperature also reaching -30°C to +80°C. It has passed strict temperature and humidity reliability tests (120-hour high-temperature storage, 120-hour low-temperature storage, high-temperature/high-humidity operating tests, etc.). Combined with ESD 8KV anti-static capability, this 5-inch RGB display module can operate stably whether in freezing outdoor environments or high-temperature industrial workshops.

7. Flexible touchscreen options to meet diverse industrial operational needs.

This series of modules offers three touchscreen configuration options:

• No Touchscreen (No TP): Suitable for display-only applications.

• Resistive Touchscreen (RTP): Cost-effective; supports pressure-based touch and glove operation; suitable for challenging environments involving dust or outdoor use.

• Capacitive Touchscreen (CTP): Features the GT911 driver IC, supports up to 5-point touch, and utilizes an I²C interface; offers responsive performance and 6H surface hardness; suitable for industrial HMIs, smart terminals, and scenarios requiring frequent human-machine interaction.

These touchscreen options provide customers with the flexibility to choose based on specific application requirements and budget constraints, accommodating a wide range of use cases—from traditional industrial equipment to intelligent HMI terminals.

Application scenarios for this 5-inch RGB display module

Thanks to its excellent display performance, robust construction, wide operating temperature range, and standard interfaces, the HTM-H050A1-RGB-A01 is suitable for a wide range of applications, including:

Industrial Control and Human-Machine Interface (HMI)

Factory automation equipment, CNC machine tool control panels, PLC HMIs, printer/copier control panels, etc. High brightness and wide operating temperature ranges ensure clear visibility in noisy, dusty, and high-temperature workshop environments.

In-vehicle display
In-vehicle navigation systems, rear-seat entertainment systems, specialized displays for construction vehicles, etc. Their metal-frame construction and wide-temperature design enable them to withstand vehicle vibration and extreme temperature fluctuations.

Medical equipment
Patient monitors, portable diagnostic devices, laboratory analysis instruments, etc. IPS wide-view technology enables medical personnel to accurately read data from any angle.

Embedded Development and Education

Perfectly compatible with ALIENTEK STM32 development boards and supporting RGB888 display format, this is an ideal display terminal for university laboratories, maker projects, and product prototyping.

Outdoor Handheld Devices and Self-Service Terminals

Suitable for outdoor information kiosks, EV charging station displays, handheld data collection terminals, smart home control panels, and more. High brightness ensures content remains readable even in direct sunlight.

Standard 5-inch RGB Bare Panel vs. HTM-H050A1-RGB-A01 Comparison Table

For engineers developing industrial HMIs, equipment controls, or embedded GUIs using STM32, the factor that truly impacts project efficiency is often not merely whether the screen lights up, but rather the extent of the peripheral development required to support it.

The HTM-H050A1-RGB-A01 integrates peripheral circuitry, interface adaptation, and structural design—tasks typically handled by the customer—into a complete module. It achieves this through features such as direct connectivity with ALIENTEK STM32 development boards, an onboard PCB backlight driver, anti-interference circuitry, and a stainless steel frame structure. For equipment developers, this effectively reduces the workload associated with adapter board design, jumper wiring, backlight driver development, and structural mounting. For manufacturers, it helps shorten the development cycle spanning prototype verification, system debugging, and mass production.
