8-inch High-Brightness IPS TFT LCD Display 1920×1200

In application scenarios such as modern agricultural machinery, professional drones, and outdoor intelligent terminals, display screens are required not only to deliver high-definition and delicate images, but also to withstand harsh outdoor lighting, complex environmental conditions, and prolonged operation cycles.

To address the demands of outdoor equipment for high-brightness display, superior image quality, and flexible system integration, HOTDISPLAY H080D16 Series offers two interface options — MIPI and LVDS versions. Featuring an 8-inch 1920×1200 high-definition IPS display panel paired with 1500cd/m² high-brightness backlight technology, the series ensures clear and stable visual performance even under direct sunlight.

Whether deployed in agricultural autonomous driving systems, smart tractor terminals, crop protection drone remote controllers, surveying and mapping drone ground stations, or outdoor control consoles, this series delivers a clear, reliable, and user-friendly visual interaction experience. As a trusted China LCD Supplier, HOTDISPLAY provides professional-grade display solutions tailored for outdoor intelligent devices.

I. Shared high-end core specifications

Both modules share the same display core and quality standards, ensuring a consistently excellent user experience regardless of the interface chosen.

Key Specification 1: 1500 cd/m² high brightness—an ideal visual solution for sunlight conditions.

The greatest display challenge for outdoor equipment is the impact of intense ambient light on screen visibility. The H080D16 series features a high-brightness backlight design, delivering up to 1,500 cd/m² of brightness; this significantly outperforms standard displays—which typically range from 300 to 500 cd/m²—thereby ensuring superior visual performance in high-glare environments.

In applications such as agricultural machinery operation, drone piloting, and outdoor inspections, equipment is frequently exposed to direct sunlight. Standard screens often struggle in these conditions, suffering from washed-out images, illegible text and parameters, and unclear map or flight path details.

The high-brightness display solution significantly enhances image contrast, enabling operators to quickly view operational parameters, real-time maps, flight status, and equipment operating data, ensuring clear visibility even in outdoor sunlight.

Key Specification 2: 8-inch 1920×1200 HD IPS display, delivering a refined visual experience.

The H080D16 series adopts an 8-inch High-Brightness IPS TFT LCD Display panel, featuring 1920×1200 HD resolution, a 16:10 aspect ratio, and IPS full-viewing-angle technology. Compared with conventional 1280×800 solutions, the 1920×1200 resolution provides significantly richer information display space, making it more suitable for outdoor intelligent devices that demand high-definition content presentation. In drone remote controllers, it clearly shows aerial footage, flight maps, route planning, flight parameters, and mission status. In agricultural machinery, it simultaneously displays GPS positioning, field maps, equipment status, and autonomous driving assistance interfaces. IPS technology ensures stable color reproduction and clarity from various viewing angles, accommodating multi-person viewing and different mounting orientations in outdoor operating environments.

Key Specification 3: Wide-temperature design, suitable for all-weather outdoor use.

Outdoor equipment often needs to withstand seasonal variations and ambient temperature fluctuations across different regions. The H080D16 series supports an operating temperature range of -30°C to +85°C, making it suitable for high-temperature summer farmland environments, cold-region outdoor operations, and long-duration continuous operation scenarios. Equipped with 8kV ESD electrostatic discharge protection, it enhances system stability during device usage. As a reliable 8-inch High-Brightness IPS TFT LCD Display solution, this series provides robust visual support for outdoor intelligent terminals in demanding conditions.

Core Feature 4: Integrated capacitive touch solution for a smart user experience.

The H080D16 series supports capacitive touch solutions, making it ideal for devices requiring frequent interaction, such as drone remote controllers and smart agricultural machinery. Equipped with the GT911 touch controller chip, it supports multi-touch functionality, enabling rapid menu navigation, map zooming, parameter adjustment, and gesture control. Compared to traditional button-based controls, the touch interface is more intuitive and efficient, aligning with modern trends in human-machine interaction for smart devices.

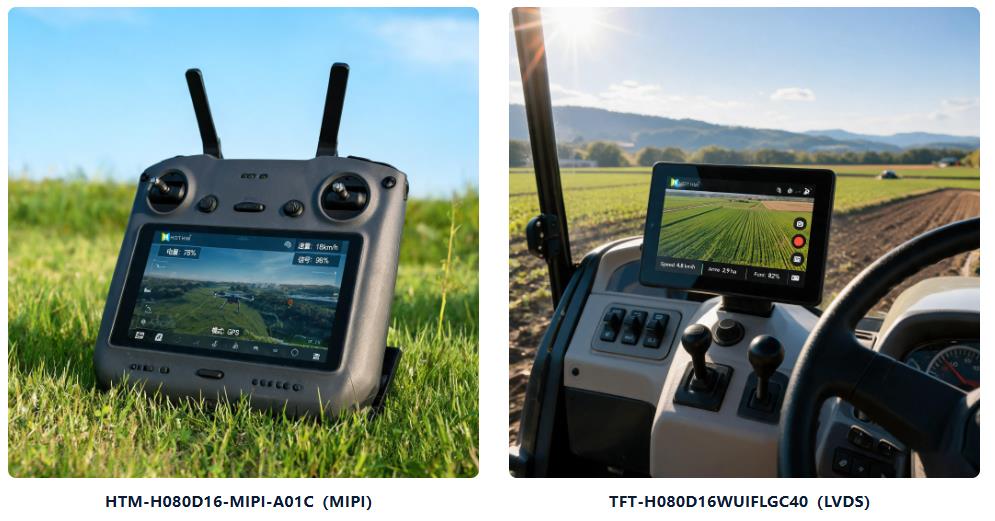

II. HTM-H080D16-MIPI-A01C: High-speed display solution for drone remote controllers and smart devices.

The MIPI DSI interface utilizes high-speed serial transmission and offers low power consumption, high integration, and excellent data transmission capabilities, making it ideal for compact devices designed to be lightweight.

Key advantages:

Target applications: Android tablets, smart central control systems, portable medical devices, handheld industrial terminals, in-vehicle infotainment systems, and other scenarios prioritizing low power consumption, miniaturization, and modern platforms.

III. TFT-H080D16WUIFLGC40: A stable display solution for agricultural machinery and outdoor terminals.

As a mature and reliable display transmission solution, the LVDS interface is well-established for applications in outdoor equipment and large-scale terminals.

Key Advantages and Typical Applications of the 8-inch High-Brightness IPS TFT LCD (MIPI DSI Interface)

This version is suitable for smart tractor display terminals, agricultural autonomous driving systems, ground control equipment for crop-protection drones, outdoor smart control devices, and in-vehicle display terminals.

Suitable for demanding industrial environments where stability, interference resistance, and long-distance transmission are paramount—such as industrial HMIs, outdoor digital signage, marine navigation displays, factory automation equipment, medical instruments, and military-grade hardware.

As an experienced China LCD manufacturer, we combine rigorous quality control with efficient production processes to deliver tailored display solutions that accelerate your product development—we invite you to browse our full product range online: https://www.display-lcd.com/
