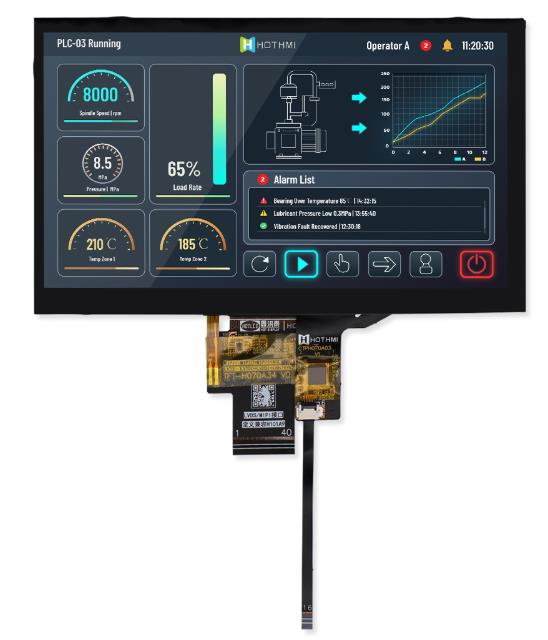

7-inch 800x480 MIPI IPS industrial touch display

TFT-H070A34SVIGH8C40

In the mainstream 7-inch 800×480 industrial landscape-oriented display segment, the industry has long been trapped in a homogeneity bottleneck. Conventional 7-inch 800×480 industrial landscape solutions have historically relied on the combination of RGB interface plus TN panels, which brings a host of persistent issues: cumbersome wiring layouts, severe EMI interference, narrow viewing angles, noticeable color distortion, and poor environmental adaptability. These shortcomings make it increasingly difficult for such traditional solutions to meet the high-end, lightweight, high-stability, and highly adaptable development requirements of next-generation industrial controls, automotive cockpits, outdoor smart terminals, and medical devices.

To address this market gap and resolve these technical pain points, HOTDISPLAY has launched the TFT-H070A34SVIGH8C40 — a 7-inch 800x480 MIPI IPS industrial touch display module. As one of the very few products on the market that natively integrates a native MIPI interface with an IPS full-viewing-angle panel in the 7-inch 800×480 industrial landscape form factor, this 7-inch 800x480 MIPI IPS industrial touch display breaks through the limitations of traditional RGB+TN solutions in terms of interface integration, display quality, and system compatibility. Combined with a localized supply chain, 800 cd/㎡ high brightness, an ultra-wide operating temperature range of -30°C to +85°C, and optically bonded touch functionality, this 7-inch 800x480 MIPI IPS industrial touch display delivers a forward-looking, highly stable, and cost-effective new solution for embedded display development. It empowers terminal product manufacturers to achieve meaningful differentiation and competitive upgrades in their end devices.

For product parameter details, please click the link：TFT-H070A34SVIGH8C40

Breaking the RGB Monopoly – The MIPI Advantage for 7-Inch Industrial Displays

Currently, the domestic market for 7-inch 800×480 landscape displays is almost entirely monopolized by the RGB interface, while native MIPI-interface products remain extremely scarce—this has become a critical pain point for many high-end embedded project selections. Although the RGB interface is technologically mature, its limitations are gradually becoming apparent as intelligent terminals and industrial equipment demand ever-higher levels of integration: RGB suffers from excessive pin counts, complex routing, and high system redundancy. Over longer transmission distances, RGB interfaces are more susceptible to electromagnetic interference (EMI), imposing stringent requirements on PCB layout and signal integrity design. This not only increases hardware design complexity and raises bill-of-materials (BOM) costs but also demands greater attention to high-speed signal integrity. Meanwhile, next-generation SoCs increasingly favor integrating MIPI-DSI interfaces to meet the growing needs for lightweight architecture, low power consumption, and high-speed data transmission.

Our product directly addresses this industry challenge by featuring a native MIPI-DSI high-speed serial interface, establishing itself as a differentiated benchmark among mainstream 7-inch landscape displays. Compared to traditional RGB interfaces, this 7-inch 800x480 MIPI IPS industrial touch display delivers a comprehensive technological innovation across multiple dimensions. The MIPI high-speed serial transmission architecture dramatically reduces the number of data transmission pins, simplifies FPC routing design, effectively lowers system complexity and overall EMI interference risks, and overcomes the limitations of conventional parallel interfaces in terms of routing complexity, system integration, and EMI control.

At the performance level, the MIPI interface enables high-speed, low-power, and highly stable data transmission, perfectly compatible with modern mainstream processor architectures. For SoC platforms that natively support MIPI-DSI interfaces, this 7-inch 800x480 MIPI IPS industrial touch display requires no additional bridge chips, significantly streamlining the BOM, shortening product development cycles, and accelerating time-to-market. Furthermore, the ample bandwidth reserve ensures smooth 800×480 resolution output with minimal latency and stutter, precisely meeting the rigorous demands of real-time data visualization scenarios such as automotive instrument clusters, industrial HMI (human-machine interfaces), medical monitoring equipment, and outdoor smart terminals. This 7-inch 800x480 MIPI IPS industrial touch display offers a forward-looking display transmission solution for high-end embedded devices.

In addition to MIPI, our product also provides LVDS as a second mainstream industrial interface, making it compatible with industrial control hosts, ARM development boards, and legacy equipment. With a single hardware platform covering both interface requirements, this 7-inch 800x480 MIPI IPS industrial touch display delivers exceptional versatility and future-proof flexibility for diverse deployment environments.

IPS full-viewing

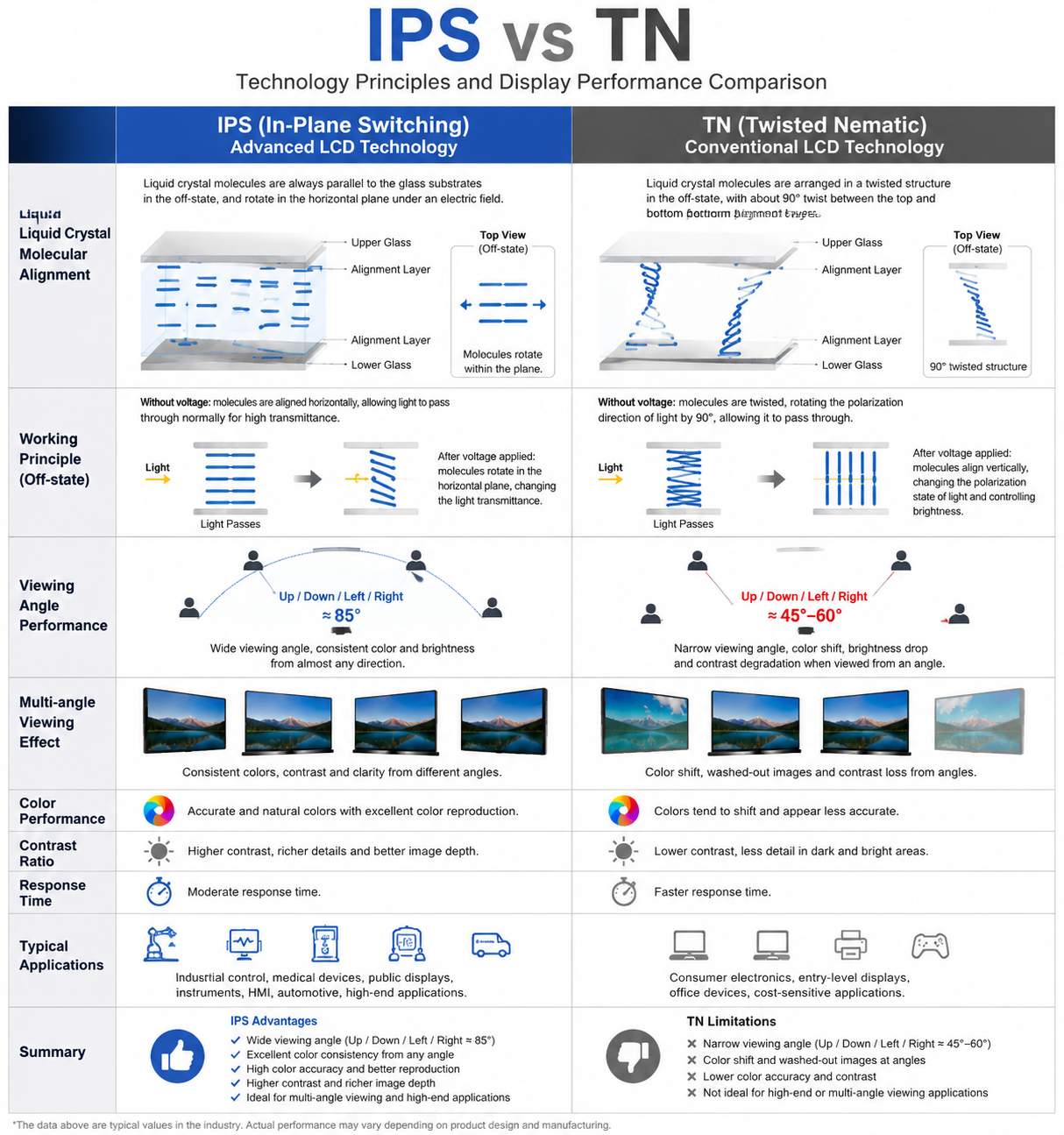

Currently, among 7-inch industrial displays with the same size and resolution on the market, almost all of them adopt traditional TN panels, which come with significant technical drawbacks. TN panels use a twisted nematic molecular alignment structure, where liquid crystal molecules are arranged in a helical configuration. Under this design, the display only performs properly when viewed from the front; when viewed from an oblique angle, severe color shift, whitening, and sharp contrast degradation occur immediately. The viewing angle is extremely narrow, color reproduction is poor, and image layering is insufficient. These limitations make TN-based panels completely inadequate for high-end application scenarios that demand multi-angle viewing, public information display, or precision data visualization.

Our product abandons the conventional TN panel approach entirely. The entire series is equipped with premium IPS (In-Plane Switching) technology, delivering a generational leap in display quality. In an IPS panel, liquid crystal molecules remain consistently parallel to the glass substrate at all times. Through in-plane electric field driving, the molecules rotate uniformly, ensuring even and controllable light transmission. This architecture enables a wide viewing angle of 85° in all directions—up, down, left, and right. When viewing the screen from different angles, color accuracy, contrast ratio, and image sharpness remain stable and consistent, dramatically reducing the color distortion and image washout commonly seen in TN panels. As a 7-inch 800x480 MIPI IPS industrial touch display, it sets a new benchmark for visual performance in industrial-grade human-machine interfaces.

Paired with the high-performance GH7006 driver solution and the IPS panel design, this 7-inch 800x480 MIPI IPS industrial touch display achieves an outstanding 1000:1 contrast ratio and precise color rendering. The resulting image shows clear layering and fine detail, making it ideal for accurately presenting industrial control parameters, medical monitoring data, and automotive infotainment graphics. Whether deployed in HMI devices operated by multiple users on a factory floor, in outdoor public information kiosks, or in in-vehicle multi-angle interactive systems, this 7-inch 800x480 MIPI IPS industrial touch display ensures that displayed information remains true, sharp, and reliable. As a result, it significantly enhances the interactive experience and operational safety of terminal equipment across diverse environments. Moreover, the MIPI interface of this 7-inch 800x480 MIPI IPS industrial touch display ensures high-speed data transmission with low EMI, making it particularly suitable for systems that require real-time responsiveness and clean signal integrity. For design engineers seeking a reliable, high-performance solution, this 7-inch 800x480 MIPI IPS industrial touch display offers the perfect combination of optical excellence and robust industrial durability.

Full-Spectrum Hardcore Configuration

Leveraging a mature domestic supply chain ecosystem, this 7-inch 800x480 MIPI IPS industrial touch display ensures stable availability of all core display components, effectively eliminating dependence on overseas import channels. With reliable supply, controllable lead times, and outstanding cost-performance, this 7-inch 800x480 MIPI IPS industrial touch display also supports customized development services to fully address the localization replacement needs of domestic embedded devices. It stands as the preferred accessory for industrial equipment and smart hardware undergoing domestic upgrade initiatives.

In terms of environmental adaptability, this 7-inch 800x480 MIPI IPS industrial touch display incorporates an ultra-wide-temperature industrial-grade architecture, with an operating temperature range spanning -30°C to +85°C and storage temperatures from -40°C to +90°C. This robust design enables the 7-inch 800x480 MIPI IPS industrial touch display to withstand harsh conditions including extreme cold, intense heat, and sudden thermal shocks, performing reliably in complex environments such as industrial workshops, outdoor open-air installations, and vehicle-mounted systems subject to vibration. Long-term operational stability is guaranteed, with minimal impact from temperature drift or environmental fluctuations on display quality.

For high-ambient-light outdoor scenarios, the 7-inch 800x480 MIPI IPS industrial touch display is equipped with an 800 cd/m² high-brightness backlight, combined with the inherent optical advantages of IPS technology and professional optical bonding processes. This configuration significantly suppresses screen glare and reduces light reflection, delivering exceptional sunlight readability. Even under direct sunlight, text, data, and graphics remain crisp and clearly visible on this 7-inch 800x480 MIPI IPS industrial touch display, making it ideally suited for outdoor surveillance, automotive displays, outdoor smart terminals, and similar applications.

Furthermore, this 7-inch 800x480 MIPI IPS industrial touch display offers robust industrial protection performance, featuring 8KV electrostatic discharge (ESD) protection, built-in reset circuitry, and a low-power architecture that effectively suppresses electromagnetic interference and extends device service life. The module boasts an ultra-slim mechanical profile—with a thickness of just 3.45mm for the non-touch version, and only 4.96mm when integrated with the GT911 capacitive touch panel. This compact form factor enables seamless integration into a wide variety of lightweight, space-constrained terminal device designs without compromising structural flexibility.

Sensitive Touch Experience

On the touch interaction front, this 7-inch 800x480 MIPI IPS industrial touch display is equipped with the professional-grade GT911 touch controller IC and an optically bonded capacitive touch solution, supporting 5-point touch data acquisition. The surface features 6H high-hardness anti-scratch protection, and when combined with system-level software algorithms, this 7-inch 800x480 MIPI IPS industrial touch display enables smooth sliding, pinch-to-zoom, rotation, and various other multi-touch gestures. Built-in auto-calibration and environmental compensation mechanisms, together with optimized touch algorithms and structural design, significantly enhance the adaptability of this 7-inch 800x480 MIPI IPS industrial touch display to temperature and humidity variations as well as complex industrial environments, substantially reducing issues such as false triggers, unresponsiveness, and stuttering.

The innovative optical bonding process completely eliminates the air gap between the cover glass and the LCD panel. For this 7-inch 800x480 MIPI IPS industrial touch display, this not only prevents dust and moisture ingress, thereby improving overall protection and durability, but also reduces touch signal loss, enhances touch response sensitivity, and increases the touch signal-to-noise ratio. As a result, this 7-inch 800x480 MIPI IPS industrial touch display delivers a light, precise, and responsive touch experience that perfectly balances aesthetic appeal, premium build quality, and industrial-grade reliability.

Wide Range of Applications

Leveraging the combined advantages of a high-speed MIPI interface, IPS full-view HD display, high brightness visible under sunlight, ultra-wide temperature tolerance for industrial use, and stable touch interaction, this 7-inch industrial display module is suitable for embedded smart terminal scenarios in multiple industries. It can perfectly replace traditional RGB+TN displays and meet the needs of equipment localization upgrades and performance iterations.

• Industrial Control HMIs: Suitable for industrial human-machine interfaces, automation equipment control panels, PLC industrial control terminals, intelligent machine tools, equipment control cabinets, and other scenarios. With ultra-wide temperature adaptability, strong anti-interference capabilities, and stable MIPI high-speed transmission, they can operate stably for extended periods in complex electromagnetic environments and under conditions of large temperature fluctuations in workshops. The full-view display ensures clear and accurate data for multiple operators and multi-angle observations.

• Vehicle-Mounted Intelligent Terminals: Adapted to vehicle central control systems, vehicle instrument panels, construction machinery vehicle screens, and auxiliary display terminals for new energy vehicles. The low-power MIPI interface is compatible with vehicle main control platforms. The slim and lightweight structure facilitates overall design. Wide temperature characteristics can easily handle high temperatures and low temperatures inside vehicles, while 800cd/㎡ high brightness ensures clear screen visibility during daytime driving.

• Outdoor Intelligent Equipment: Widely used in outdoor information kiosks, access control video intercoms, security monitoring displays, outdoor intelligent billboards, photovoltaic energy storage terminals, and other equipment. Leveraging IPS high-definition display and optical bonding high-brightness technology, it achieves excellent sunlight visibility, is dustproof and moisture-proof, anti-interference, and resistant to high and low temperatures, meeting the standards for all-weather outdoor use.

• Medical and Precision Instruments: Suitable for portable medical monitoring equipment, testing instruments, laboratory smart terminals, and other precision display scenarios. It offers accurate color reproduction, stable images, and sensitive, drift-free touch control. Its low-power architecture combined with a high signal-to-noise ratio touch solution meets the high-precision, high-stability, and high-security display interaction requirements of medical equipment.

• Smart Home and Commercial Terminals: Suitable for whole-house smart control panels, building intercom systems, smart access control, and small commercial display devices. Its slim and lightweight design allows for a narrow bezel and elegant structure, providing smooth multi-touch interaction and clear, detailed image quality, balancing aesthetics with the needs of long-term stable daily use.

Product Core Data

Looking at the 7-inch 800×480 industrial landscape monitor market, the homogenized solution of RGB interface + TN panel is gradually becoming unable to meet the needs of high-end equipment iteration. The TFT-H070A34SVIGH8C40, through its MIPI-DSI high-speed interface + IPS full-viewing-angle display + domestic supply chain + high brightness and wide temperature design, provides the industrial display industry with a more advanced, reliable, and future-oriented solution, precisely filling a market gap.

From automotive smart terminals and industrial HMI control panels to medical monitoring equipment, outdoor smart equipment, and smart home terminals, this innovative display module solves the development challenges of cumbersome hardware design, unstable transmission, and poor adaptability for engineers. It also enhances the core competitiveness of terminal products with its superior display performance and industrial quality, making it the preferred display solution for upgrading industrial HMIs, smart terminals, and embedded devices, balancing performance, reliability, and development efficiency.

Meanwhile, HOTDISPLAY offers customization services for display size, interface solutions, touch methods, and cover plate structures, providing complete display module solutions based on customer equipment structure requirements.
