3.0 inch 128x64 graphic LCD display HTM12864-7 series

3.0 inch 128x64 graphic LCD display HTM12864-7 series product introduction

HTM12864-7Series of graphic dot matrix module specifications:

▶ Display pixels: 128x64

▶ Dimensions (mm): 95.0x56.7x13.5

▶ VA size (mm): 65.6x38

▶ AA size (mm): 60.775x32.935

▶ Pixel pitch (mm): 0.475x0.515

▶ Application: Industrial control

▶ Viewing angle: 6H

▶ PIN: 9PIN

▶ Interface: SPI

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70

▶ Supply voltage: 3.3V

▶ Driver chip：ST7565R

HTM12864-7 graphic dot matrix modules Product description

The Hot Display HTM12864-7 product series is a 128 x 64 graphic LCD. In terms of structure, this series is a display module with a driver board. The driver board has four positioning holes, which makes it convenient for users to fix this display module to the device. The display is connected to the driver board by welding. We provide 9 PIN pins on the driver board. When in use, users only need to solder the PIN pins and connect them to the main control board.

The compact design of this 128x64 graphic display provides you with the best viewing experience and the best 6-point viewing direction. At the same time, we can also adjust the angle of the polarizer to give the display other viewing angles. It has a wide operating temperature range, from as low as -20°C to as high as 70°C, with excellent visibility and readability in harsh lighting environments. The LCD display has a built-in ST4565R controller to ensure high compatibility with a range of interfaces and development boards including Arduino.

Common applications of this series of products are in instruments, industrial control, medical equipment, electronic game consoles and other products. All products from Hotdisplay are ROHS compliant and production follows ISO9001:2015 management standards.

Different display effects can be presented by matching different polarizer modes and backlight compositions

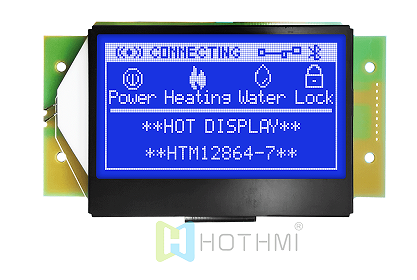

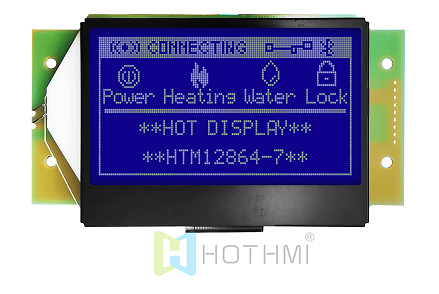

3.0"128x64 Graphic LCD Display Module-STN(-) Blue Background White Characters HTM12864-7-25W-N3S

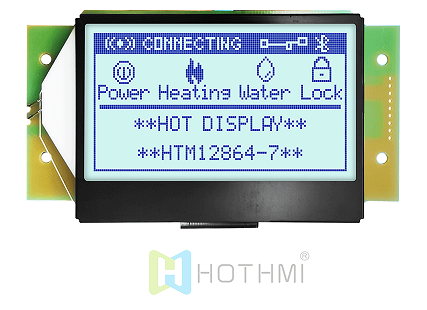

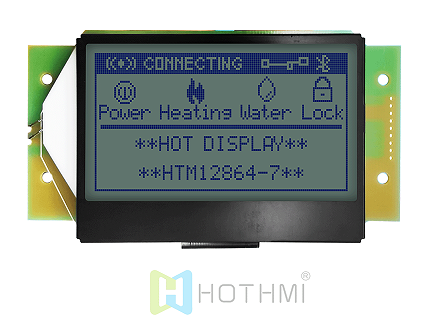

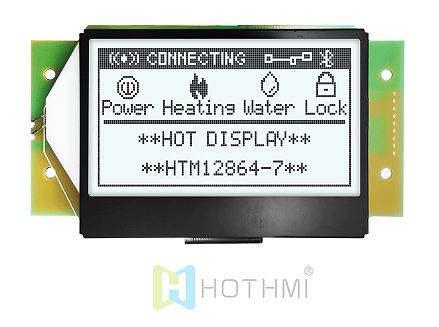

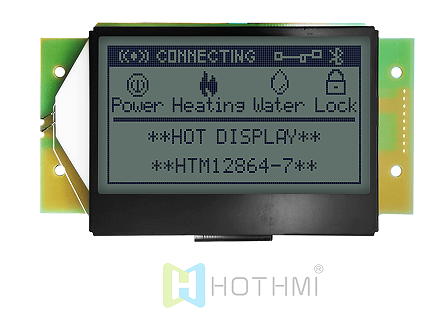

3.0-inch Gray Background with Blue Characters Graphic LCD Display Module HTM12864-7-11W-N3S

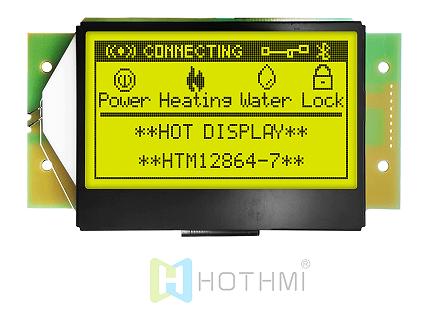

128x64 Graphic Display LCD Module |STN+ Yellow-Green with ST7565R Controller HTM12864-7-11Y-N3S

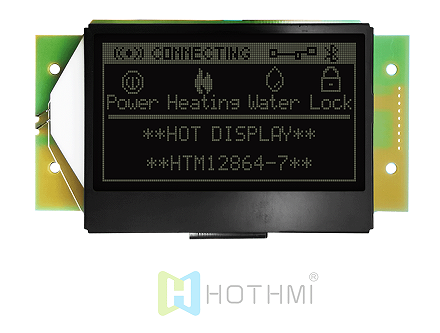

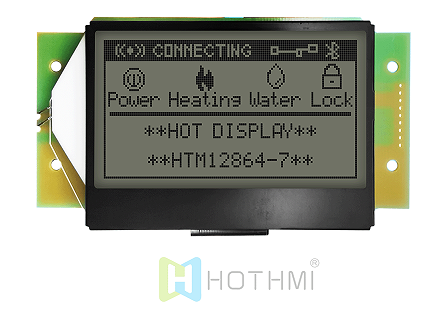

3 Inch Graphic LCD Display Module | 12864 Graphic Display | 128x64FSTN(+) Graphic LCD Display Module HTM12864-7-31W-N3S

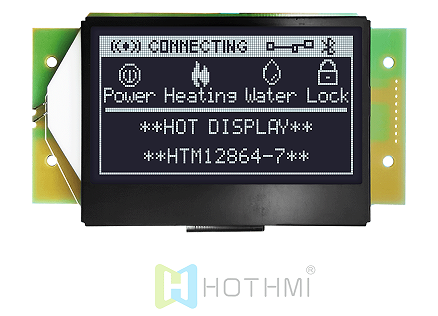

3.0-inch Black 128x64 Graphic Display LCD Module | ST7565R | DFSTN Negative Display HTM12864-7-41W-N3S

For different modes and backlight matching effects, please click on the link: LED backlight and LCD color to learn more!

For the related 128x64 dot matrix graphic LCD series, we provide users with different sizes, please contact us for more product recommendations.
