What are the resolutions of 5.0-inch TFT?

The 5.0-inch display screen is of moderate size and has a wide range of applications. For displays of the same size, you can choose the appropriate resolution according to the requirements of specific products. The commonly used resolutions of 5.0-inch displays are 800*480, 720*1280, and 480*854. This chapter introduces the products corresponding to these resolutions for your reference.

5.0 inch TFT series with a resolution of 800*480

5.0 inch TFT LCD display 800x480 dot matrix wide temperature IPS full viewing angle / sunlight readable / TTL interface / capacitive touch / compatible with STM32 / RK

▶ Model: TFT-H050A1SVISTKC40

▶ Type: TFT wide temperature display

▶ Display pixels: 800x480 pixels

▶ Dimensions (mm): 135x85.25x4.75

▶ Display inches: 5.0"

▶ Effective size (mm): 108x64.8

▶ Application: Charging pile, smart device

▶ Viewing angle: IPS (U80/D80/L80/R80)

▶ Brightness: 1500cd/m2

▶ Pin: FPC-40PIN

▶ Interface: TTL 24-bit (RGB Mode)

▶ Special reminder: Anti-static ESD 8KV

▶ Working temperature: -30~80℃

▶ Power supply voltage: 3.3V

▶ Driver chip: ST7262<TFT>, GT911<CTP>

▶ Read more

5" transflective TFT display TN 800x480px sunlight readable RGB interface/touch screen optional

▶ Model: TFT-H050A18SVRJDNN40

▶ Type: TN display

▶ Display pixels: 800x480 Px

▶ Dimensions (mm): 112.20x74.80x3.0

▶ Display inches: 5.0"

▶ Effective size (mm): 108x64.8

▶ Application: STM32/RK series

▶ Viewing angle: Normally White (Trans-Reflective)

▶ Brightness: 50cd/m2

▶ Pin: FPC-40PIN

▶ Interface: RGB

▶ Special reminder: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Power supply voltage: 3.3V

▶ Driver chip: T.B.D

▶ Read more

Model: 5.0 inch TFT color LCD screen/800*480 resolution/full viewing angle IPS technology|high brightness sunlight visible/LVDS interface/TFT-H050A7SVISTKN40

Type: TFT horizontal screen

Display pixels: 800x480

Dimensions (mm): 120.7x75.8x2.9

VA size (mm): 5.0

AA size (mm): 5.0

Effective size mm: 108.0x64.80

Application: Instruments, meters

Viewing angle: Full View

Backlight/brightness: 1000cd/m2

Pin: FPC-40PIN

Interface mode: LVDS

Special instructions: Anti-static ESD 8KV

Working temperature: -30~80℃

Supply voltage: 3.3V

Driver chip: ST7262

Read more

Model: 5-inch ultra-bright TFT color LCD screen/800*480 resolution/visible in sunlight/RGB interface/TFT-H050B10SVISTKN50/FPC-H050B10-V0

Type: TFT horizontal display

Display pixels: 800x480

Dimensions (mm): 120.70x75.80x2.90

VA size (mm): 5.0

AA size (mm): 5.0

Effective size mm: 108.0x64.80

Application: industrial control equipment, vehicle instrument, ultra-wide temperature display

Viewing angle: Full View

Backlight/brightness: 1000cd/m2

Pin: FPC-50PIN

Interface mode: RGB

Special instructions: ultra-high brightness, wide temperature

Working temperature: -30~80℃

Supply voltage: 3.3V

Driver chip: ST7262

Read more

5.0 inch TFT LCD display with panel 800x480 dot matrix LVDS interface IPS full viewing angle wide temperature sunlight readable ST762 compatible with Android optional touch screen

▶ Model: HTM-H050A7-LVDS-C03

▶ Type: TFT module with board

▶ Display pixels: 800x480 dot matrix

▶ Dimensions (mm): 148.0x107.0x6.5

▶ Display inches: 5.0"

▶ AA size (mm): 108.0x64.8

▶ Application: Linux system board/industrial control

 motherboard/RK motherboard

▶ Viewing angle: IPS full viewing angle

▶ Backlight/brightness: 500cd/M2

▶ Pins: 30pin

▶ Interface mode: LVDS

▶ Special instructions: Anti-static ESD 8KV

▶ Working temperature: -30~80℃

▶ Power supply voltage: 5.0V

▶ Driver chip: ST7262

▶ Read more

5.0 inch TFT display with a resolution of 720*1280

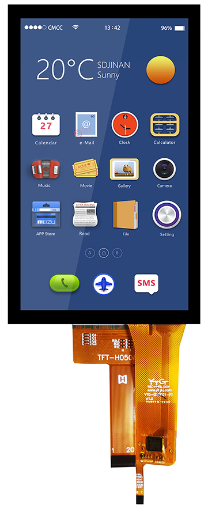

Model: 5.0-inch TFT color screen | HD 720*1280 resolution | Full viewing angle IPS technology | MIPI interface | TFT-H050C3HDIIL4C39

Type: TFT vertical screen

Display pixels: 720x1280

Dimensions (mm): 64.7x118.8x1.71

VA size (mm): 5.0

AA size (mm): 5.0

Effective size mm: 62.10x110.4

Application: handheld devices

Viewing angle: full viewing angle

Backlight/brightness: 400cd/m2

Pin: 34pin

Interface mode: MIPI

Special instructions: anti-static ESD 8KV

Operating temperature: -20~70

Supply voltage: 5.0V

Driver chip: ILI9881

Read more

5.0 inch display screen with a resolution of 480*854 TFT series

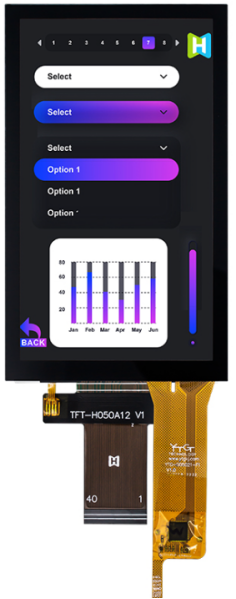

5-inch IPS full viewing angle 480x854 resolution wide temperature capacitive touch TFT display ST7701S

Suitable for industrial computers

▶ Model: TFT-H050A12FWIST4C40

▶ Product type: TFT vertical screen

▶ Aspect ratio: 6:10

▶ Display content: 480x854

▶ Dimensions (mm): 72x122.25x4.15

▶ Viewing area window size (mm): 5.0

▶ Display size (mm): 5.0

▶ Effective size mm: 61.63x109.65

▶ Product application: handheld device

▶ Viewing angle: full viewing angle

▶ Backlight type or brightness: 400cd/m2

▶ Connection method PIN number: 40pin

▶ Interface method: RGB+SPI

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -20~70℃

▶ Supply voltage: 3.3V

▶ Driver chip model: ST7701S

▶ Read more

Model: 5-inch TFT color screen /480*854 resolution /full viewing angle IPS technology /MIPI interface /

Model: TFT-H050A11FWIST4C20

Type: TFT vertical screen

Display pixels: 480x854

Dimensions (mm): 72.00x122.245x4.15

VA size (mm): 5.0

AA size (mm): 5.0

Effective size mm: 61.6320x109.6536

Application: Outdoor instrumentation

Viewing angle: full viewing angle

Backlight/brightness: 500cd/m2

Pin: 20+6PIN

Interface mode: MIPI

Special instructions: with CTP capacitive touch chip GT911

Operating temperature: -20~70℃

Supply voltage: 3.3V

Driver chip: ST7701

Read more

Model: 5.0 inch IPS full viewing angle 480x854 resolution wide temperature TFT display ST7701S suitable for industrial computers TFT-H050A12FWIST5N40

Type: TFT vertical screen

Display pixels: 480x854

Dimensions (mm): 64.76x118.7

VA size (mm): 5.0

AA size (mm): 5.0

Effective size mm: 61.63x109.65

Application: automotive, medical, industrial control

Viewing angle: full viewing angle

Backlight/brightness: 500cd/m2

Pin: 40pin

Interface mode: SPI

Special instructions: anti-static ESD 8KV

Operating temperature: -20~70℃

Supply voltage: 3.3V

Driver chip: ST7701S

Read more

For more 5.0-inch related products, please contact us directly!
