5.0-inch 800x480 dot matrix TFT LCD display module URAT Smart serial port screen Capacitive touch screen HMI IPS Sunlight readable Compatible with Raspberry Pi
Core advantages:
High-definition display: Adopts 5.0-inch TFT LCD screen with a resolution of 800×480 (RGB pixel arrangement), delicate and realistic pictures, accurate color reproduction (±0.3×RGB tolerance control), meeting the needs of multiple scenarios such as industry, medical care, and consumer electronics.
Full viewing angle experience: Supports 180° wide viewing angle (180° up and down/left and right), ensuring that there is no color cast or brightness attenuation when viewed from any angle, suitable for public display devices and multi-person collaboration scenarios.
Durable anti-image retention: Built-in anti-image retention technology, it is recommended to dynamically refresh the content (interval <2 minutes) or use a black/dynamic screen saver to significantly extend the screen life and avoid static image burns.

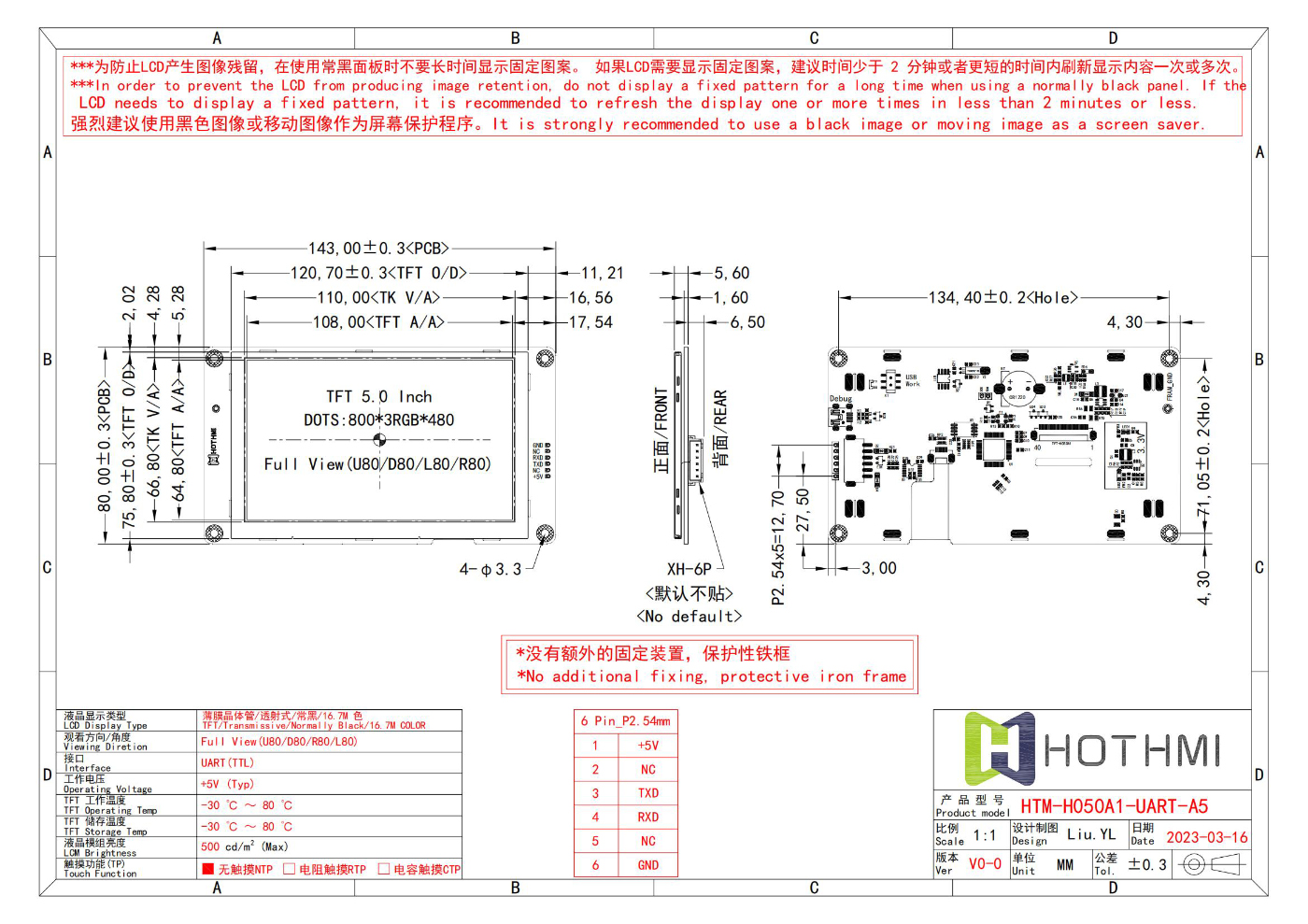

Precise performance: Strictly calibrated parameters (such as 120.70±0.3×TFT O/D, 134.40±0.8×Hale) ensure fast response speed and high contrast, suitable for industrial control equipment with high-speed refresh requirements.
Technical specifications at a glance:
Panel type: Normally Black, low power design.
Dot pitch and pixel: 3RGB sub-pixel arrangement, 480 lines of vertical resolution, sharp display effect.
Flexible adaptation: Supports multiple driver configurations (such as XH GP interface), default non-mounting design (customizable), easy to integrate into various hardware systems.
Environmental compatibility: Wide temperature operating range (-20℃~70℃), passed multiple reliability tests (such as TK V/A, TFT A/B parameter verification).
Usage suggestions:
When displaying static images for a long time, it is recommended to enable the automatic refresh function (interval ≤2 minutes) or use a dynamic screen saver to protect the screen.
Give priority to black background or dynamic content to reduce the risk of residual images and improve device stability.
Applicable fields:
Industrial control panels, medical instruments, car navigation, smart home terminals, portable devices, etc.
