5-inch ESP32 TFT LCD Module High Brightness HMI Display

HTM-H050A29-ESP-StdRGB | 5-inch ESP32 TFT LCD Module High Brightness HMI Display

The 5-inch ESP32 TFT LCD high-brightness HMI display module is an intelligent display terminal that deeply integrates an ultra-high brightness industrial-grade LCD screen with a powerful ESP32 main control solution. Based on a 5.0-inch professional display panel (model TFT-H050A29SVIGHGN40), this module integrates an ESP32 dual-core processor driver board and is designed for outdoor equipment, industrial control, automotive instruments, and IoT HMI applications. It provides excellent visual performance and a smooth interactive experience even under strong sunlight and harsh temperatures.

Core Features

In terms of display performance, this module inherits and fully leverages the superior characteristics of the original display panel. Its core advantage lies in its screen brightness of up to 1500 cd/m², approximately five times the brightness of a typical flat panel screen. This ensures clear readability even under ambient light of 100,000 lux in direct midday sunlight. Combined with IPS full-viewing-angle technology, there is no color shift or brightness attenuation when viewed from any angle. Combined with an 800x480 pixel resolution, it delivers clear and detailed color images. Meanwhile, the module continues the industrial-grade reliability design, supporting a wide operating temperature range from -30°C to 80°C, and features built-in 8KV electrostatic discharge (ESD) protection to effectively resist ESD interference in industrial environments and vehicle cabins. Its 3.3V low-voltage power supply design further reduces system power consumption and heat generation.

At the drive and control level, the module is equipped with an Espressif ESP32-S3 dual-core processor with a clock speed of up to 240MHz and large-capacity storage, enabling smooth operation of embedded graphical interfaces such as LVGL, and handling complex interactive logic with ease. Its integrated 2.4GHz Wi-Fi and Bluetooth Low Energy functionality allow the device to easily connect to IoT cloud platforms for remote data monitoring and firmware upgrades. To meet diverse functional expansion needs, the driver board is also equipped with a USB Type-C interface for power supply and debugging, and provides abundant communication interfaces such as universal asynchronous transceiver, serial peripheral interfaces, and I2C for easy connection to various sensors and peripheral modules.

Application Scenarios

With the aforementioned characteristics, this module demonstrates significant value in numerous application scenarios. In the field of outdoor smart devices, such as parking timers, electric vehicle charging stations, and bus stop signs, its ultra-high brightness ensures all-weather visibility, eliminating the need for additional sunshades and reducing the overall system cost. In industrial control and heavy machinery applications, such as forklift instruments and excavator monitoring screens, its wide operating temperature range and full-view display ensure that operators can read critical data instantly and accurately even in extreme temperatures and complex operating positions. For automotive and marine displays, such as ship navigation dashboards or off-road vehicle center console screens, it not only effectively combats strong glare from water surfaces and windshields, but its UV-resistant design also enhances long-term durability in outdoor environments.

Development Support and Customization Services

To help customers quickly bring their products to market, we provide comprehensive development support. The module is compatible with mainstream embedded development environments and provides low-level drivers and sample programs adapted to the LVGL graphics library, significantly shortening the development cycle. Furthermore, we support in-depth customization based on specific project needs, including optional capacitive or resistive touchscreens with optical bonding, adjustments to interface definitions and cable specifications, and providing anti-reflective and anti-glare cover glass surface treatments. In summary, this 5-inch ESP32 TFT LCD high-brightness HMI display module combines outdoor visibility, industrial durability, and intelligent processing capabilities, providing a one-stop, reliable display and control solution for your smart terminal products.

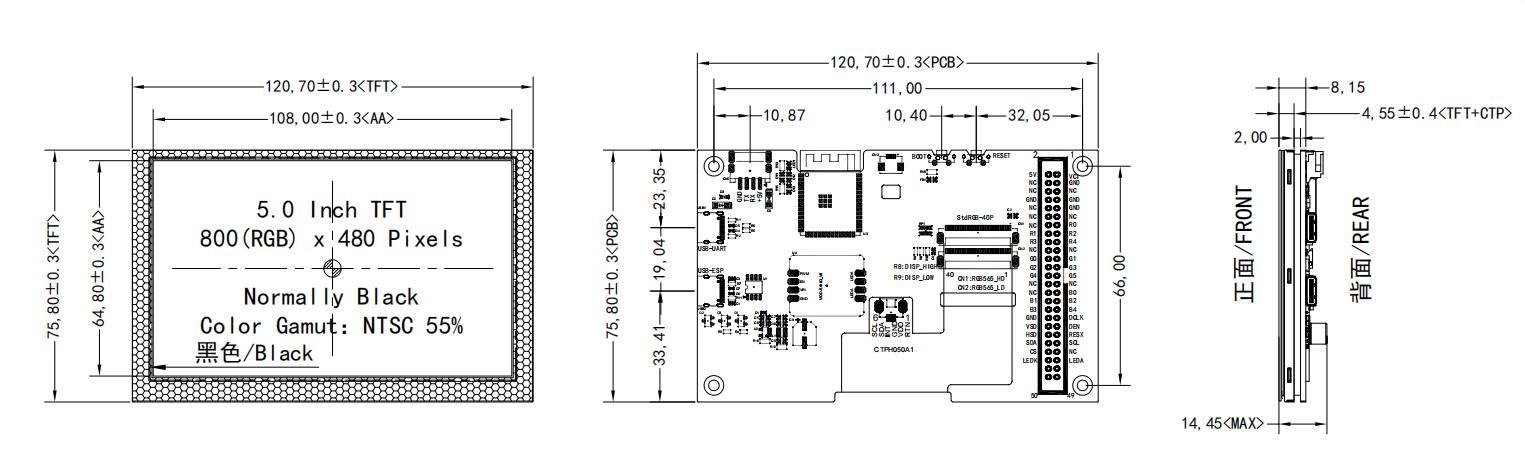

Specification of the 5-inch ESP32 TFT LCD Module High Brightness HMI Display
