18.5" TFT Display with Capacitive Touch Screen | LVDS Interface

18.5" TFT Display with Capacitive Touch Screen | LVDS Interface | 1920x1080FHD

▶ Model: TFT-H185E01FHIYZ8C30

▶ Type: 18.5" TFT Display
▶ Display pixels: 1920x1080
▶ Dimensions (mm): 450.0x272.0x5.0
▶ Effective size (mm): 408.96x230.04
▶ Application: Industrial controller
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 850cd/m2
▶ Interface: LVDS
▶ Pin: 30 PIN
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ILI2510<CTP>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back No

Product Description
Specification
Attributes

TFT-H185E01FHIYZ8C30 | 18.5" TFT Display with Capacitive Touch Screen | LVDS Interface | 1920x1080FHD | IPS Sunlight Readable TFT Screen
This 18.5-inch 1920x1080TFT capacitive touch display enhances your visual and interactive experience with precise specifications and outstanding performance.

This product adopts a normally black TFT panel, with a 72% NTSC color gamut and 850 cd/m ² brightness, which can present clear and sharp high contrast images even in bright environments. Its anti glare (AG) surface treatment can minimize reflection and provide a comfortable viewing experience. This display screen can operate reliably within a temperature range of -20 ° C to+70 ° C, and supports power inputs of 5.0V ± 0.5V (VCI) and 12.0V ± 0.5V (VLED). It also integrates capacitive touch functionality through a USB interface for seamless interaction. Chemical strengthened glass, 3M VHB adhesive installation, and industrial grade connectors (CN1_UJU IS100-L30O-C23/CN2-CIO114M1HR0-NH) ensure its durability, while the LVDS 48 bit interface supports high-speed data transmission.

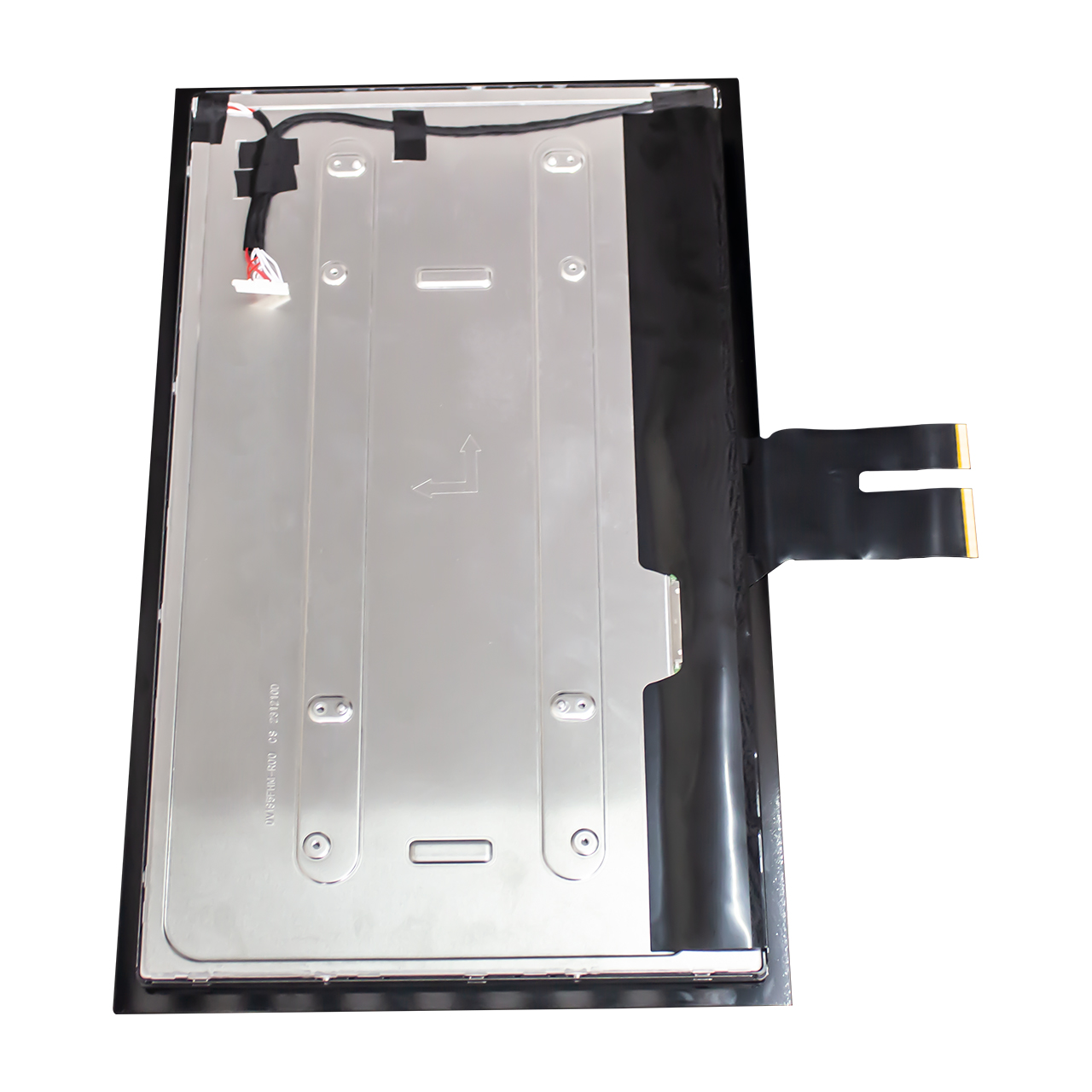

This 18.5 TFT touch screen is a capacitive touch mode controlled by the ILI2510 chip, with multi touch and sensitive touch experience, providing users with a unique and smooth experience. For touch screen panels, we also offer customized services where users can customize printed fonts, graphics, colors, or customize panels of different sizes with rounded corners according to their actual needs. This TFT and the main control board transmit data through FPC, providing a very convenient way for assembling and disassembling modules. We can also customize wiring according to user needs.

This 18.5-inch 1920x1080TFT capacitive touch display is perfect for self-service terminals, medical equipment, and control systems. It combines rigorous technology with user centered excellence - every parameter is carefully designed to enhance your hardware experience.

Datasheet for Touch Panel,Controller↓

Name	Date	Size

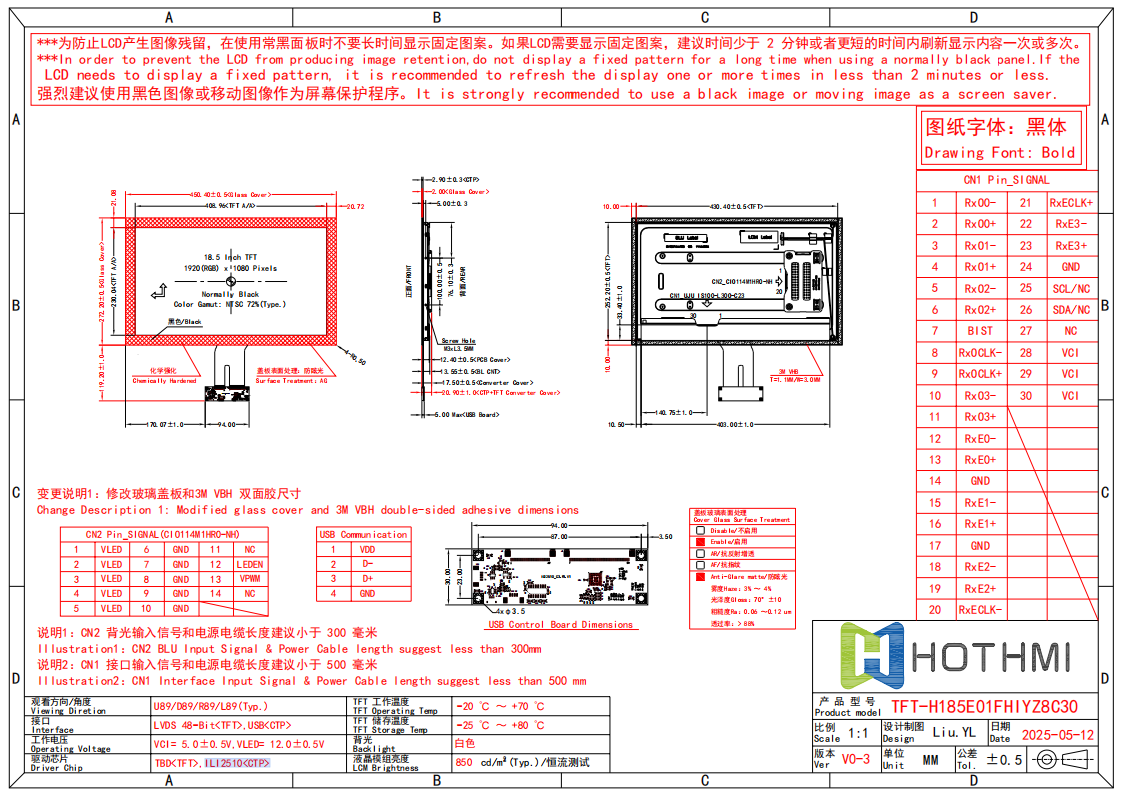

18.5" TFT Display Specification-TFT-H185E01FHIYZ8C30	July 07, 2025	199.62KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen add-ons: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H185E01FHIYZ8C30
Diagonal size	18.5”	Inch
Resolution	1920x1080	Dot
Dimensions	450.0x272.0x5.0	mm
Active area (AA)	408.96x230.04	mm
LCD type	18.5” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2:1
Backlight type	LED white
TFT driver IC	-
Brightness	850cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-25~80℃	℃
