3 Inch TFT LCD Display With Capacitive Touchscreen | RGB Interface ST7701 Controller

3 Inch TFT LCD Display With Capacitive Touchscreen | RGB Interface ST7701 Controller

▶ Model: TFT-H030A10FWIST3C40

▶ Type: 3-inch TFT LCD Display
▶ Display Pixels: 480x854

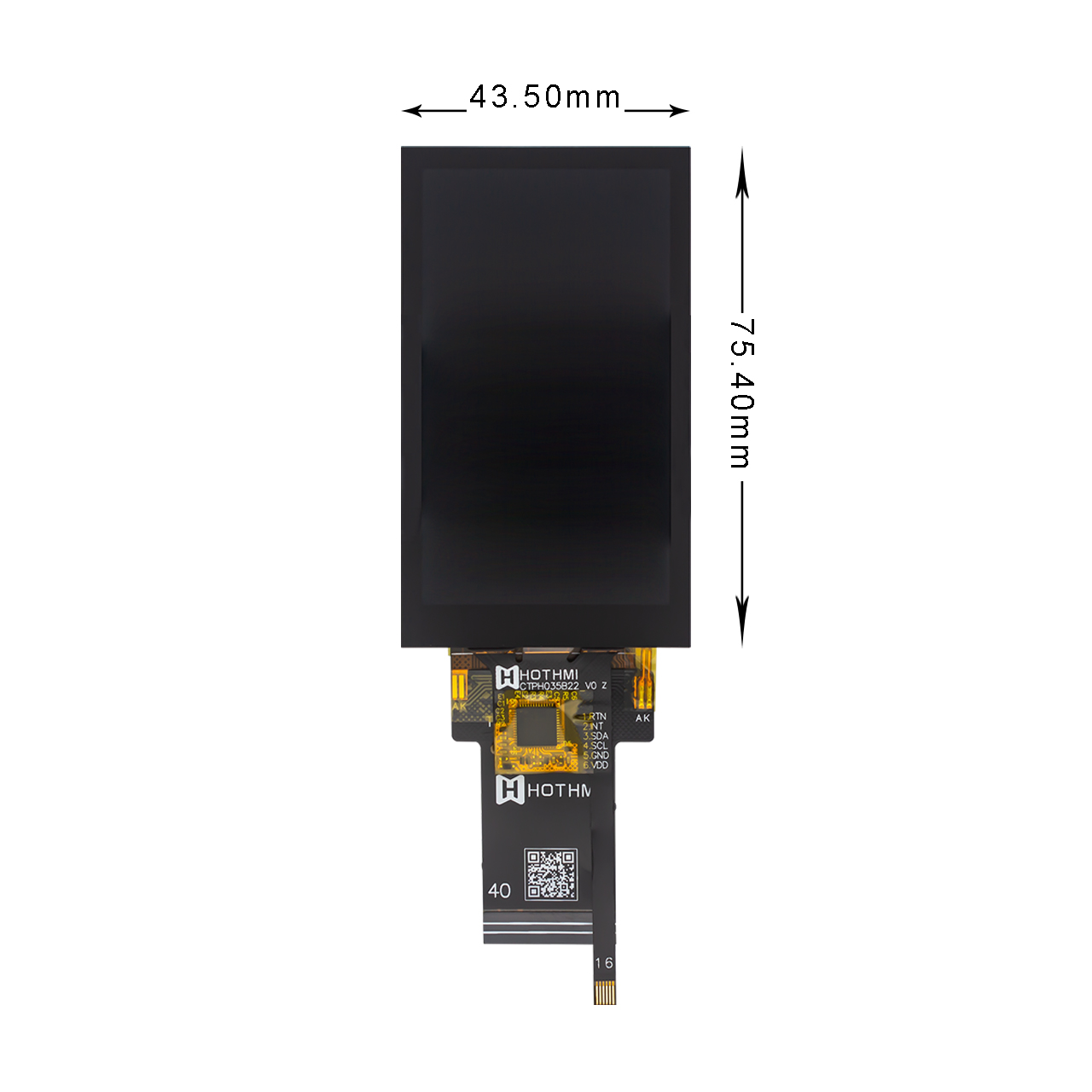

▶ Dimensions (mm): 43.5x75.4x3.8
▶ Active Dimensions (mm): 36.72x65.28
▶ Application: Industrial Controllers
▶ Viewing Angle: IPS Full Viewing Angle
▶ Brightness: 300cd/m²
▶ Interface: RGB
▶ Pinout: 40
▶ Special Instructions: ESD 8KV
▶ Operating Temperature: -30°C to 80°C
▶ Driver Chip：ST7701
▶ Supply Voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

TFT-H030A10FWIST3C40 | 3 Inch TFT LCD Display With Capacitive Touchscreen | RGB Interface ST7701 Controller

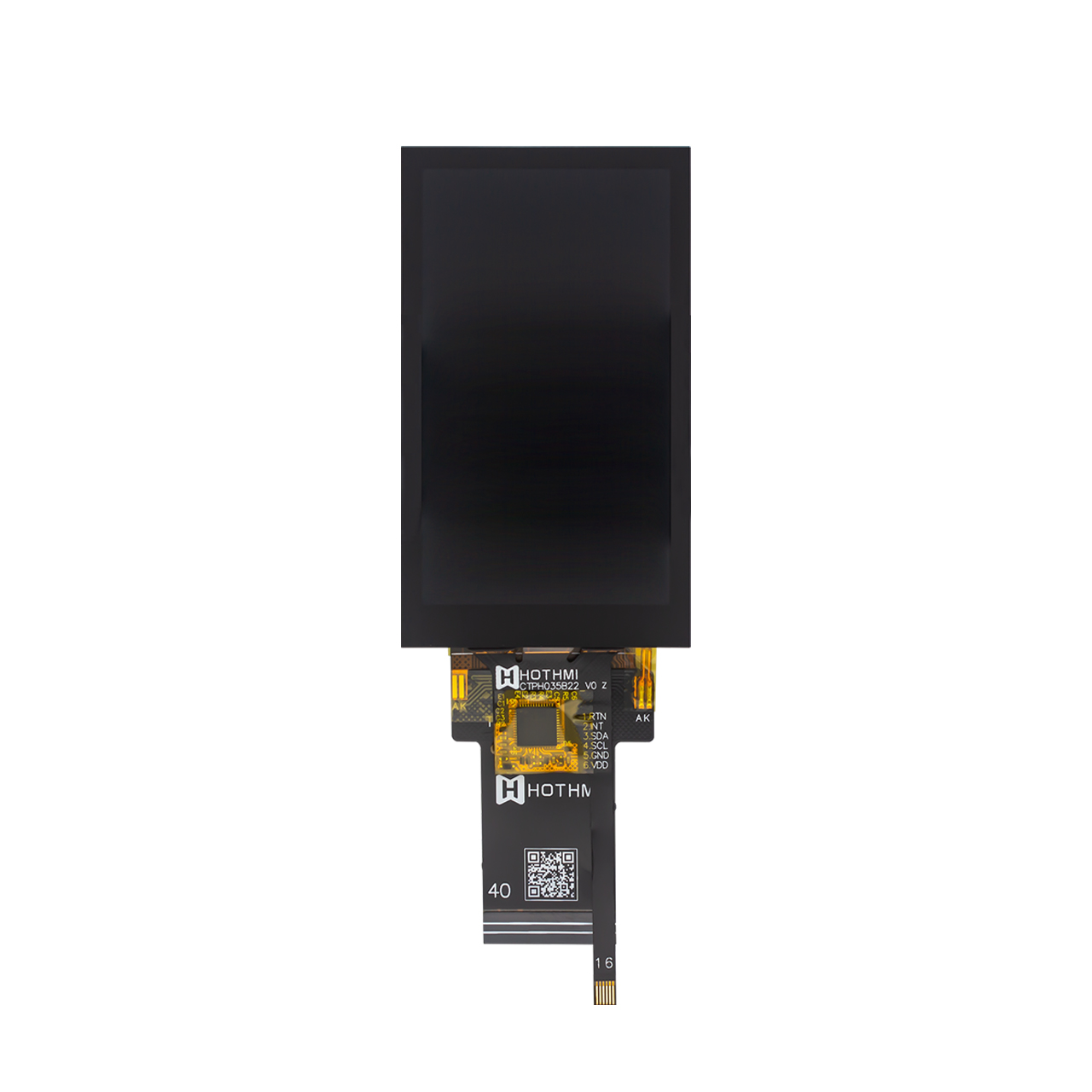

This 3-inch, 480x854 TFT LCD display features exquisitely detailed pixels, capturing every detail within its 3-inch footprint. The IPS (Full Viewing Angle) and moderate brightness ensure this 3.0-inch TFT LCD delivers a high-quality display.

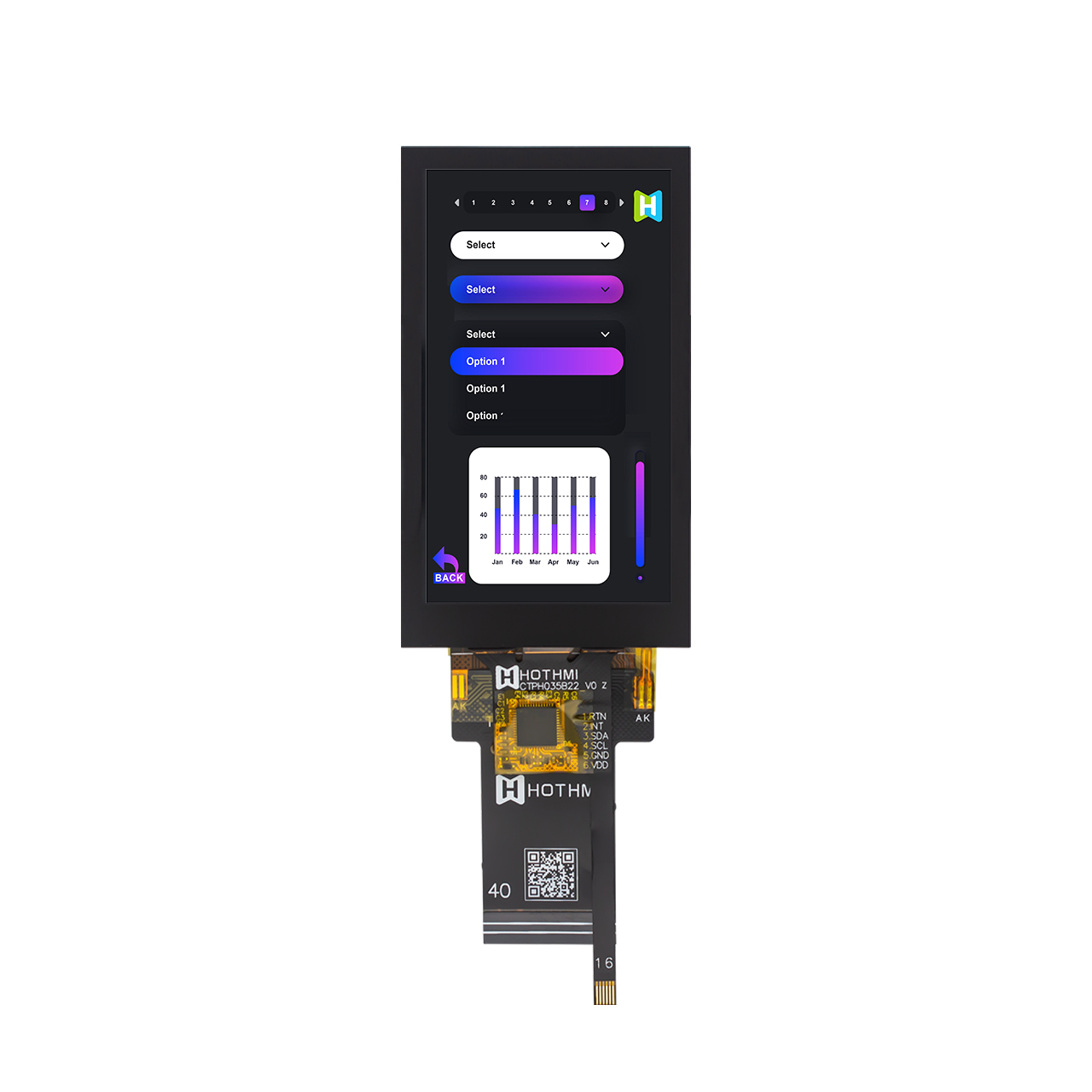

This model features capacitive touch, and the GT911 touch chip ensures a silky-smooth feel when your fingertips glide across the screen. Advanced capacitive touch technology ensures swift and precise responses to taps, swipes, and pinch-to-zoom actions. Every action is accompanied by precise feedback, with zero lag and false touches. The ST7701 controller is compatible with development platforms such as Arduino and LVGL.

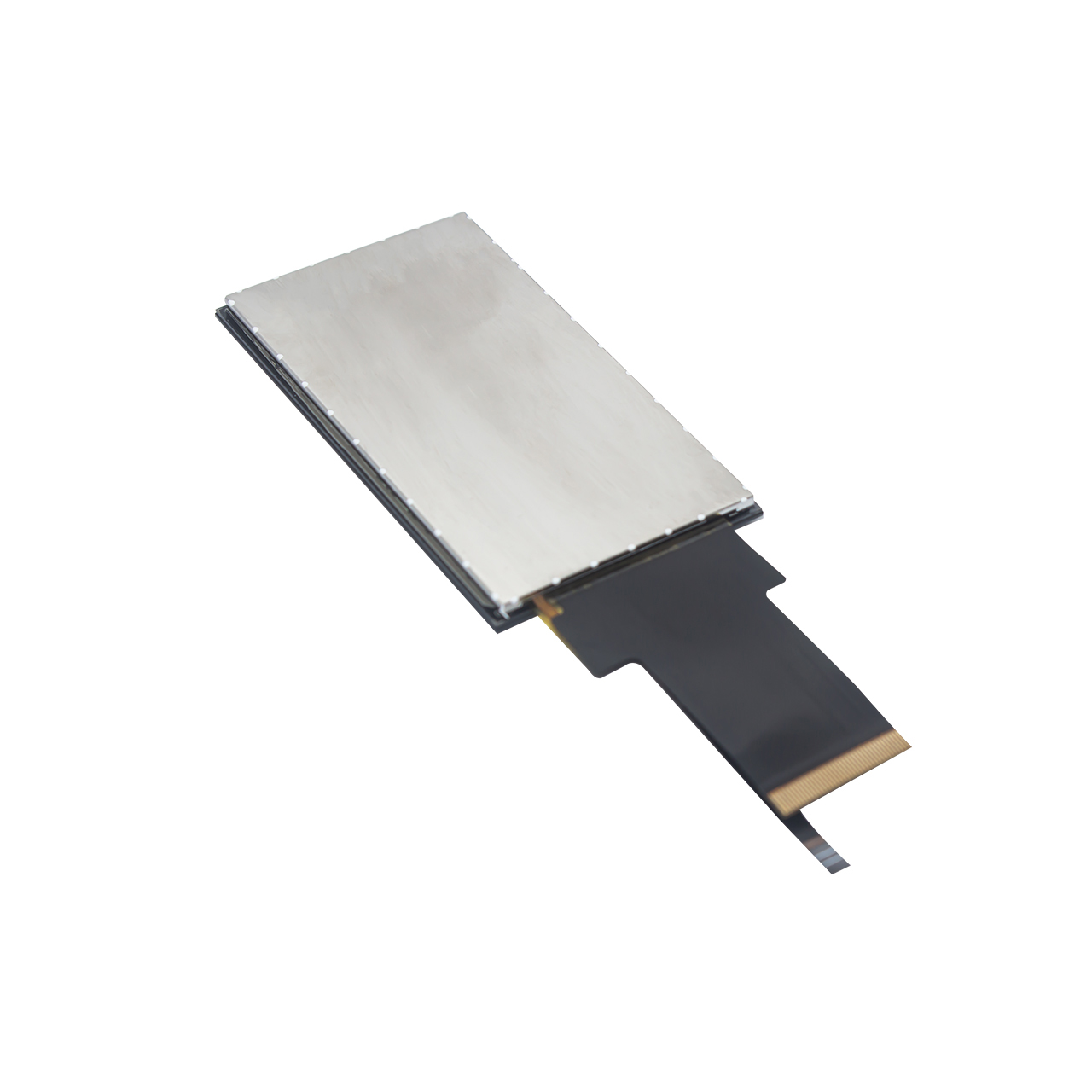

The transition between the screen and the frame has been meticulously calculated. The slim yet sturdy "plastic-iron integrated" construction not only provides a solid and reliable grip, but also ensures smooth and responsive operation even at the edges of the touch area. Both the display and the touch panel utilize flexible FPC cables, allowing users to easily connect to the driver board, making this a developer-friendly solution.

The TFT-H030A10FWIST3C40 capacitive touch screen, whether integrated into a compact portable device, a professional industrial control interface, or the control center of a smart home, quietly elevates every interaction with its reliable quality, comfortable appearance, and responsive feedback, making even the most cold technology accessible, warm, and vivid. The non-touch version of the same series is TFT-H030A10FWIST3N40.

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

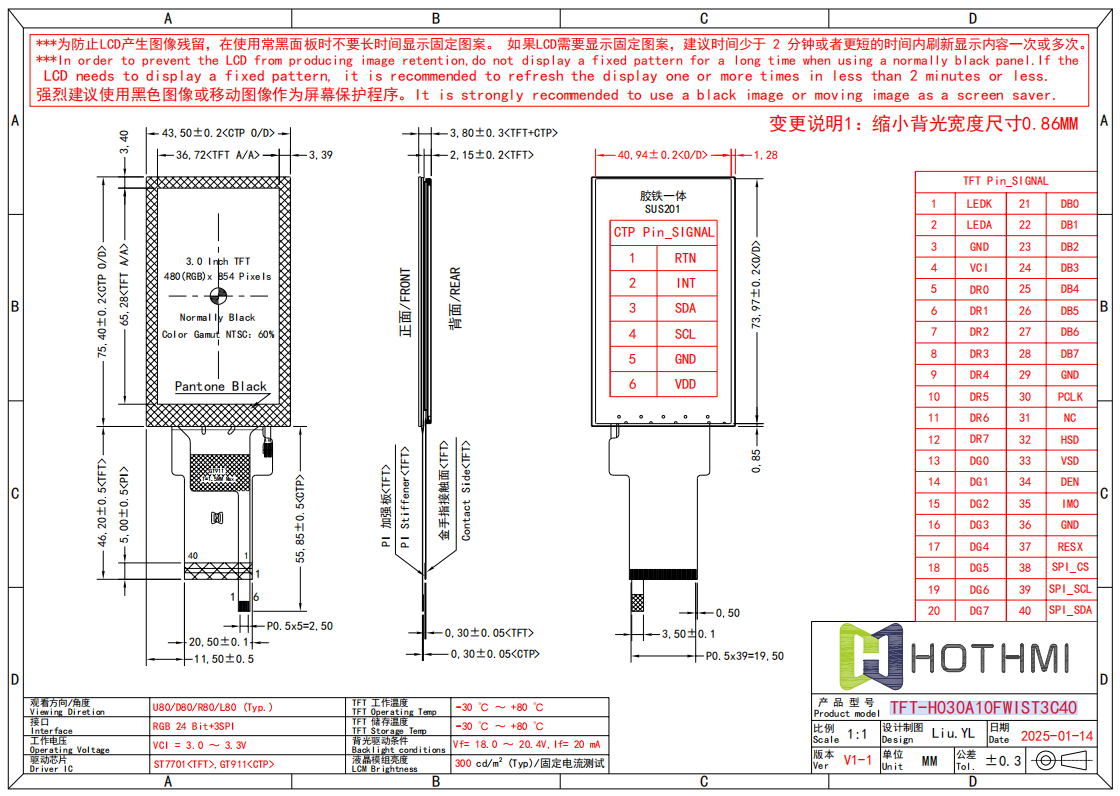

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H030A10FWIST3C40
Diagonal size	3.0”	Inch
Resolution	480x854	Dot
Dimensions	43.5x75.4x3.8	mm
Active area (AA)	36.72x65.28	mm
LCD type	3.0” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2：3
Backlight type	LED white
TFT driver IC	ST7701
Brightness	300cd/m2	cd/m2
Operating temperature	-30~80℃	℃
Storage temperature	-30~80℃	℃
