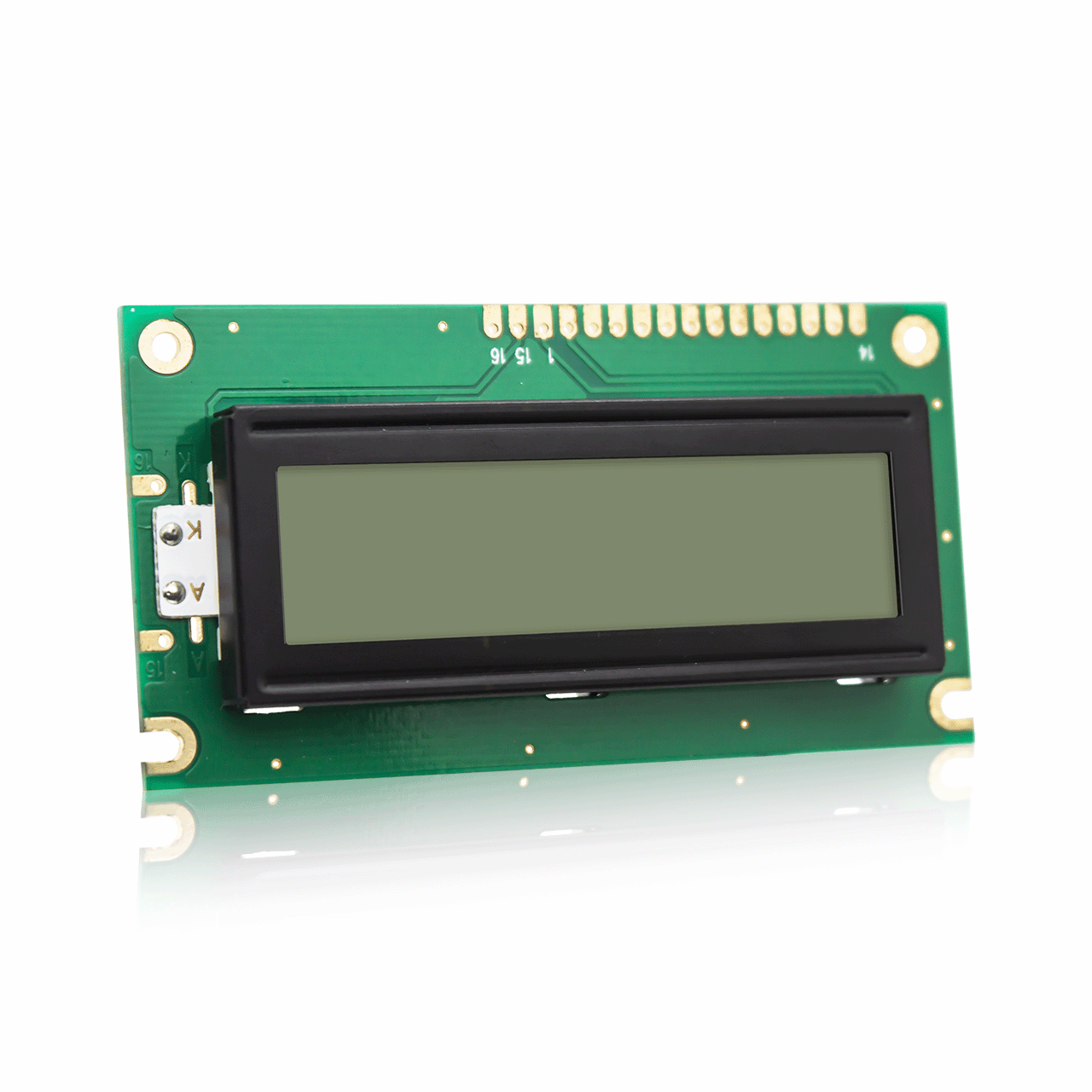

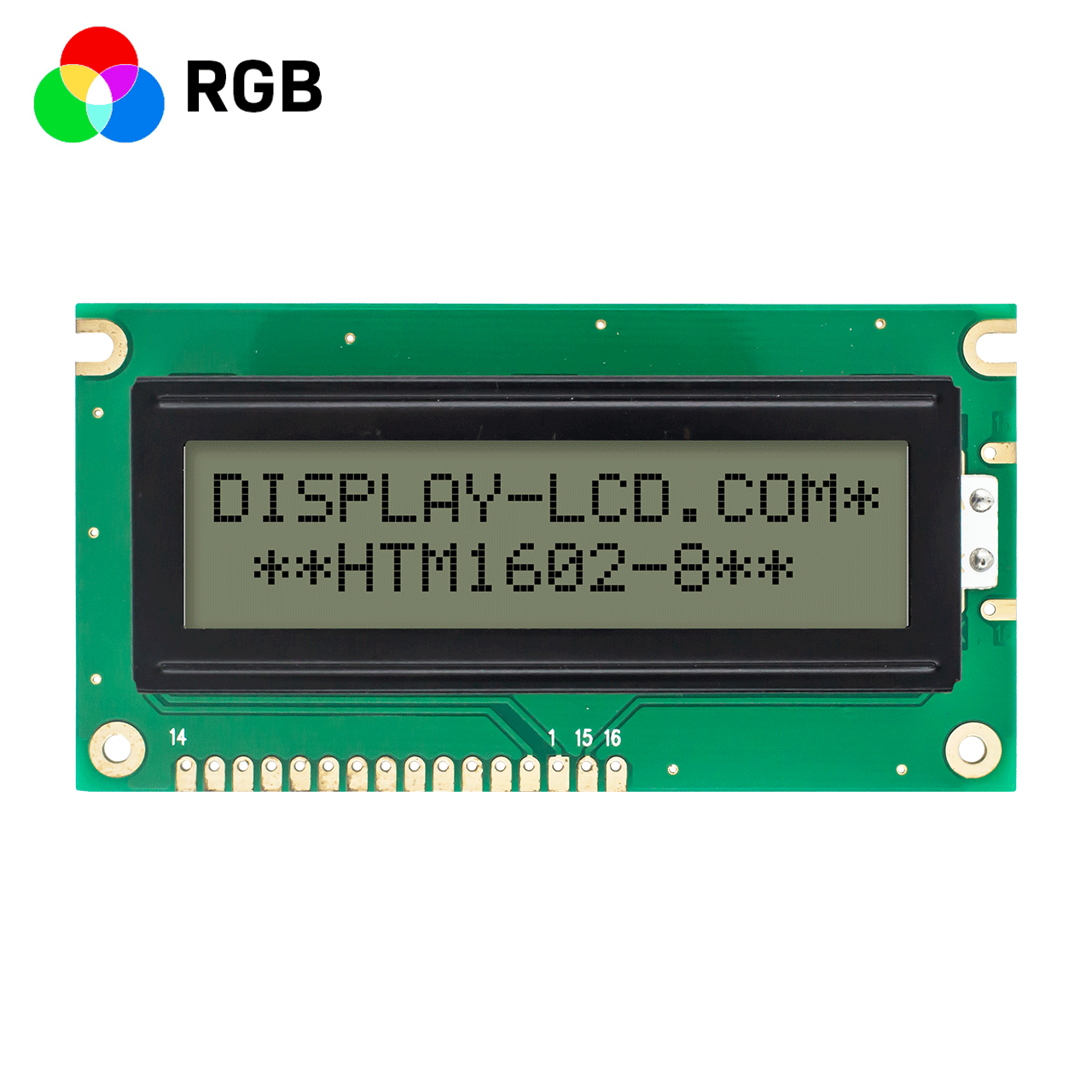

  • HTM1602-8-35S-A5P | 2x16 Character Display | Transflective LCD | RGB LED Backlight | FSTN (+) Positive Display

    HOTHMI 2x16 LCD display shows up to 32 characters as two rows each with sixteen characters of dark pixels on a light gray background.The RGB display includes three backlight colors built into each display, which enables you to choose from a red, green or a blue backlight color.You can also mix the intensities of those colors to create new custom colors.

    This transflective LCD Display ensures excellent visibility with ambient light or in low light conditions with the built-in LED backlight. It features a wide operating temperature range from -20 to 70 degrees Celsius. This Arduino compatible HTM1602-8-35S-A5P display has an optimal view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.


    Connector Customization:

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

    PCB Modifications:

    Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

    Backlight color customization:

    The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

    Font library customization:

    Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

    Cable Customization:

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

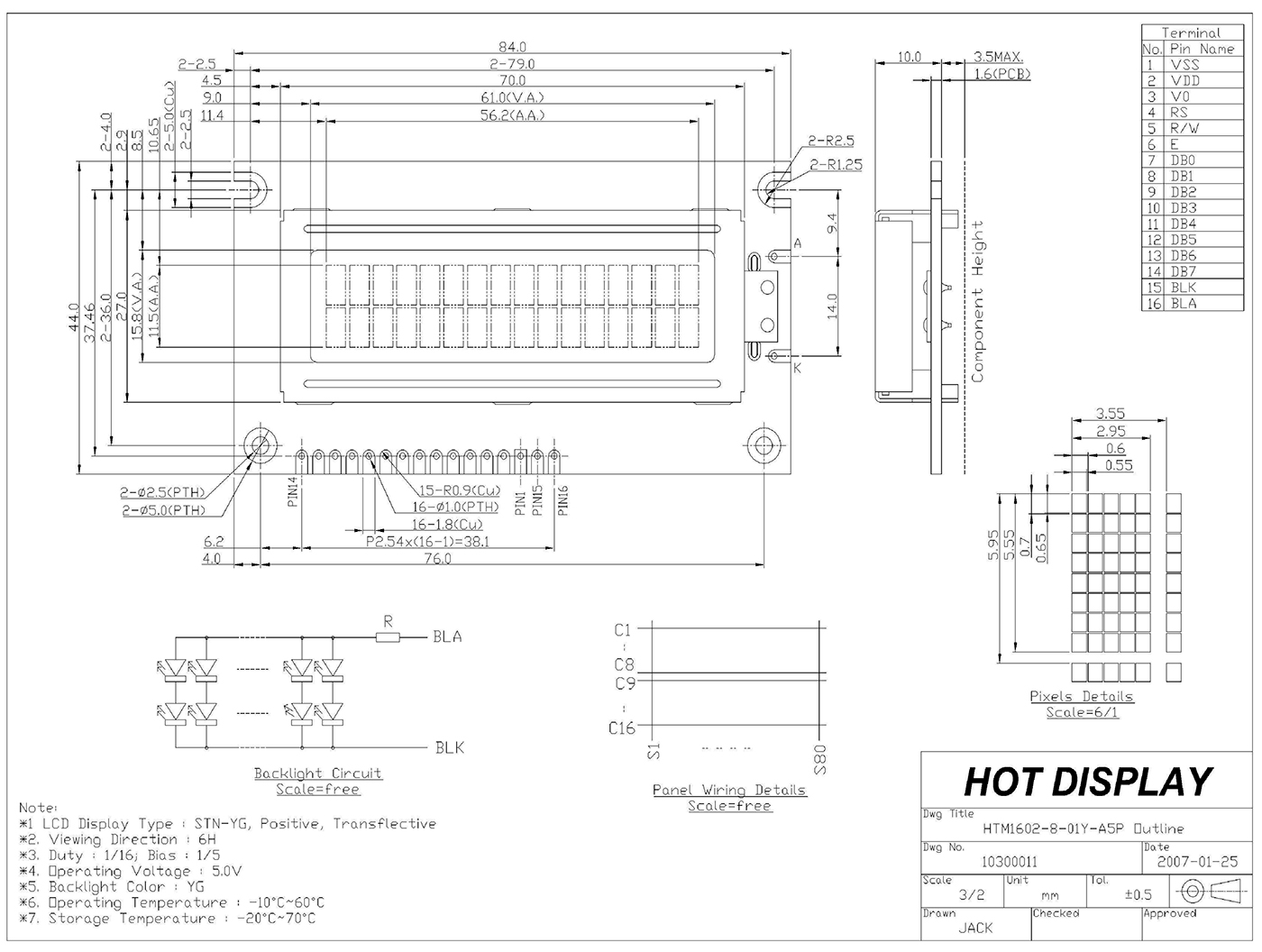

  • 1602-8.jpg

  • project

    Parameter Description

    unit

    model

    HTM-1602-8-35S-A5P


    Character display line

    16x2 characters

    dots

    Module Size

    84.0x44.0x13.5

    mm

    VA size

    61.0 (W) x 15.8 (H)

    mm

    Effective (AA) area

    56.2x11.5

    mm

    Point (Pixel) Size

    0.55 x 0.65mm

    mm

    Pixel spacing

    0.6 x 0.7

    mm

    IC drive

    ST7066U driver


    supply voltage

    5V

    V

    Backlight

    RGB backlight


    mode

    FSTN+Positive


    Drive mode

    1/16 duty cycle


    type

    Character LCD module


    characteristic

    Semi transparent reflective polarizer
